Ford Mustang Thermostat Replacement

ID: 100601

Description:

Steps:

1. Make sure the car is turned off.

2. Take the cold air intake out as a whole.

3. The second picture is what it should look like once you remove the cold air intake. The thermostat is located by the blue box.

4. When you remove the hose, make sure and keep it tilted upright so that you don't leak any antifreeze. The second image shows how you should do this.

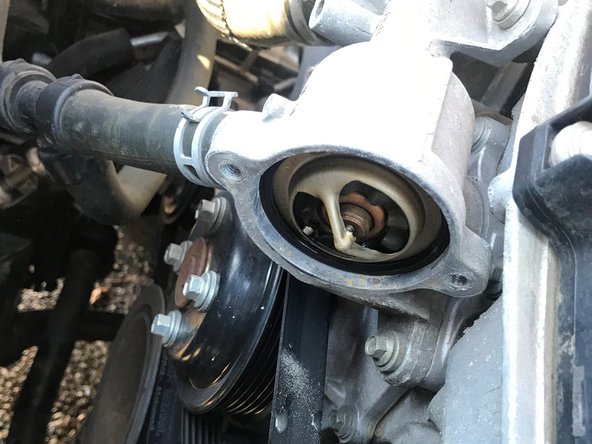

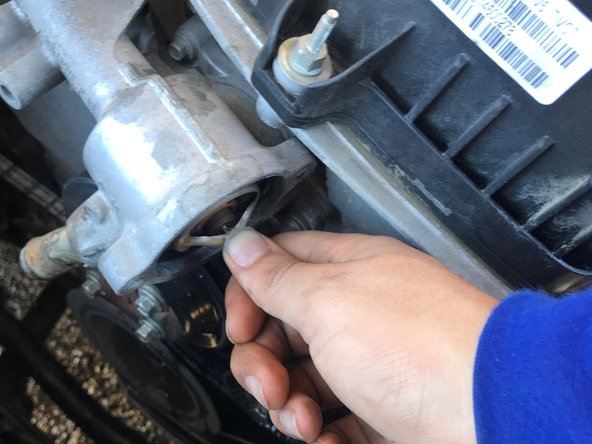

5. Remove the housing cover to see the thermostat. The second image shows this.

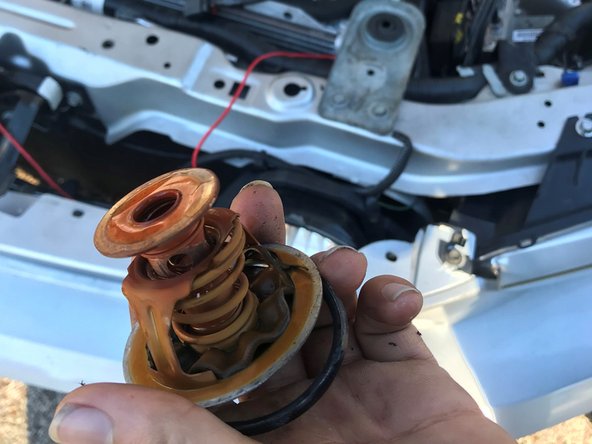

6. The second picture shows the old thermostat after being taken out of the housing.

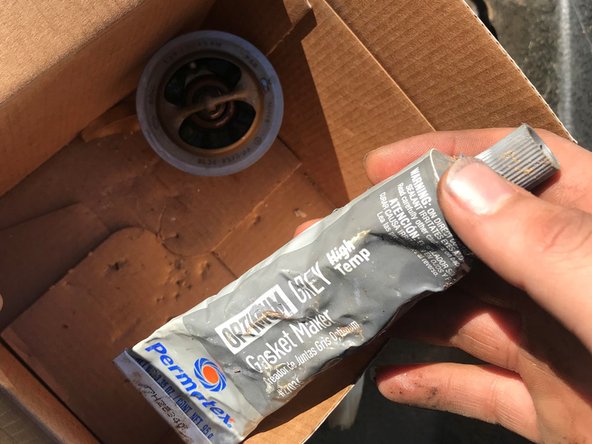

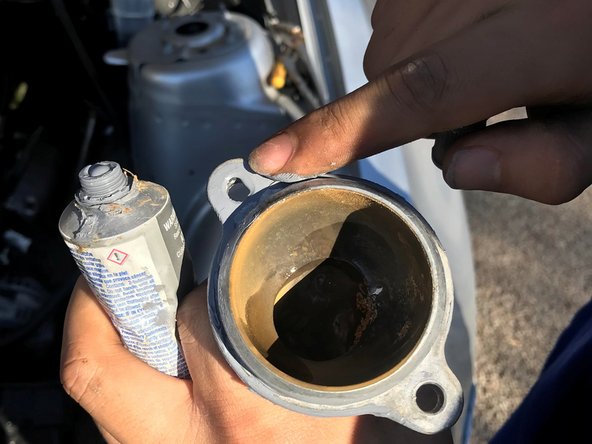

7. The pictures show specifically where to apply the sealant.

8. Note that if any antifreeze leaked throughout the process of replacing the thermostat, put more antifreeze in the car after you reassemble everything back to normal.
