Dell Alienware M14x Battery Pack Replacement

ID: 105251

Description: In this guide, we will show you how to remove...

Steps:

1. WARNING: Before working inside your computer, read the safety information that shipped with your computer.
2. CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

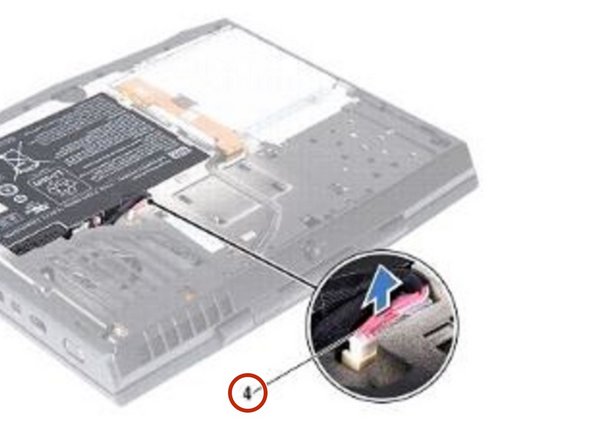

3. Disconnect the battery-pack cable from the connector on the system board.

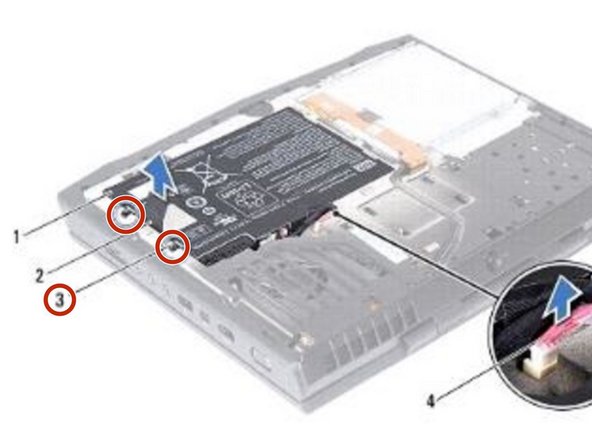

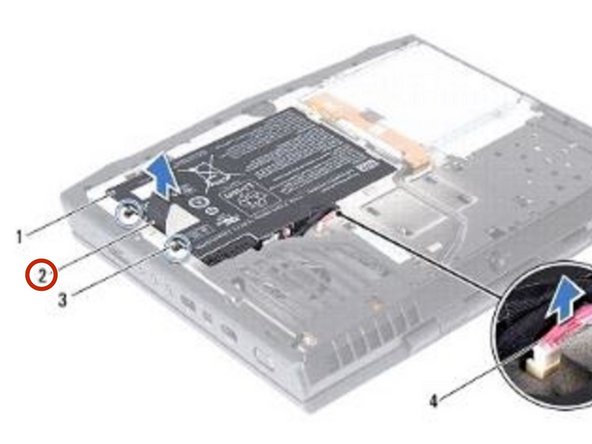

4. Loosen the two captive screws that secure the battery pack to the computer base.

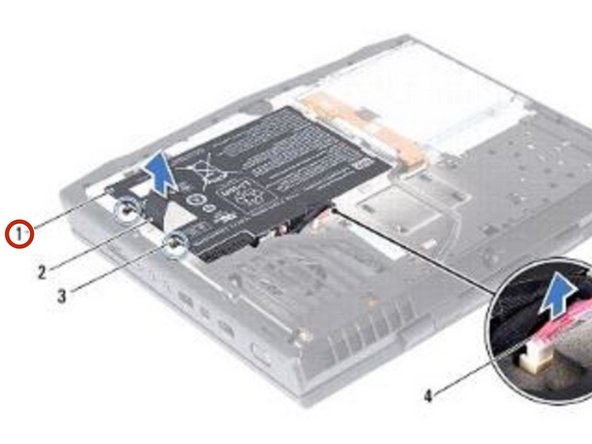

5. Using the pull-tab, lift the battery pack off the computer base.

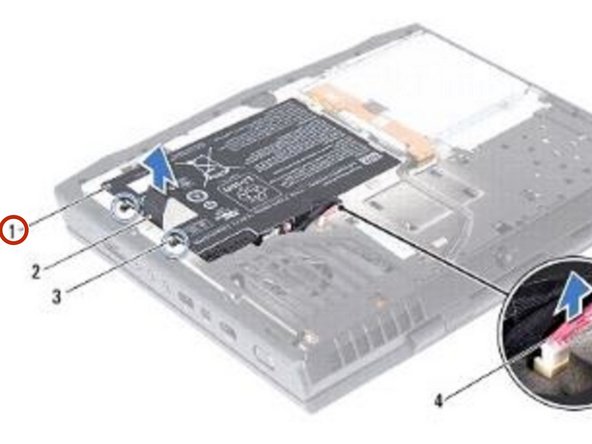

6. Place the NEW battery pack in the battery bay and tighten the two captive screws that secure the battery pack to the computer base.

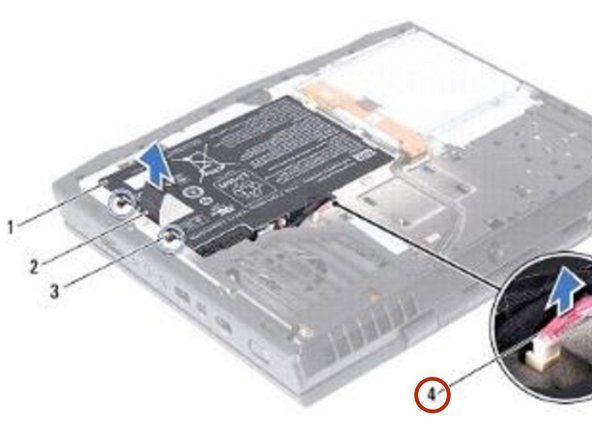

7. Connect the battery-pack cable to the connector on the system board.
