iPod Touch 4th Generation screen Replacement

ID: 106680

Description: Click here for the most up-to-date guide for...

Steps:

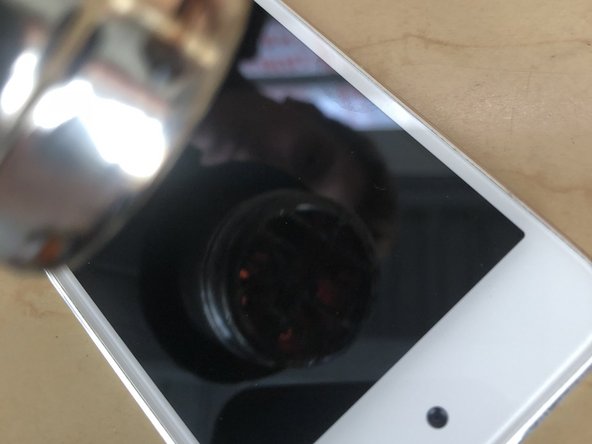

1. with a heat gun 3 to 5 inches away on high heat up the glue the screen is held in with
2. when holding wear gloves or a thick cloth it will be very HOT
3. use a blade to separate from the casing

4. with an blade slice the black strips on the metal plat from the casing

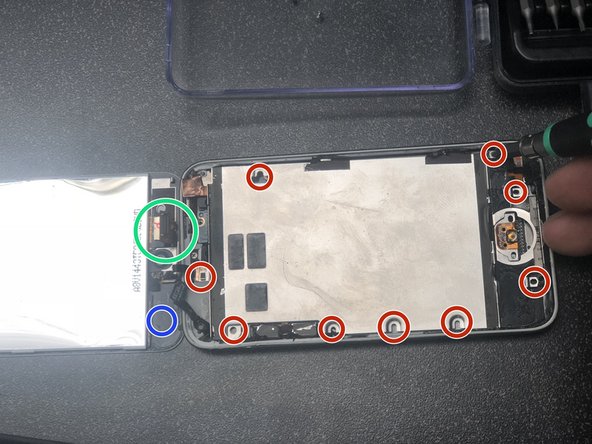

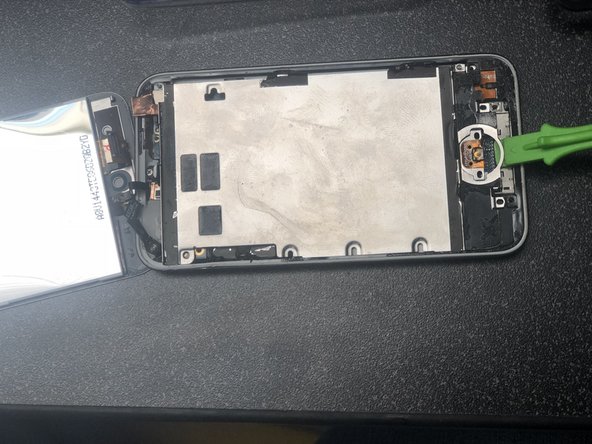

5. take off all visible screws ALL make sure you take off all screws then with a plastic tool lift up the metal plate don t be shy use some force they are circled in red

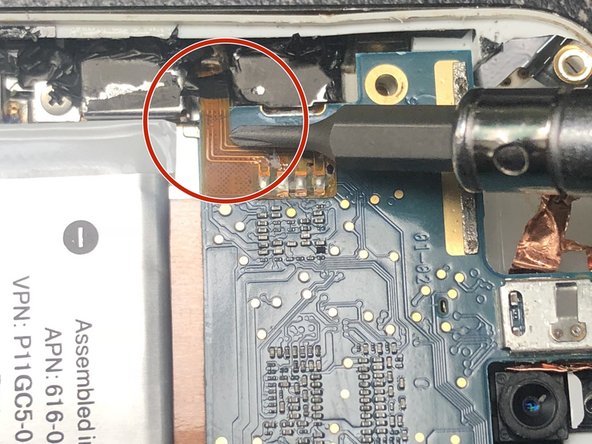

6. in blue peel off the wifi connector with a thin blade
7. in the green just pop off the connector it is similar to a lego piece

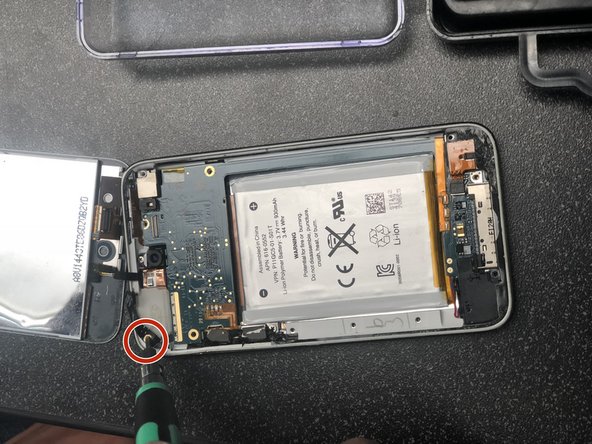

8. take off the screw shown in the first picture
9. also take off the metal plate use you plastic tool to take it off in the blue
10. in the red unfold that thin foil type material

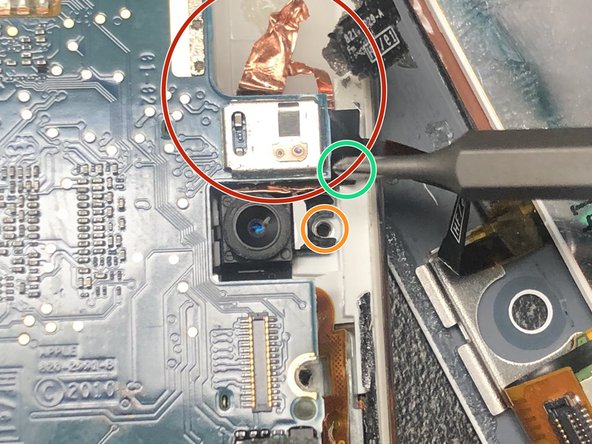

11. in the orange be to first take out the screw holding the camera in
12. in the green lift up the circuit make sure not to lift it to much as this can cause damage wait fot the next instructions to lift up

13. when you do lift up the circuit be careful with the wire in the red so not to damage it

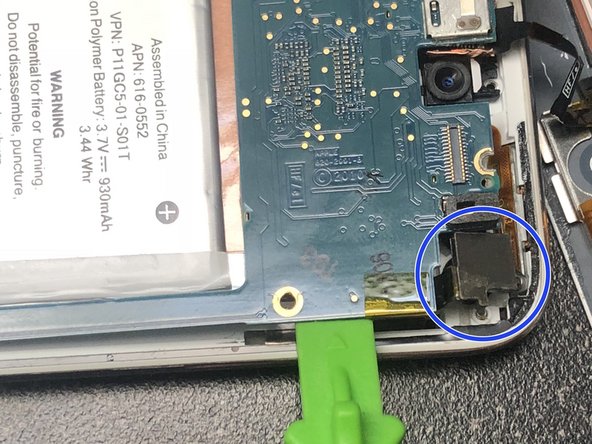

14. in the blue is the back camera do not worried if you lift it out of place it simply pops back into place

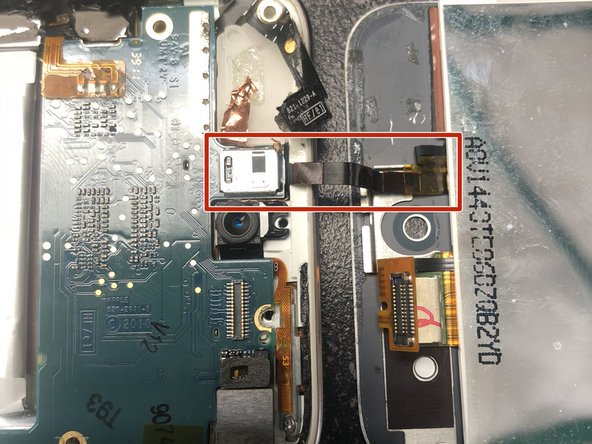

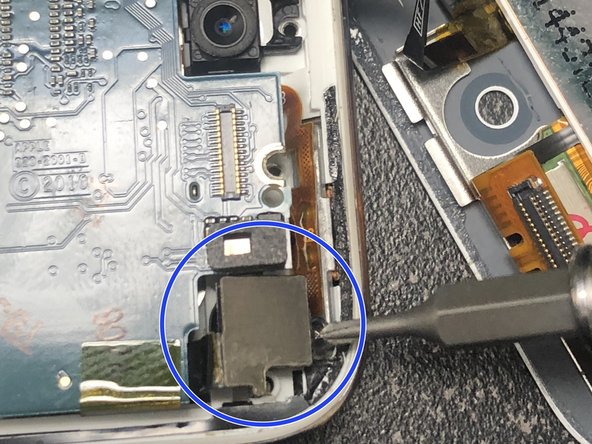

15. in the red is what you will need to take off to fully disconnect the screen
16. lift it up as instructed and pop of the connector it will be like a lego piece as well push down with a plastic tool to pop it off

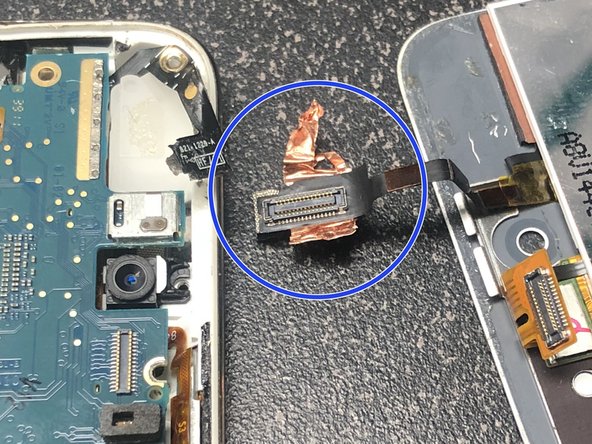

17. in the blue is what you will want yous to look like

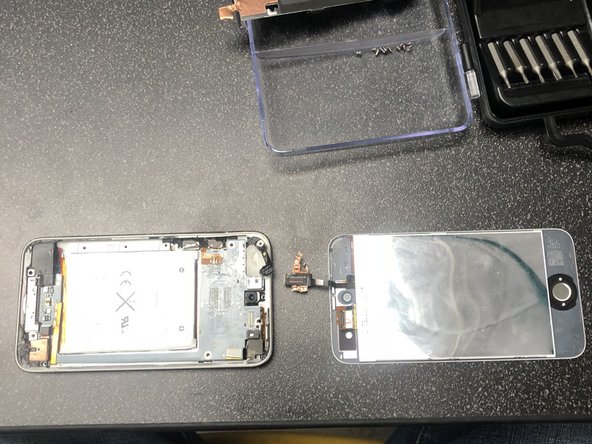

18. this is what your ipod should look like as well
