Alienware P18G M14X R1 RAM Replacement

ID: 106852

Description: In order to remove the RAM you first need to...

Steps:

  1. Loosen the top left and top right 6.5mm PH1 screws that hold down the back cover.
  2. The screws will not be able to be removed from the back cover. They can only be loosened or tightened.
    3. Step image
  3. Slide back cover forward using your thumbs.
    4. Step image
  4. Lift up the cover and set aside exposing the internals of the computer.
    5. Step image
  5. Unscrew the two 6.35 mm using the PH1 screw driver.
    6. Step image

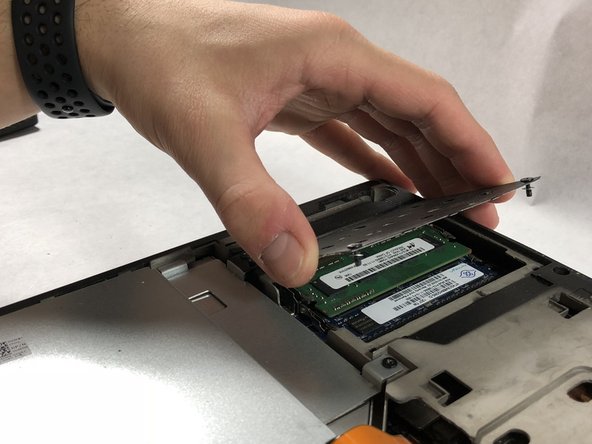

  6. Lift the plate and remove it to uncover the RAM sticks.
    7. Step image Step image
  7. Push outward on the prongs that secure the RAM stick in the slots.
  8. After releasing the prongs the rams stick will rise up.
    9. Step image
  9. Be very gentle in this step, making sure to not damage anything.
  10. Pull the RAM stick out of its housing.
    11. Step image
  11. Push outward on the prongs that secure the RAM stick in the slots.
  12. After releasing the prongs the rams stick will rise up.
    13. Step image
  13. Be very gentle in this step, making sure to not damage anything.
  14. Pull the second ram stick out of its housing.
    15. Step image
