OUKITEL K10000 MAX Stuck SIM Card Removal

ID: 108359

Description: If your SIM card has remained lodged in your...

Steps:

  1. Unscrew 8 side screws (flat 2.4mm or dedicated torx), then 4 rear screws (hex 1.5mm).
    2. Step image
  2. Withdrawal of back of phone and unplugging of LED connector.
    3. Step image Step image Step image
  3. Unscrew 5 screws (philips #0) off of black support.
  4. Withdrawal of black support
    5. Step image

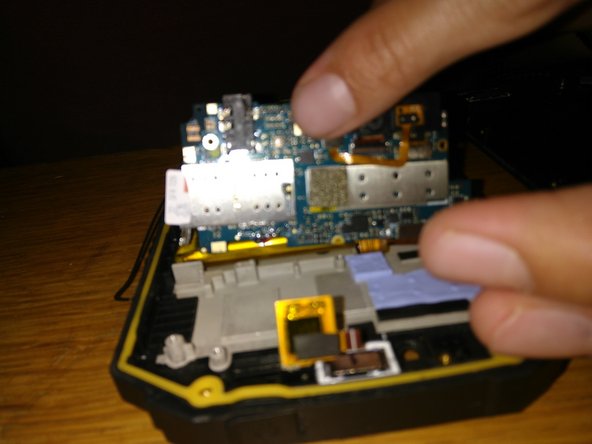

  5. Unscrew 3 screws (philips #0) maintening PCB.
  6. Unplug antenna connector.
  7. Unplug ZIF on the left.
  8. Unplug ZIF on top.
  9. Unplug the two bottom connectors.
    10. Step image
  10. Remove the stuck SIM card.
    11. Step image Step image
