Presidential Air valve

ID: 108401

Description:

Steps:

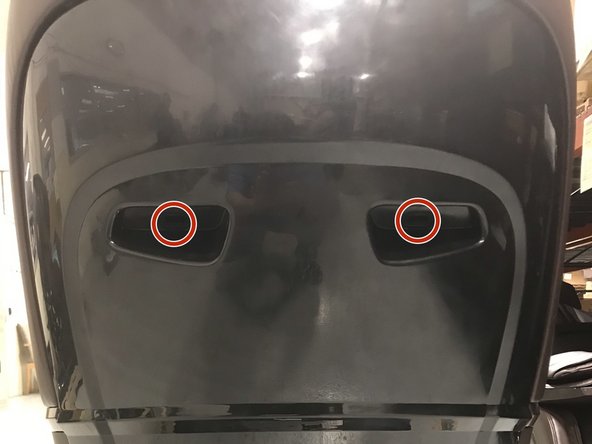

  1. Remove the 2 screws
  2. This cover may require some wiggling to remove. DO NOT FORCE it, it has medium sized plastic clips along the edges that lock into metal slots . When forced it will cause these tabs to break.
    3. Step image
  3. To Begin we need to put the chair into manual Shiatsu to move the mechanism to the middle of the track

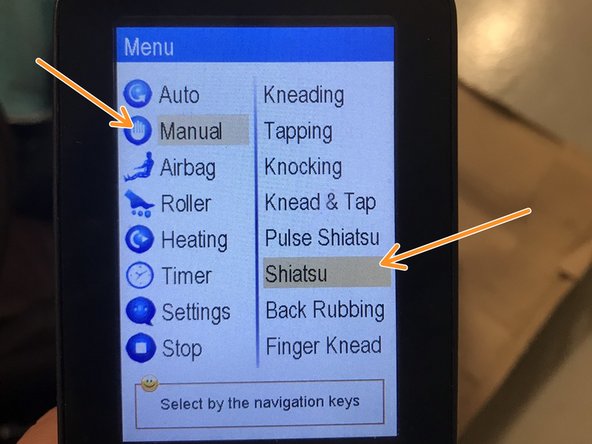

  4. Select Manual and then Mode
  5. Select Shiatsu by kitting the "ok" button
  6. Lastly select Manual , Position and point
  7. From here using the UP and DOWN arrows in the middle of the remote HOLD the DOWN arrow and the mechanism should move down until you release the button. Make sure you stop the mechanism in area on the track where you can access the top of the mechanism .
    8. Step image Step image Step image

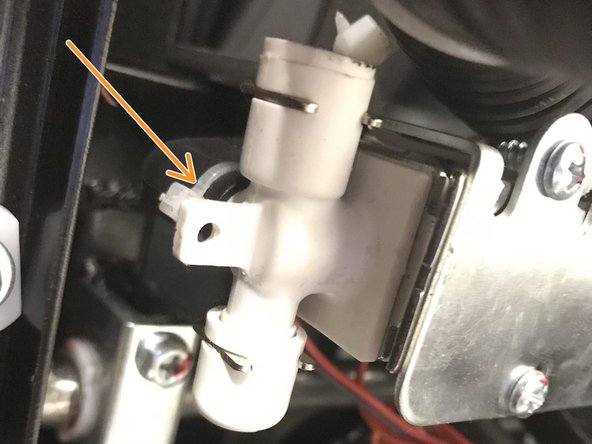

  8. air valve is located here
  9. one hose should be located to the left of the valve

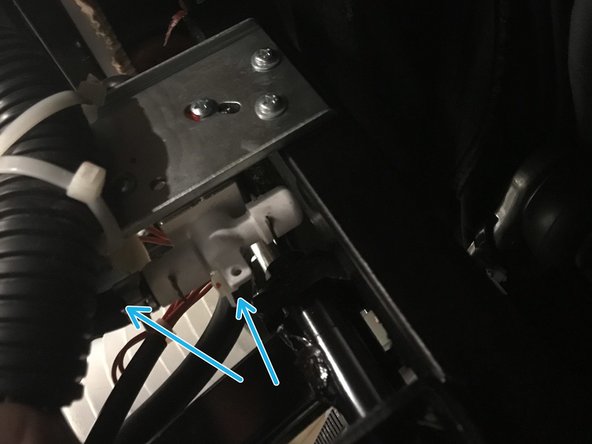

  10. other 2 hoses will be located on the right side
  11. DO NOT RE ZIP HOSES USE PROVIDED CLAMPS AS THIS WILL JUST REPEAT ITSELF UNTIL CLAMP IS INSTALLED
    12. Step image Step image Step image
