Infinity IT-8500 Massage Mechanism Replacement

ID: 108404

Description: Use this guide to learn how to replace the...

Steps:

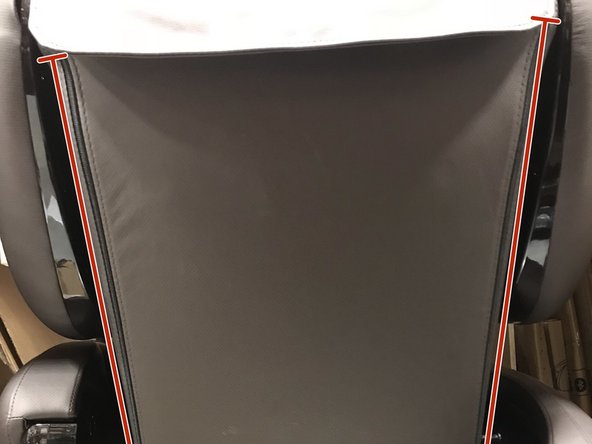

1. The back cover is covered by this leather cover. which unzips easily.
2. Zipper is located here and there are 2 of these on either side.

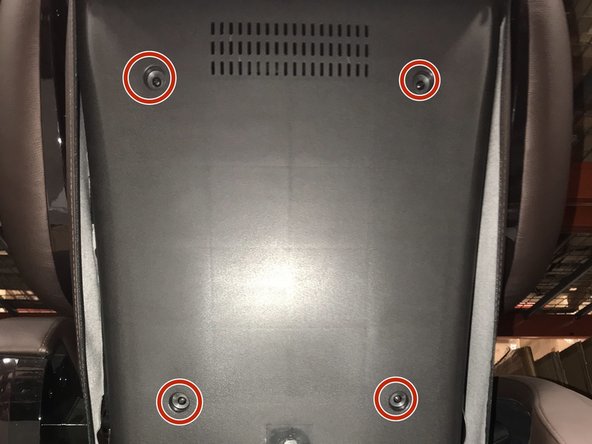

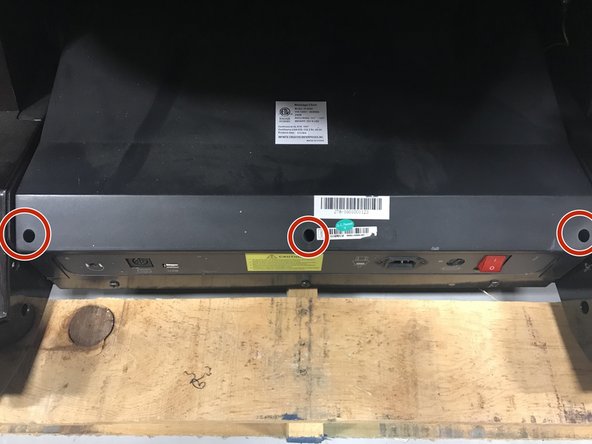

3. Remove all 6 screws

4. At this point you should have the speakers dismounted and armrests unlatched.
5. Press Down on Latch between armrest and chair body .
6. What the result should look like.

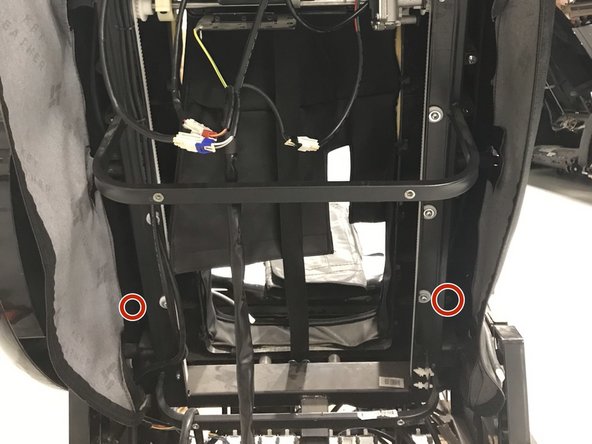

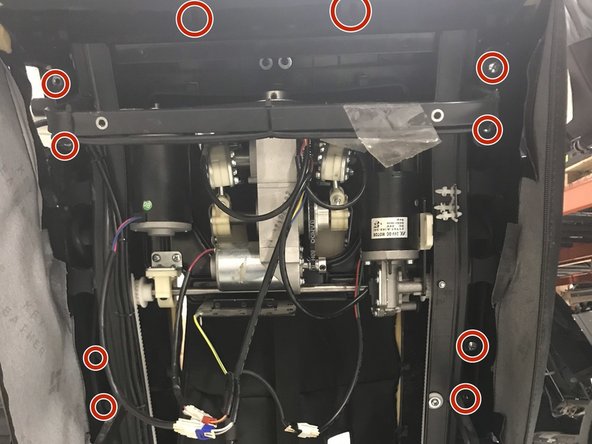

7. Remove all 12 screws from the frame.

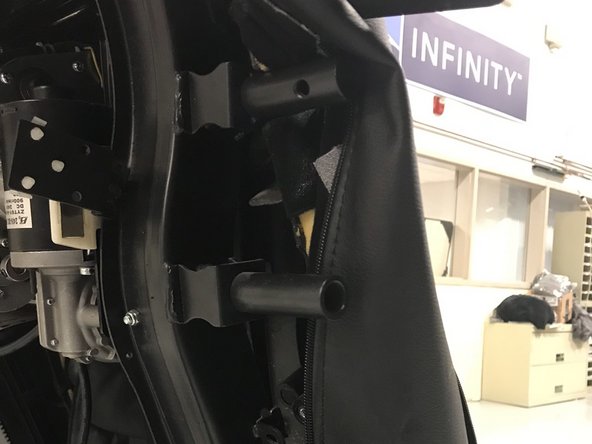

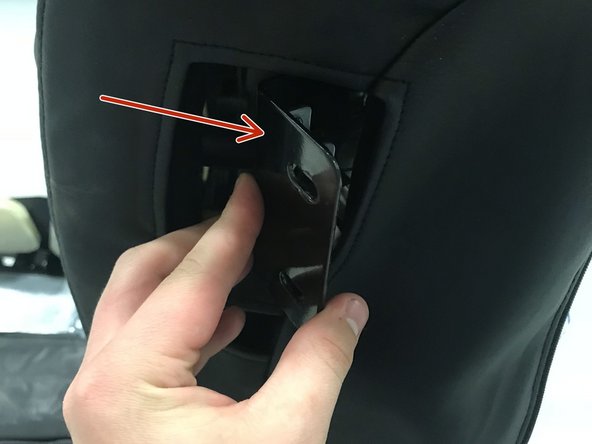

8. Note the speaker bracket will need be threaded through its leather slot and left hanging inside the back of the chair.

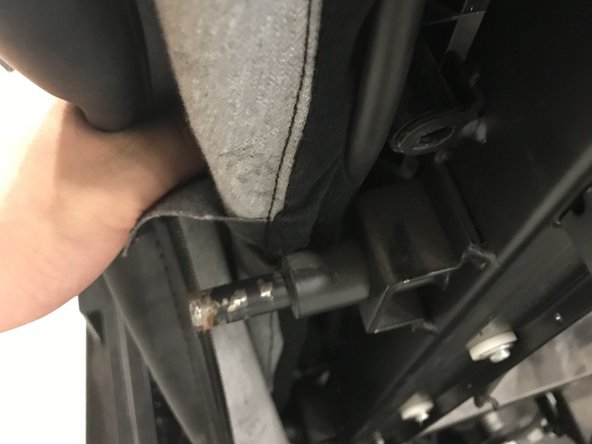

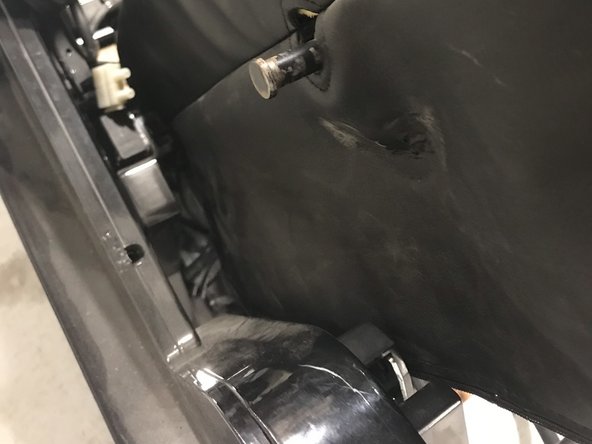

9. Next you will need to remove the leather from the Posts . To do this simply pull the leather over each post.

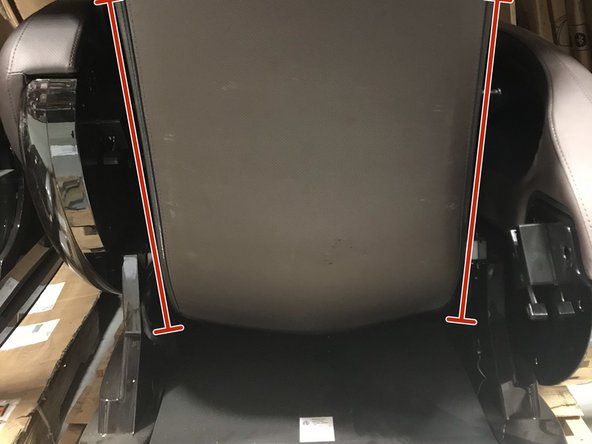

10. The chair piece should separate from the frame with ease , should not have to force it . See previous step

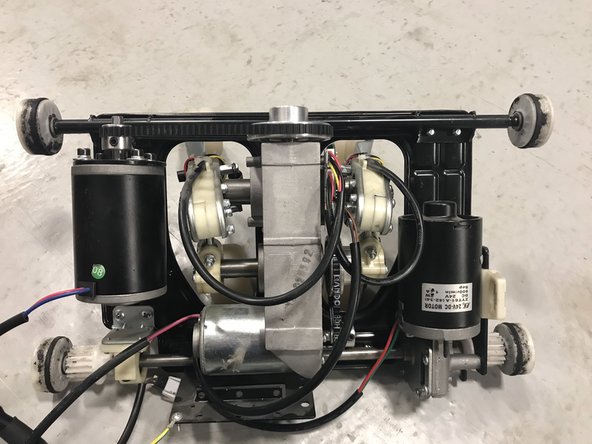

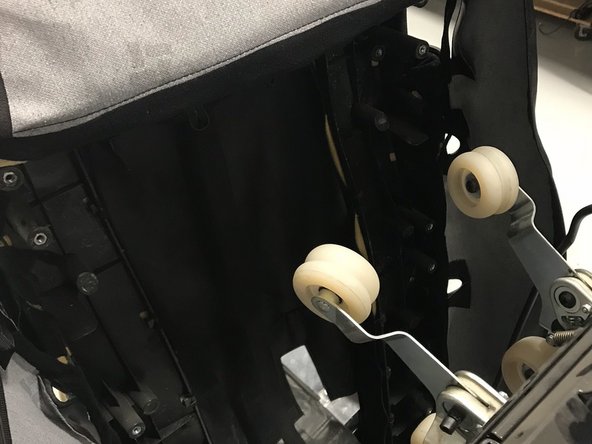

11. From here that chair piece should hold itself up while you remove that mechanism.

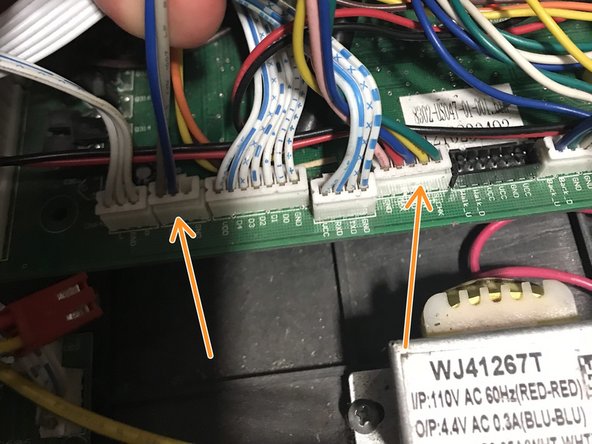

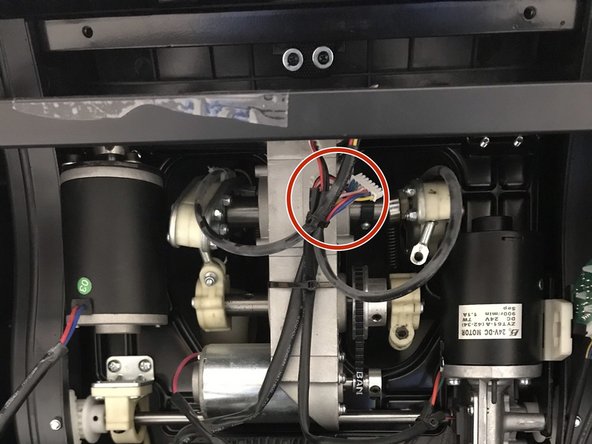

12. Now we need to disconnect the wire harness from the mechanism . Do this by simply unplugging the marked cables

13. ONLY FOLLOW THIS STEP AND THE NEXT IF YOU ARE REPLACING THE ENTIRE WIRE HARNESS IF NOT THEN SKIP THIS AND STEP 9.

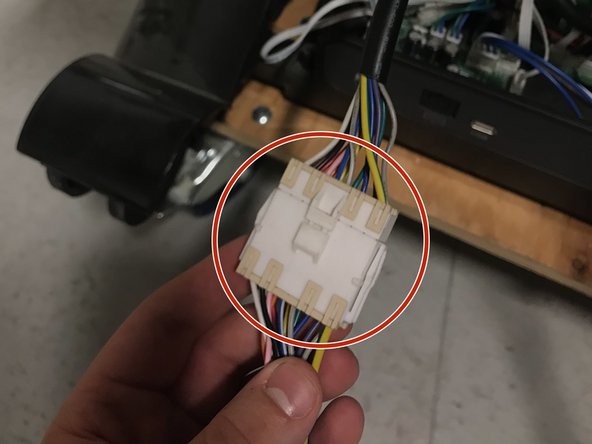

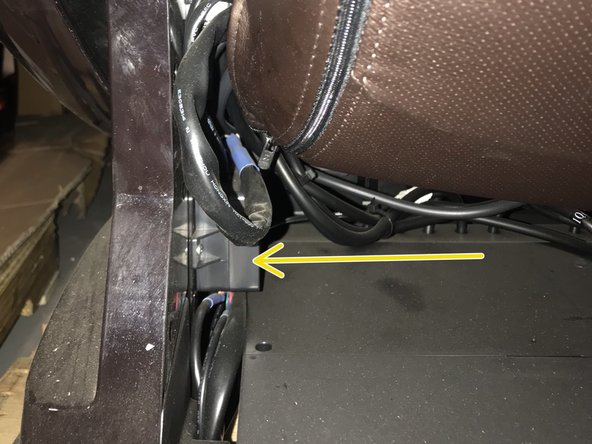

14. When replacing the wire harness you need to disconnect the upper portion of the harness from the mechanism and then locate the quick disconnect .

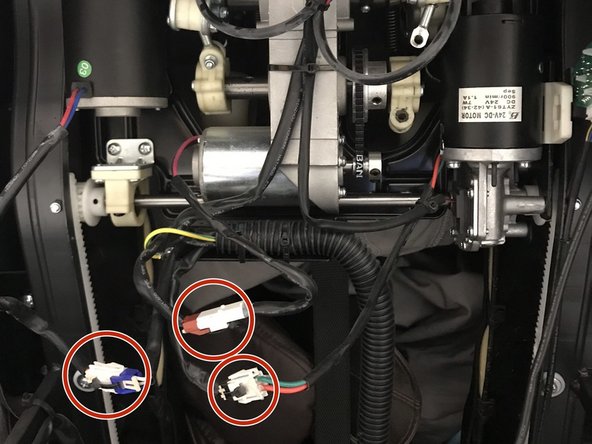

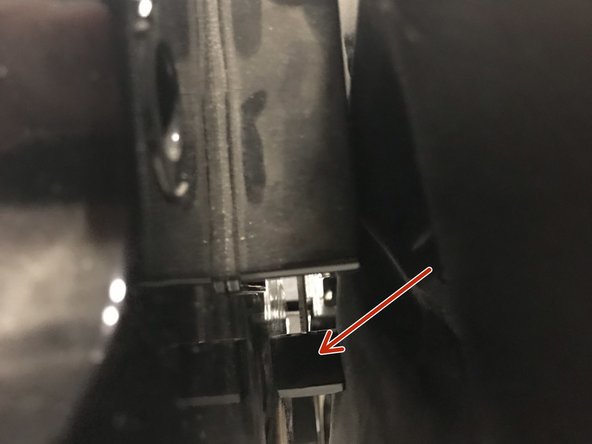

15. Quick disconnect

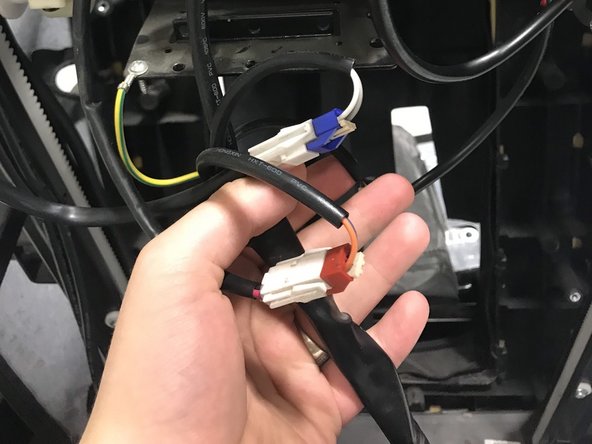

16. This step will show you where the wires are for the lower portion of the harness.
17. Remove the 3 screws

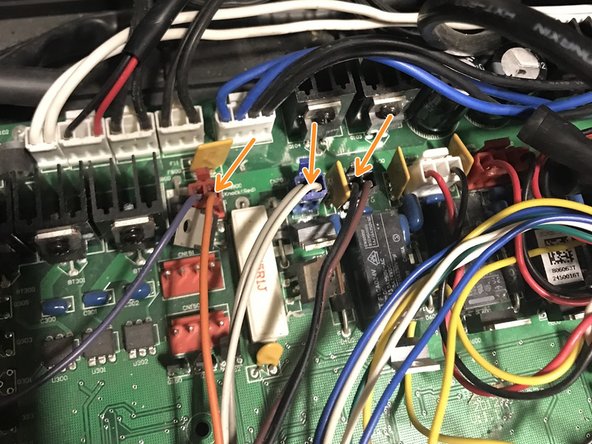

18. These are the locations of the the wires for the lower harness

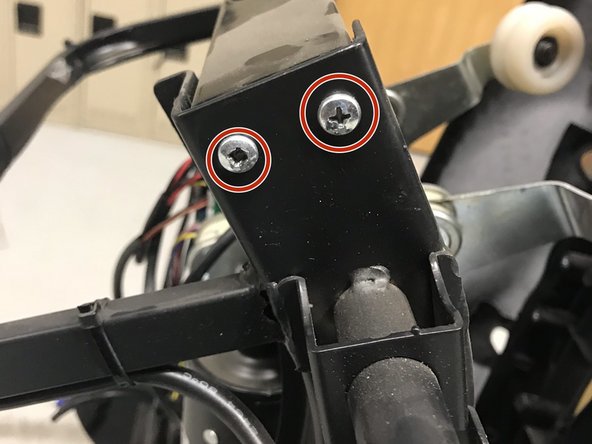

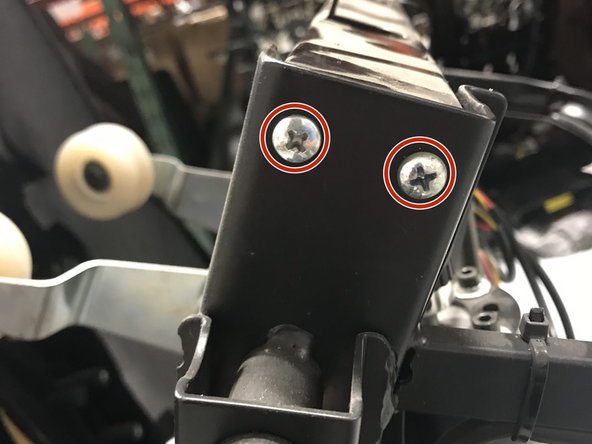

19. Remove all 4 screws on top bar

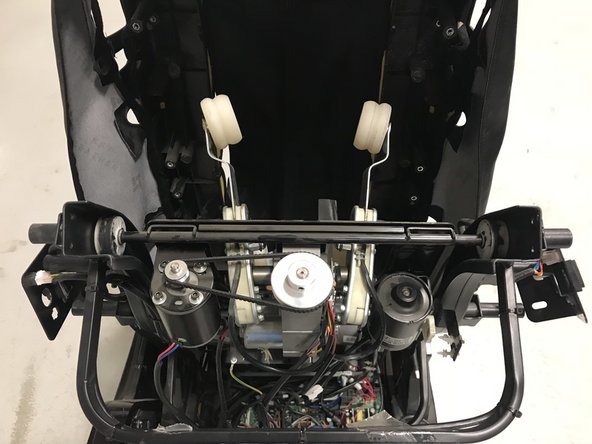

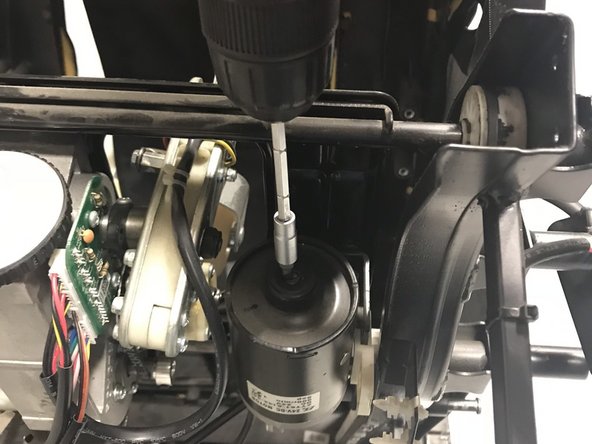

20. Next attach a flat head bit to a cordless drill and insert it into the the top of the Up and Down motor. this will allow you to drive the mechanism out the top of the track.

21. ALL DONE!
