LG G Pad X 8.3 Motherboard Replacement

ID: 109909

Description: The motherboard is the foundation of any...

Remove the cover of the SD card. Find it on the right side of the back of the tablet.
Press the SD card in to make it pop out.

Start at a corner and pry the screen up with a plastic opening tool.
You can also use a plastic spudger for this task, but do not use metal tools. They can be dangerous to you and the device.
Slide the tool in the seam at the edge of the screen.
Wedge additional plastic opening tools in the seam to help lift the screen.
Slide both wedged plastic opening tools towards the bottom to pop the screen loose.
If your screen is cracked, work slowly to avoid flinging glass shards when prying.

With a Phillips #000 screwdriver, unscrew the six 4.0 mm screws that hold down the battery.
With the Phillips #000 screwdriver, unscrew the two 4.0 mm screws that hold down the battery ribbon connector.
Use a magnetic mat to keep track of these tiny screws for later reassembly.

With a Phillips #000 screwdriver, unscrew the one 4.0 mm screw that is holding down the speaker.
Use the magnetic mat to keep track of the tiny screw(s).

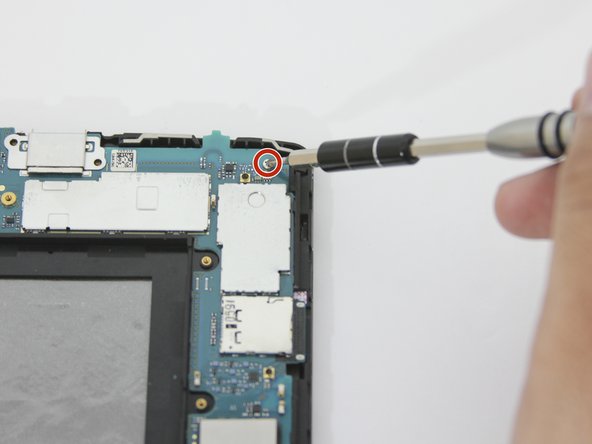

With the Phillips #000 screwdriver, unscrew the four 4.0 mm screw that are holding down the motherboard.

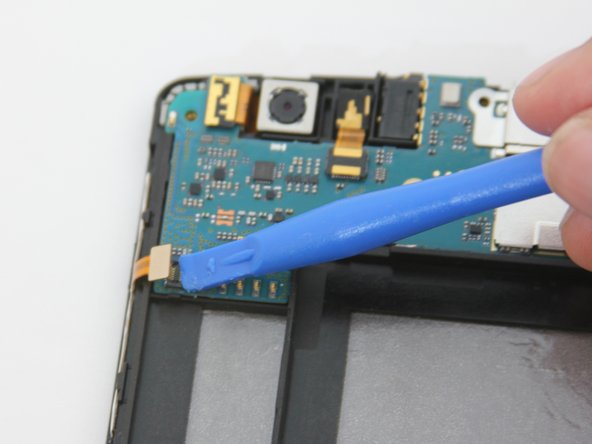

Use a plastic opening tool to lift up the ribbon connector at the bottom of the motherboard.

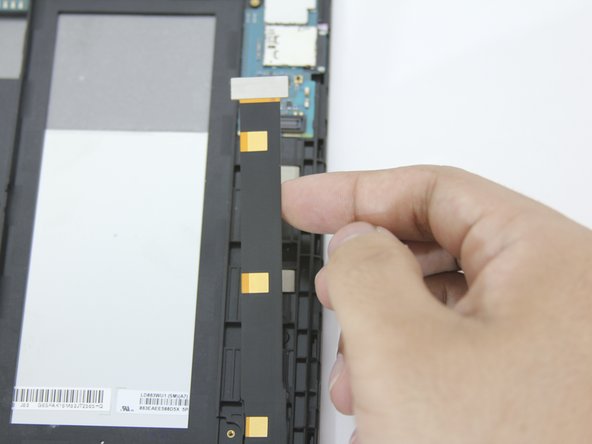

Only lift up the end of the ribbon connector that is attached to the motherboard. The end at the base of the tablet should stay attached.

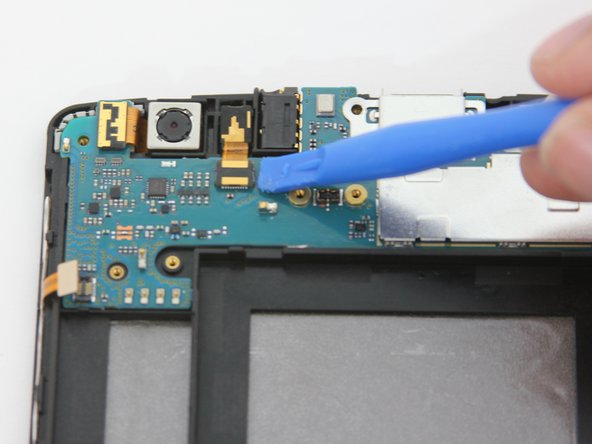

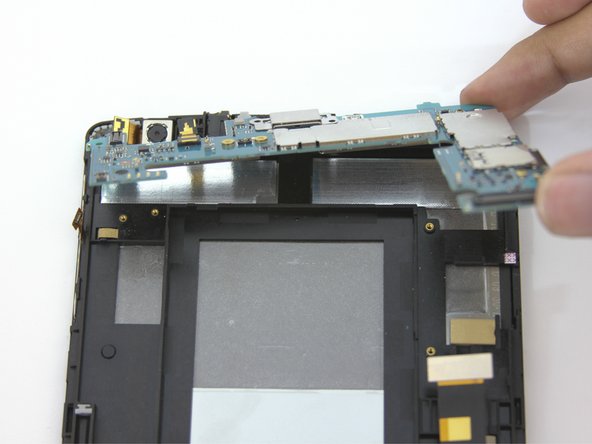

Lift and release the remaining ribbon connectors in the upper left corner of the motherboard with a plastic opening tool.
Avoid bending the tips of the ribbon connectors to prevent damage.
