Toyota bB (first gen) Oil and filter change

ID: 113518

Description:

Steps:

  1. This car has no easy lifting points, and a bodykit and low ground clearance makes lifting a bit harder

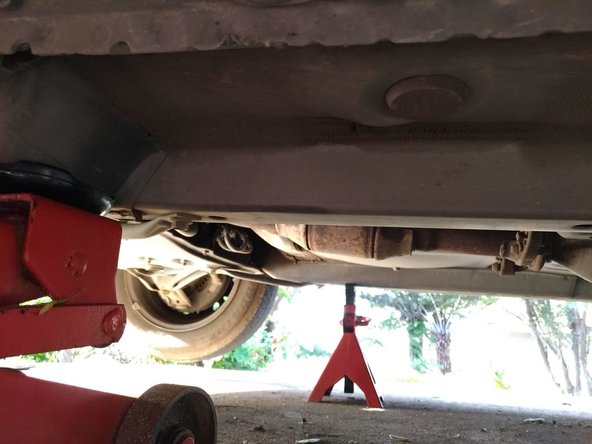

  2. I was able to come in from behind the front wheels at the sides and lift from the box section of the unibody as pictured
  3. The jack-stands I placed hard up against the jack and found a spot on the "frame-rails" (box section of unibody)
    4. Step image Step image Step image
  4. I like to use cardboard, but a shop creeper would work too

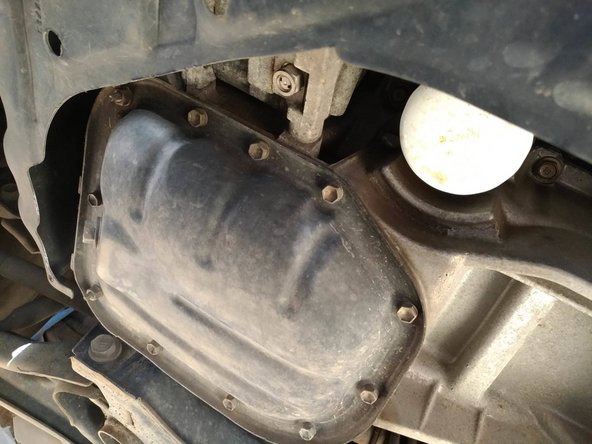

  5. The oilpan and drain bolt are located at the right-front of the car
    6. Step image Step image
  6. The oil filter is faced downwards and is just in front of the oil pan under the intake manifold
  7. You don't need to take off the plastic under-shield but if it's annoying you could
    8. Step image

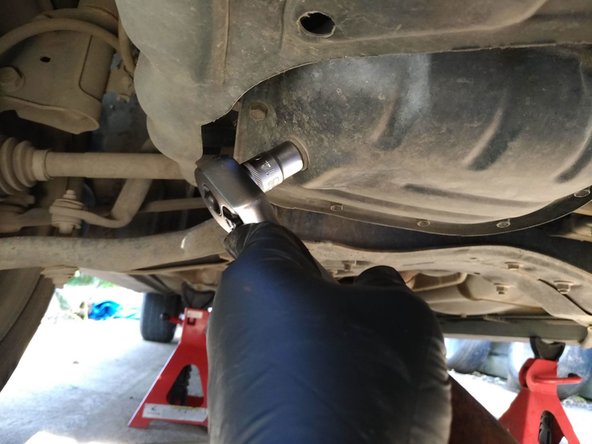

  8. The drain bolt on the 1.3L engine is a 14mm

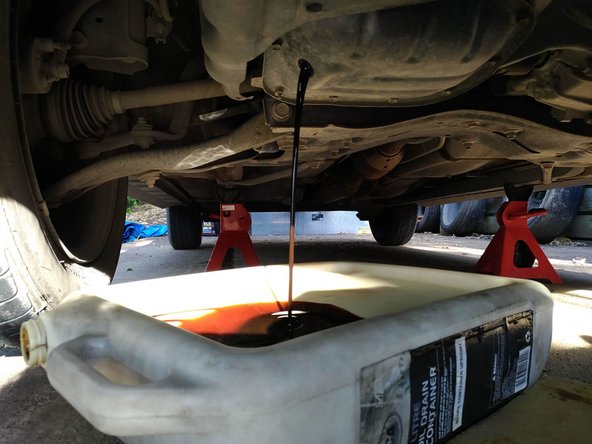

  9. Re-position the pan as it drains - especially if it's a windy day
    10. Step image Step image

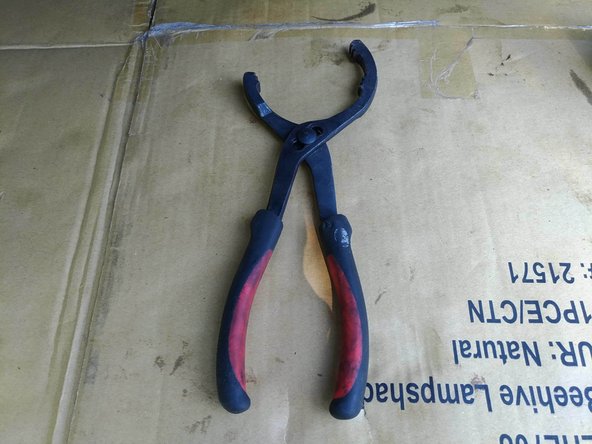

  10. I like to use a set of oil-filter pliers but a correct oil filter socket would be a luxury, or a strap wrench or other tool would be fine

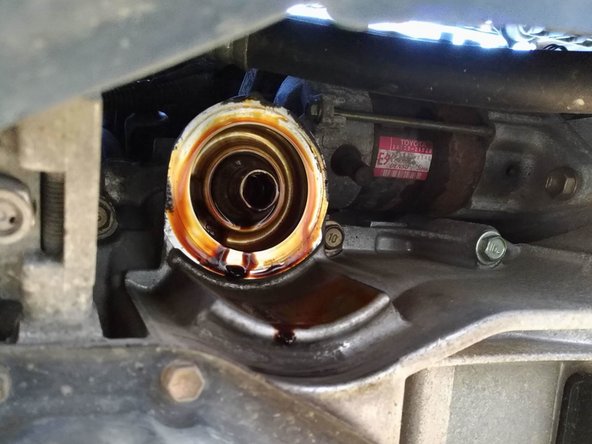

  11. Make SURE the gasket comes off with the old filter and is NOT stuck on the block
    12. Step image Step image

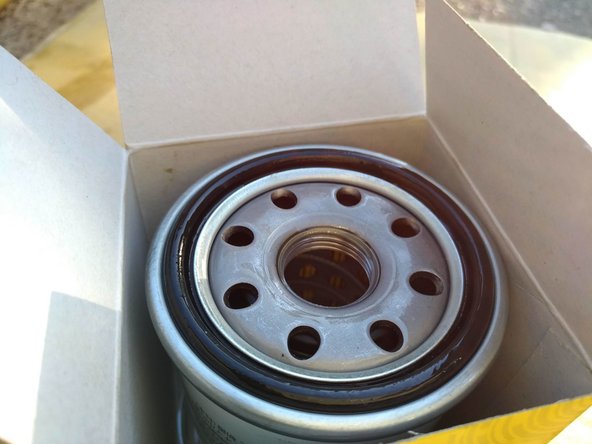

  12. Oil up your new filter's gasket
  13. Since the oil filter is facing down, you can pre-fill the oil filter if you like, it can be messy if you drop it though!
  14. Clean the mating surface with rags before installing the new filter
  15. Tighten the filter 3/4 turn after it touches the block

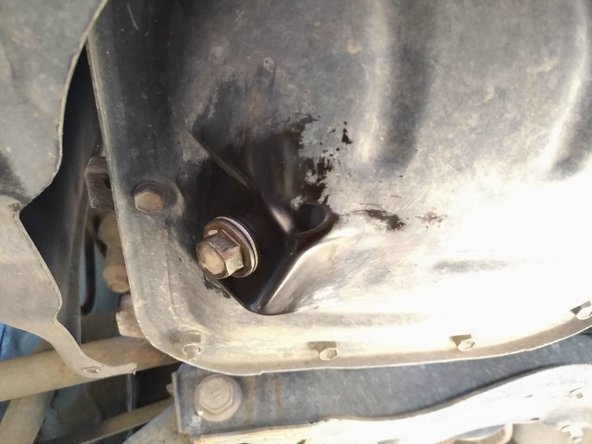

  16. Remember to also tighten the oil drain bolt, and clean around each area with rags so you can spot leaks easier
    17. Step image Step image Step image
  17. Remove cardboard/creeper and any tools
  18. Lift each side and remove the jack stand
  19. Lower the car which will level it for filling
    20. Step image
  20. The fill cap and dipstick are located at the front-right of the car (left side of engine bay)
  21. I used 10W-40 full synthetic oil, and the car accepted around 3.8L
  22. I like to use a stubby wide-mouth funnel
  23. Sorry I didn't take any photos of this step as it was the end of a long day of 3x cars servicing
  24. Run the car for 15 seconds or so to fill the filter and oil galleries
  25. Turn off the car and check for leaks underneath
  26. Check the level again with the dipstick and top up as required
