BlackMagic Hyperdeck Studio Mini Fan Replacement

ID: 113533

Description: BlackMagic Hyperdeck Studio Mini has a very...

Steps:

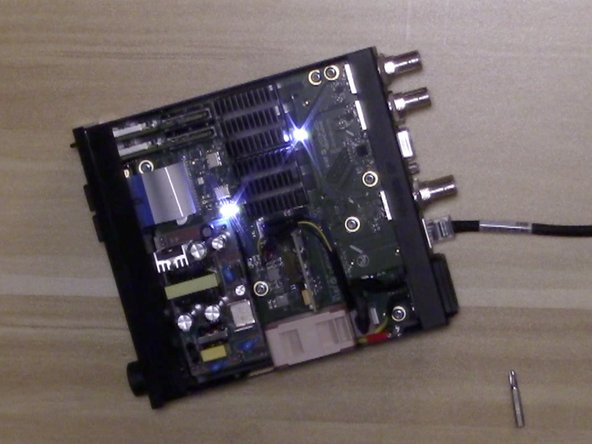

  1. 4 Screws on each side
    2. Step image
  2. 2 - Screws
  3. 1 - Pull cable
    4. Step image
  4. Leave some length to solder with and to reach connector on main board.
    5. Step image
  5. Strip Wires, Tin Wires, and prep by adding heat shrink tubing on wires (before shrinking).
    6. Step image
  6. Solder the new fan to the old connector using the following pinout.

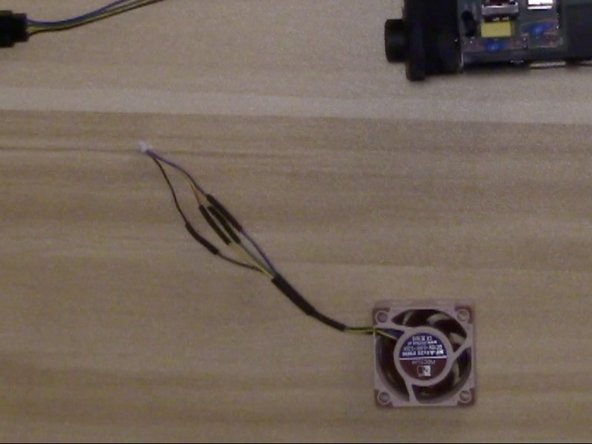

  7. Adjust heat shrink tubing so it covers the solder joints and use heat gun to shrink tubing.
    8. Step image Step image Step image
  8. Re-assemble fan to device with fan label facing out.
    9. Step image Step image
  9. OPTIONAL - Use Small Round Nose Pliers to break off case grill to make fan even quieter.
  10. Re-Assemble case.
    11. Step image
