Dick smith 2 channel dvd player Disassembly

ID: 113714

Description:

Steps:

1. Take off these two black screws at the edges and lift the top shell of the main body.

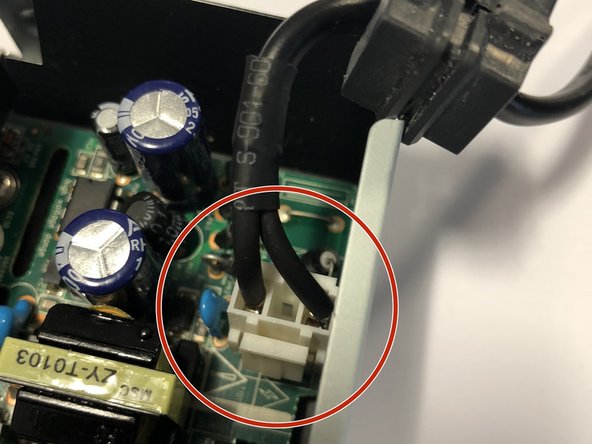

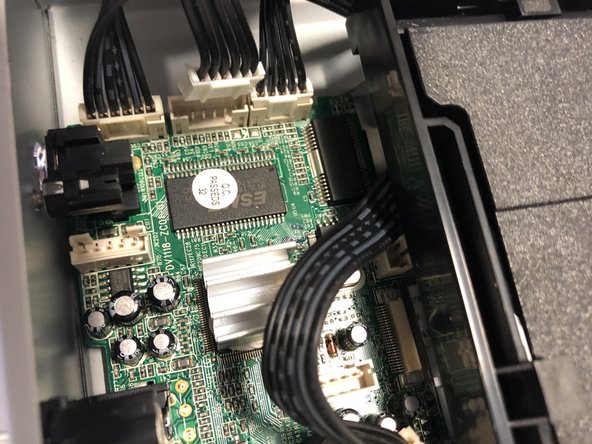

2. unplug the power cable from the main circuit board.

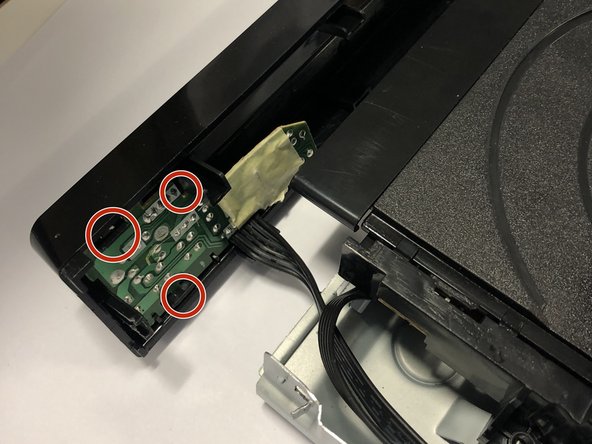

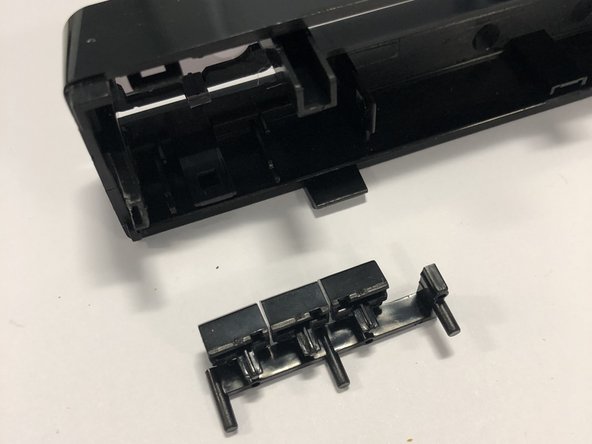

3. unbent the metal piece holding the front shell and pull it out, take off the button circuit and the push button component.

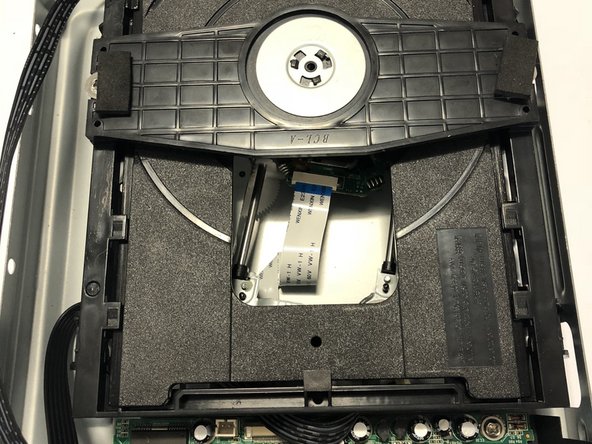

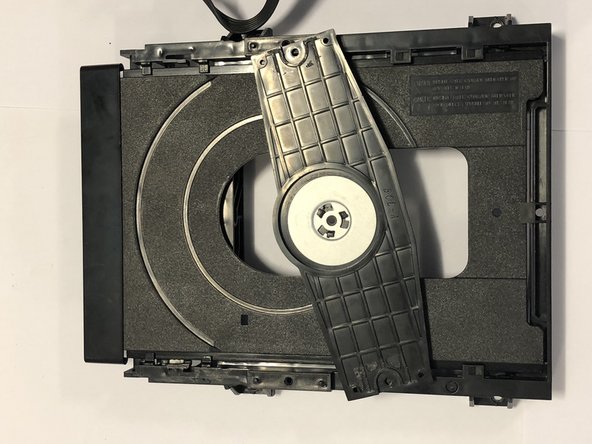

4. unplug all cables from the main circuit and lift the loader from the body only leaving the laser lens.

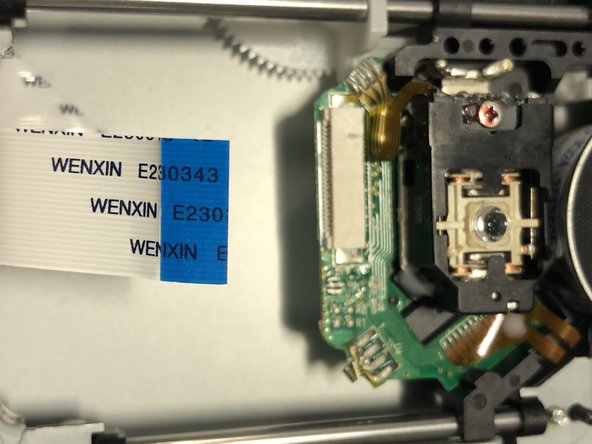

5. unplug the cable connecting the laser lens and the main circuit and lift the laser lens away from the main body.

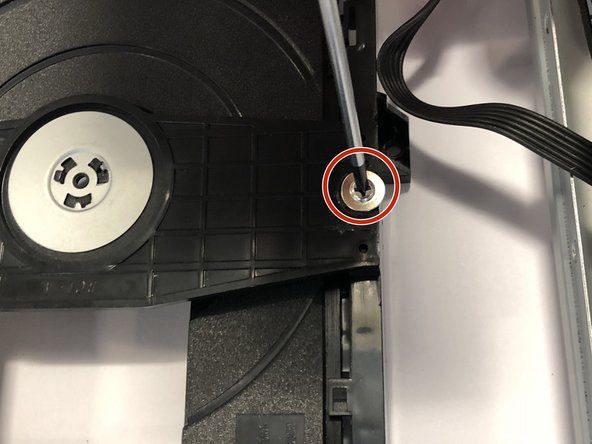

6. unscrew the two screw that holds the cover and lift the cover away from the loader.

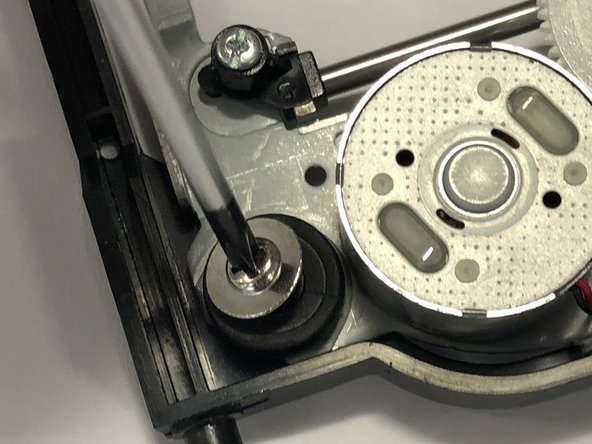

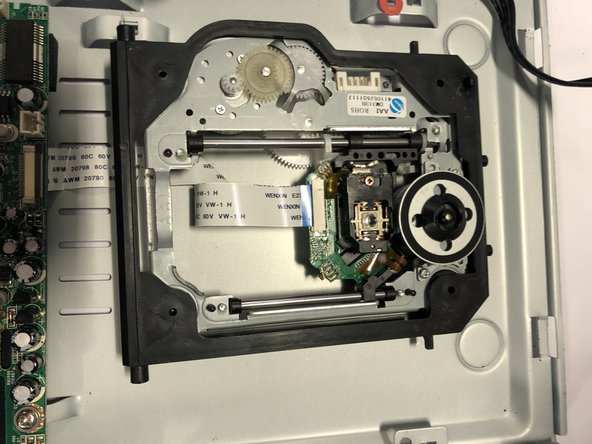

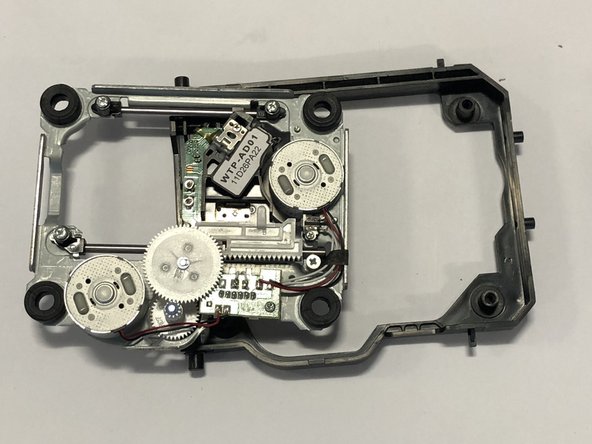

7. unscrew all four screws on the dvd reader and lift it away from the holder.

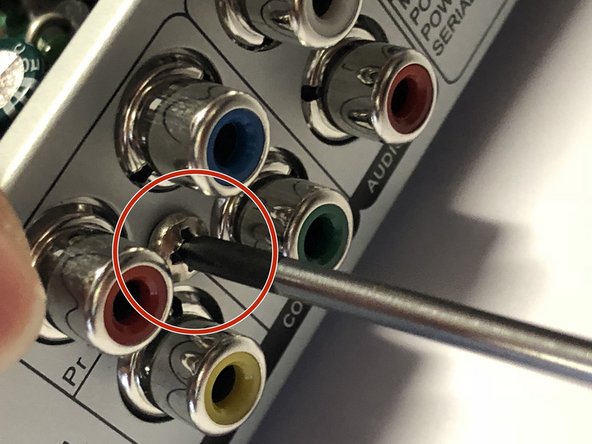

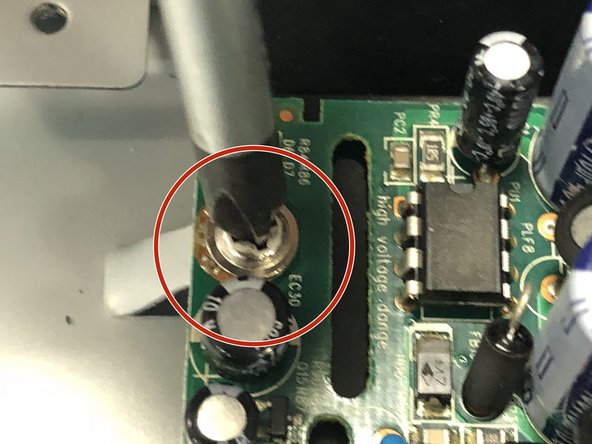

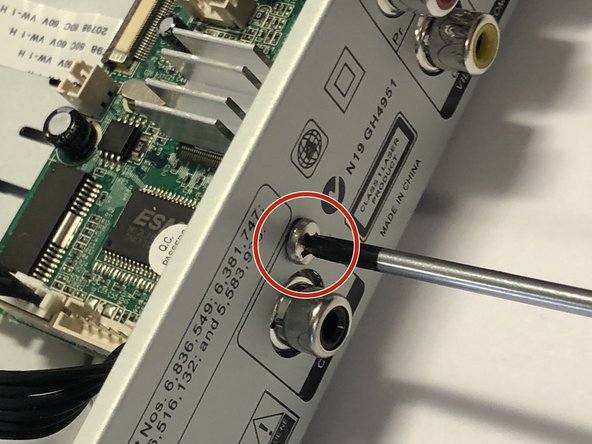

8. unscrew two screws at the back of the body and one on the board, then lift the circuit board away from the main body.

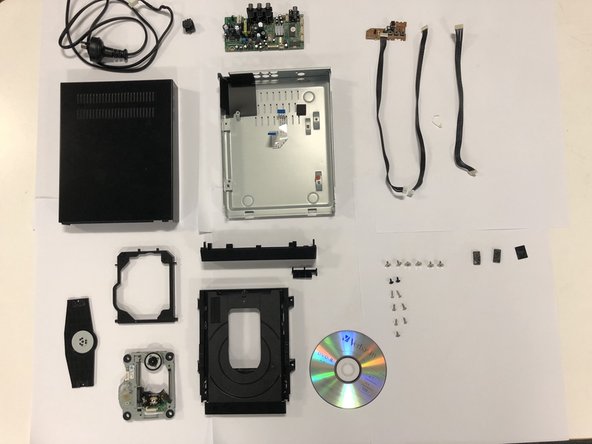

9. all the parts after the teardown
