KAMBROOK 1.7L BPA Free Kettle Teardown

ID: 113765

Description: This guide explains how to take apart the...

Steps:

1. Put the device on the table.
2. CAUTION: Make sure the cord is not plugged into the outlet in order to prevent electrocution.
3. CAUTION: Make sure there is no water inside the kettle.

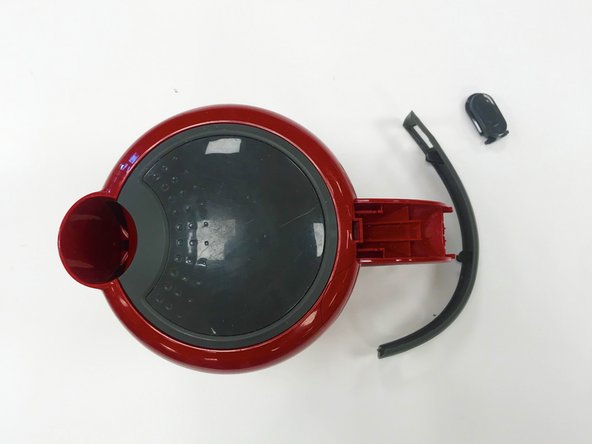

4. Take off the handle cover and the button on it.

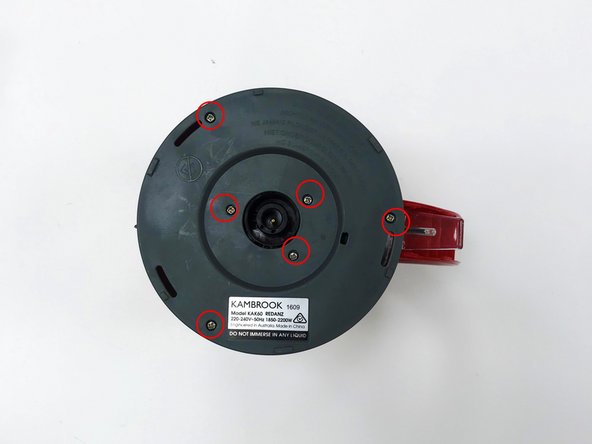

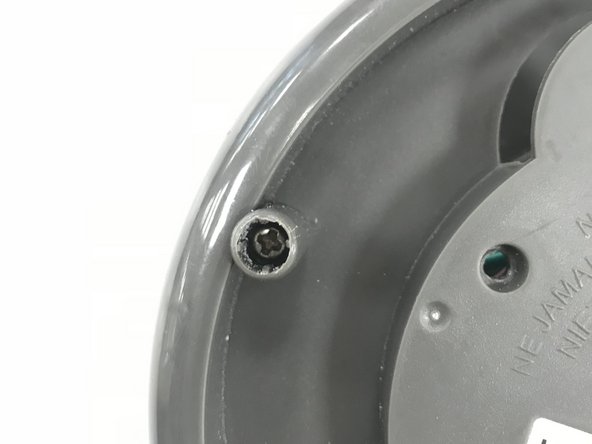

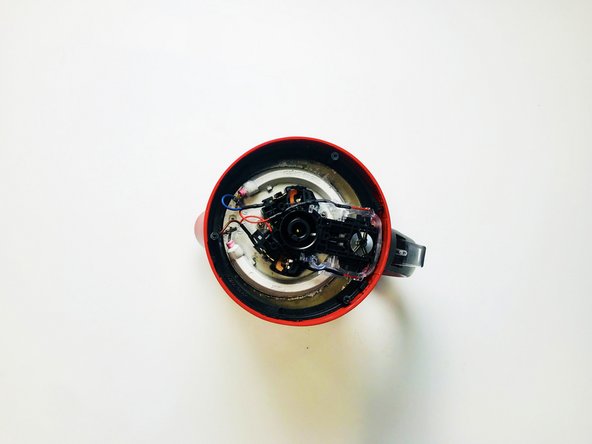

5. Turn the device upside down and screw down the screws.

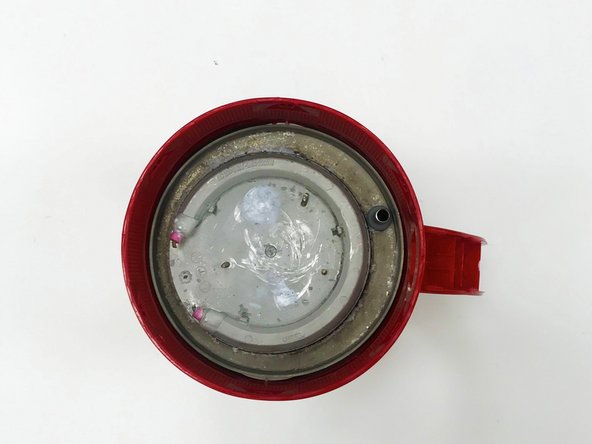

6. Take the bottom cover off .

7. Pry down the fixed black circle with a screwdriver
8. Caution: Be careful of the tension.

9. Pry a slit between the kettle body and metal guy with hammer and screwdriver slowly.
10. Cut the rubber band in two halves and take them off.

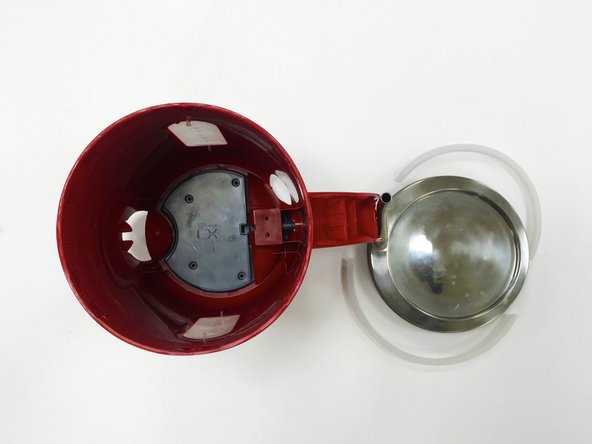

11. Finally, take the metal guy off.

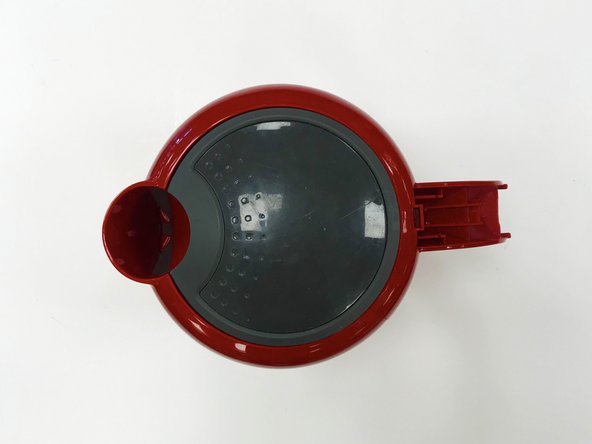

12. Turn the device back to the upside.

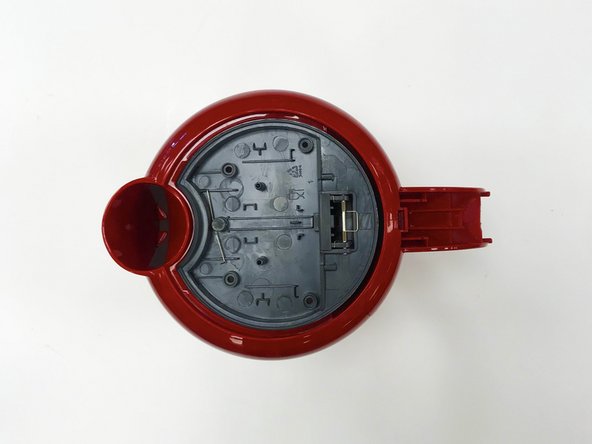

13. Use a screwdriver to open the top cover.

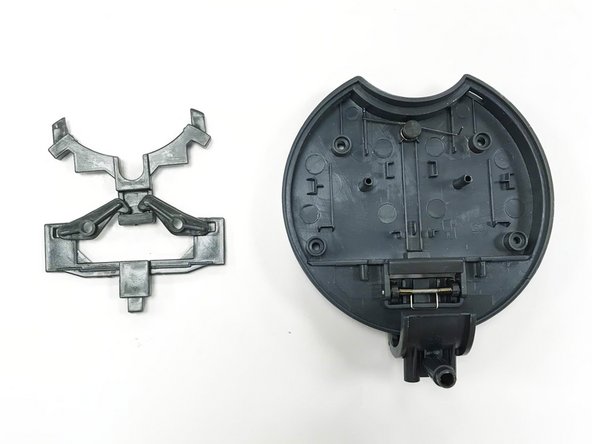

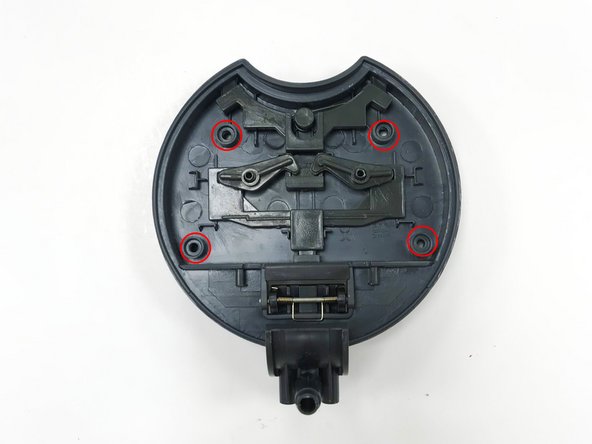

14. After you open the top cover, screw down 2 screws at the bottom of it, then you can get the whole cover off easily.
15. Caution: there have some components inside. DO NOT LOSE THEM!

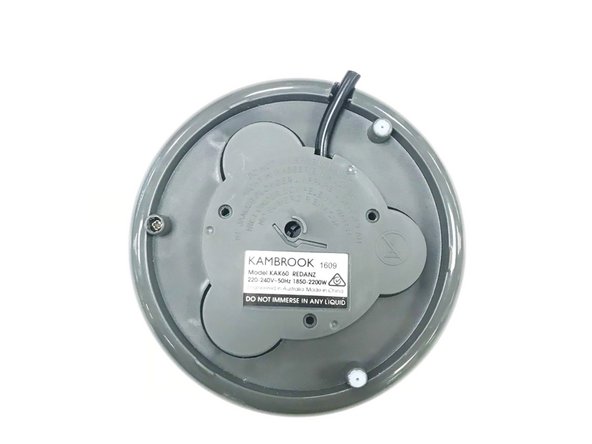

16. Now focus on the charging base part.
17. Put that on the table.

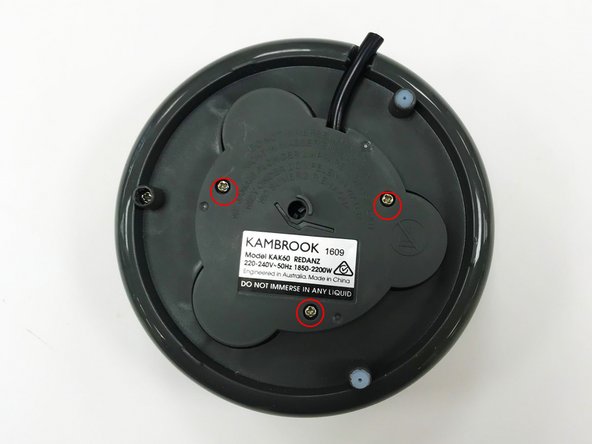

18. screw down three screws off in the middle.

19. Remove 3 white rubber mat with tweezers.
20. Screw down three screws off below rubber mats.

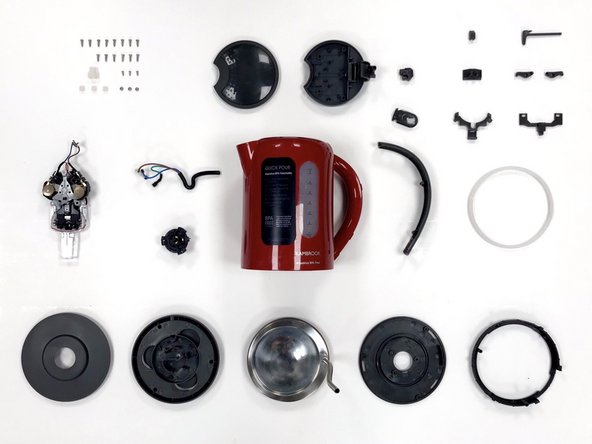

21. The kettle is now fully disassembled.

22. The kettle is now fully disassembled.
