Model CVS124A Teardown

ID: 113770

Description: The hair dryer is an electromechanical device...

Steps:

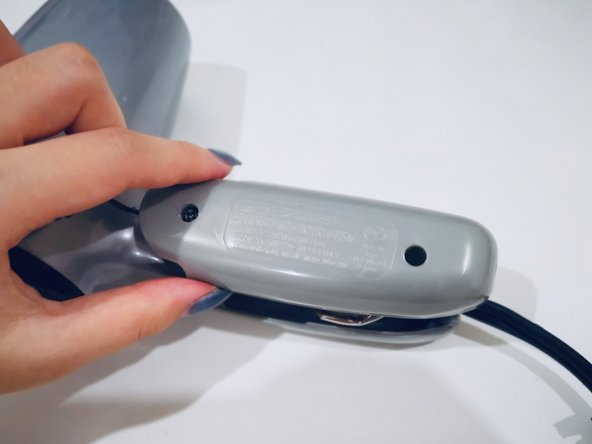

1. Locate the screw on the handle and remove them with a Phillips screwdriver.
2. All of the hair dryer’s components are held together by these two screws. Parts may quickly separate after screw removal.

3. Remove the top portion of the handle.
4. The model information and warnings are engraved on the top portion.

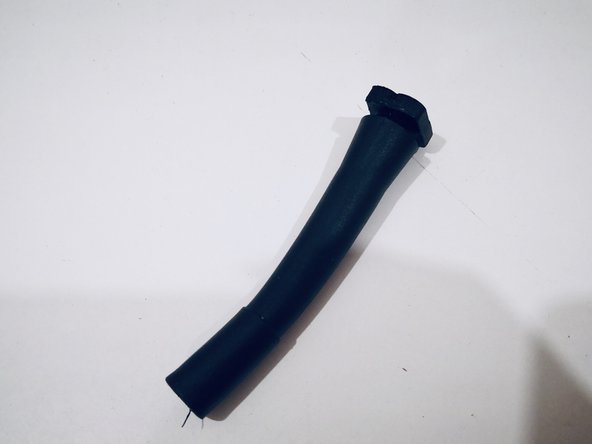

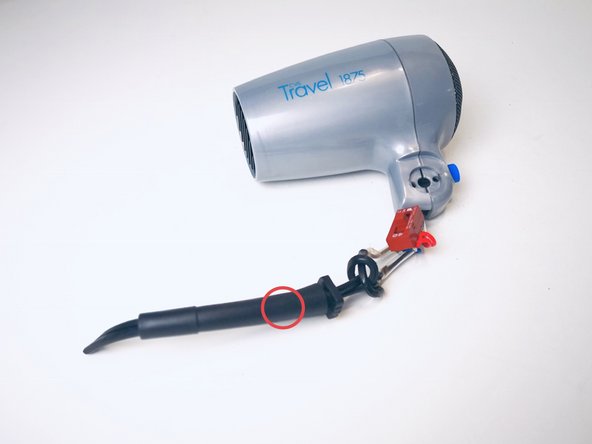

5. Remove the settings switch by lifting straight up.

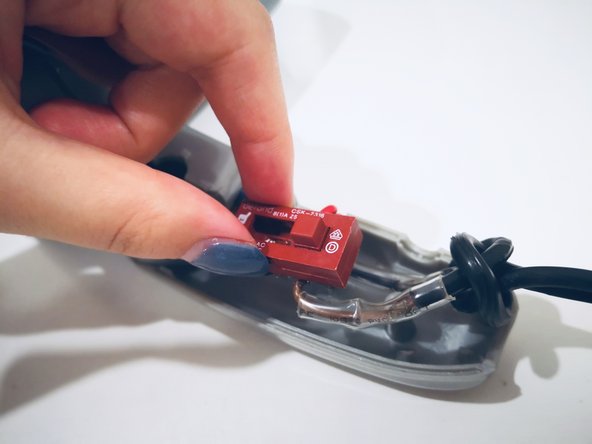

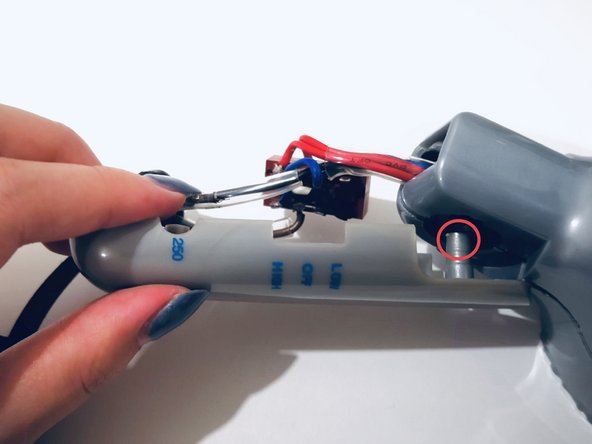

6. Remove the internal switch from the rear portion of the handle.

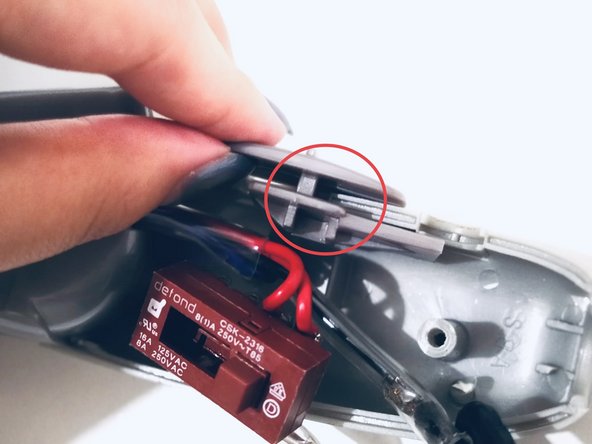

7. Remove the lower portion of the handle by sliding the peg out of the slot at the top of the handle.

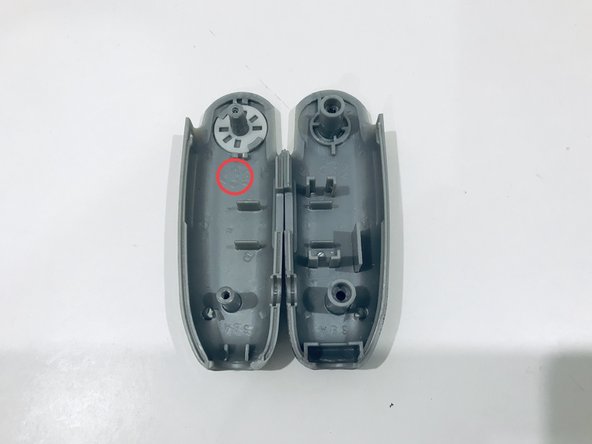

8. Handle - ABS injection moulding

9. Take off the protective jacket outside the wire.

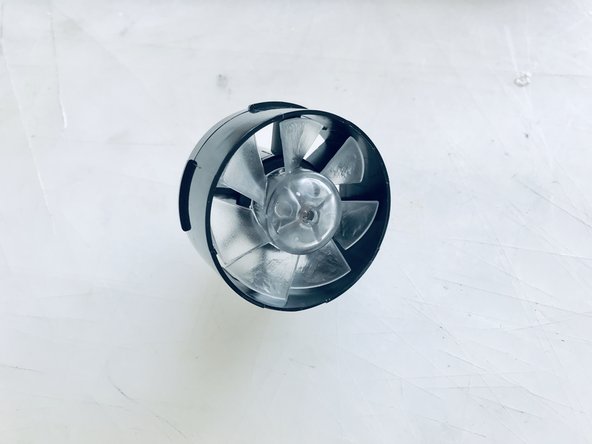

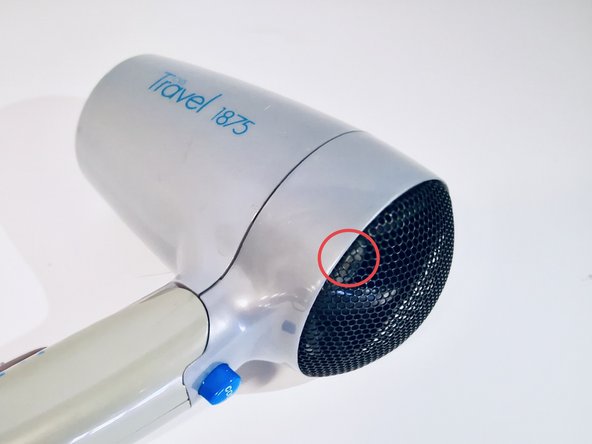

10. Separate the iron case with the back case by using 6.5mm flathead screwdriver. Take off the fan after separation.

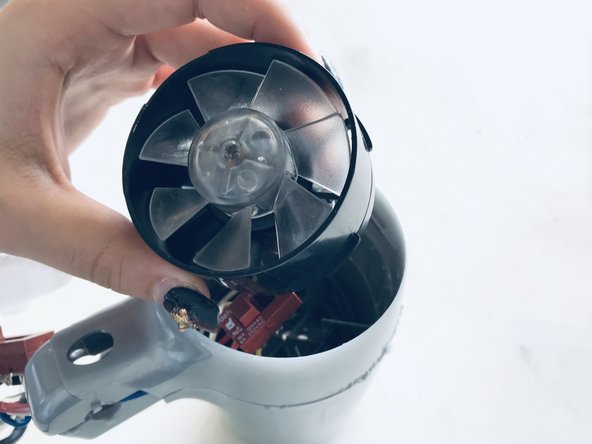

11. Pull on the back of the fan motor to gently lift the motor out of the hair dryer.

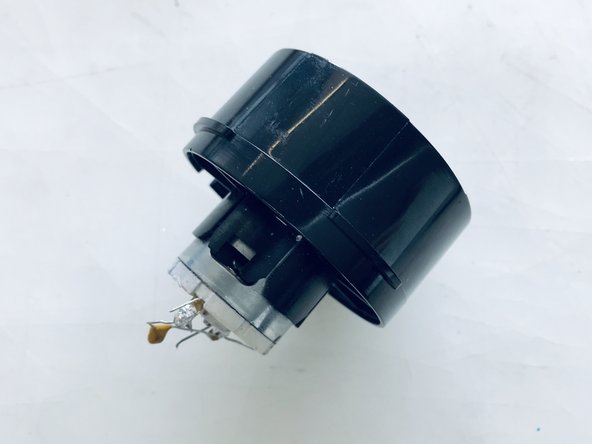

12. The fan motor

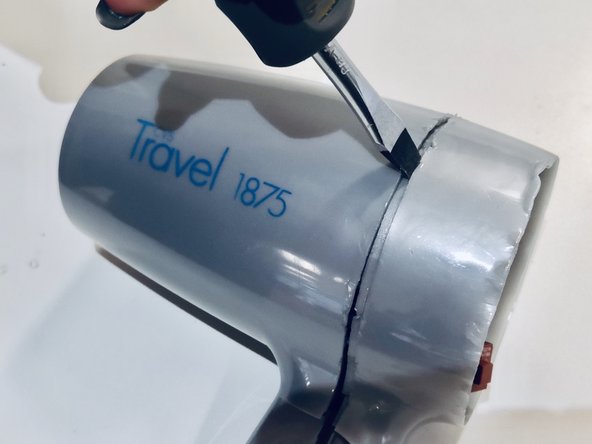

13. Separate the back and front case by using the 6.5mm flathead screwdriver.

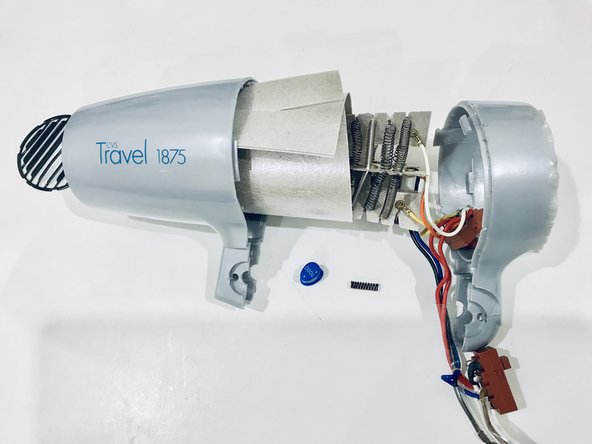

14. At this point you can pull the complete electronic sub assembly from the front case.

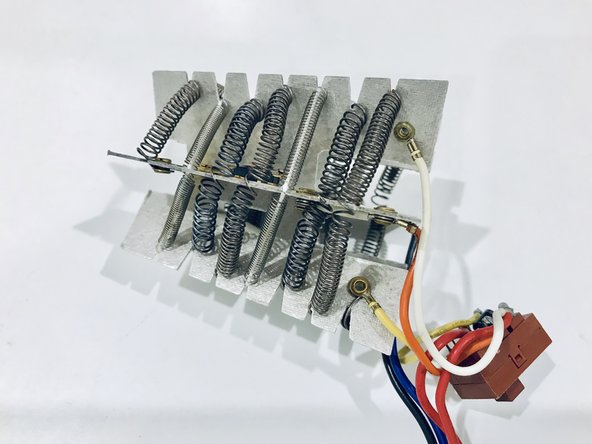

15. Coils

16. All the parts after the teardown.
