Motorola W490 Keypad Replacement

ID: 11499

Description:

Steps:

1. Pick up the cell phone with the back facing towards you.
2. Push down on the silver tab located at the top center of the back of the Motorola W490 cellphone.
3. While pushing down on the silver tab, slide the back cover towards the silver tab. Remove the back cover.

4. Remove the battery by pulling the battery from the top corners labeled "Pull Here" located on either side of the top of the battery.
5. Set the battery aside.

6. Use a plastic opening tool to make a gap between the SIM card and the phone.
7. Use your thumb and index finger to pull the SIM card from the phone.

8. Open phone so the keypad is facing up.

9. Insert a push pin into the notch located on the left side of the keypad and push the pin under the keypad membrane.

10. Continue working the pin under the keypad membrane until it is elevated enough to grasp.

11. Grasp the keypad membrane firmly and remove it from the phone.

12. After taking out the battery, locate four star-shaped 5.4 mm T6 screws on top and middle of the rear of the phone. Indicated by the red circles.
13. Remove all the screws using the Torx T6 Screwdriver.

14. Turn over the phone to the front side and open up the phone, displaying the keypad.
15. Use a plastic opening tool or your fingernail to make a gap between the front bottom cover and the phone.
16. Pull and set the glued plastic cover aside.
17. Be careful not to break the plastic cover when making a gap or pulling. The plastic cover is superglued to the phone.

18. Under the plastic cover, locate two star-shaped T5 screws.
19. Use the Torx T5 Screwdriver to remove the two screws.

20. Turn over the phone to the back side of phone where the battery was removed.
21. Use hands to remove the unscrewed rear frame of the phone.
22. Set aside the rear metal frame.

23. Identify the flex cable attachment. Indicated in a red square.
24. Detach the bottom half of the flex cable, pop it off of the circuit board.
25. Pick up the loosened circuit board from the phone and set aside.

26. Lay the circuit board down with the keypad facing up.

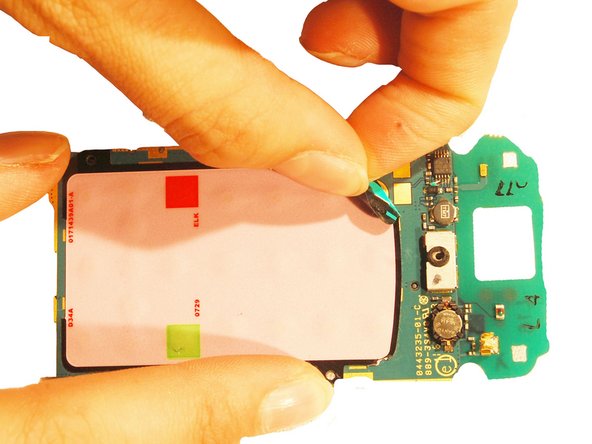

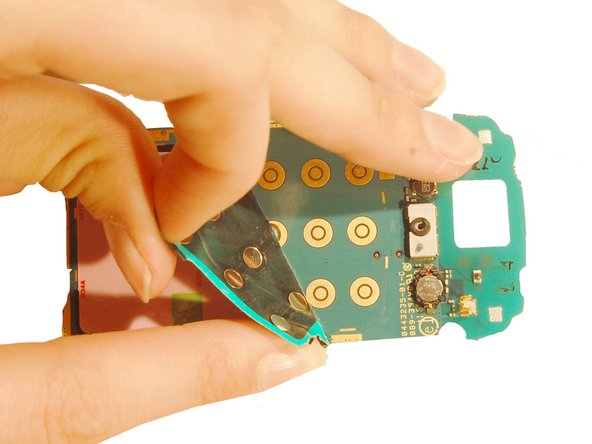

27. Grab the corner of the keypad and gently peel it away from the circuit board.
