Samsung Galaxy Note 10.1 3.5 mm Headphone Jack Replacement

ID: 115413

Description: If your headphones don't seem to be working...

Steps:

1. This is the back of the device and where you will begin to take it apart.
2. It is necessary to remove the silver piece covering the camera first before removing the bigger back piece.
3. Use a metal spudger to pop up the corner of the silver piece.
4. Use the plastic opening tools to pry along the edges of the silver piece.
5. Lift up the silver piece to reveal the rest of the back cover.

6. Remove the three 5mm screws indicated by the red circles with the Phillips #00 screwdriver.
7. Using the plastic opening tools pry along the bottom of the device, moving to the sides of the cover to the top.
8. Remove the back cover.
9. At this point use anti-static gloves or do NOT take it apart on carpet.

10. Remove the three 2 mm screws indicated by the red circles with the Phillips #00 screwdriver.

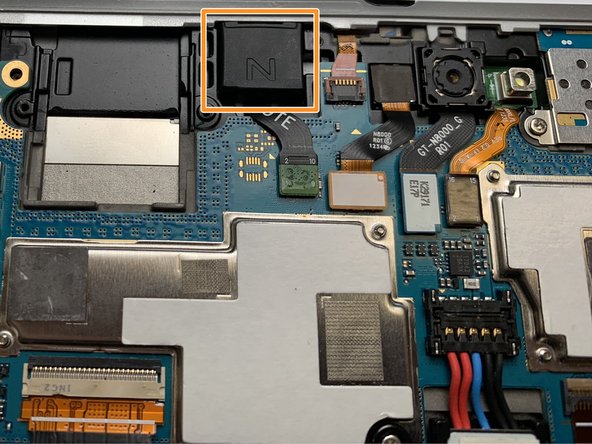

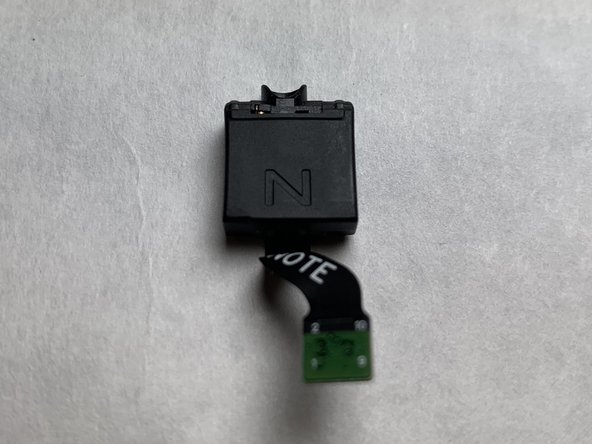

11. Starting with the black motherboard connector, remove the module indicated by the orange box in the second picture.
12. Replace the 3.5 mm auxiliary port with a similar model.
