OLPC XO-1.5 Screen Replacement

ID: 11652

Description: This guide will show you how to access the...

Steps:

1. Place the laptop upside down with the handle away from you.

2. Slide the tabs out, towards the green edges, to show the open lock symbol.
3. The right tab will stay in place, but the left tab must be held in position while you remove the battery.

4. Lift the middle of the battery to remove it.

5. Turn the laptop so it is resting on its bottom.
6. Open the laptop by rotating the green wings on the side up, then lifting the top half of the laptop.

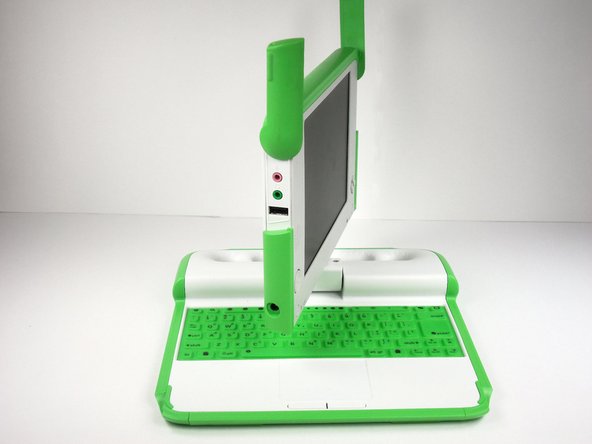

7. Rotate the top half of the laptop about 90 degrees.

8. Turn the laptop upside down, so you can see the screws on the bottom of the top half.

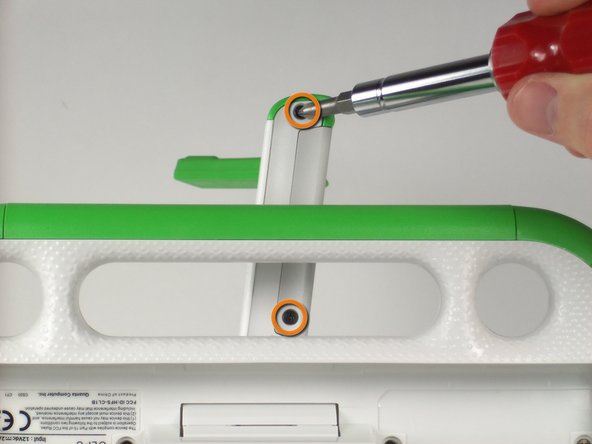

9. Remove the two 4mm screws with a Phillips #1 screwdriver.
10. Rotate the top half 180 degrees.
11. Remove the two 4mm screws with a Phillips #1 screwdriver.

12. Rotate the top of the laptop 90 degrees, so that it is facing you again.
13. Slide the green pieces off the device. They should come off easily.

14. Pull down on the white screen cover. It does not require much force.

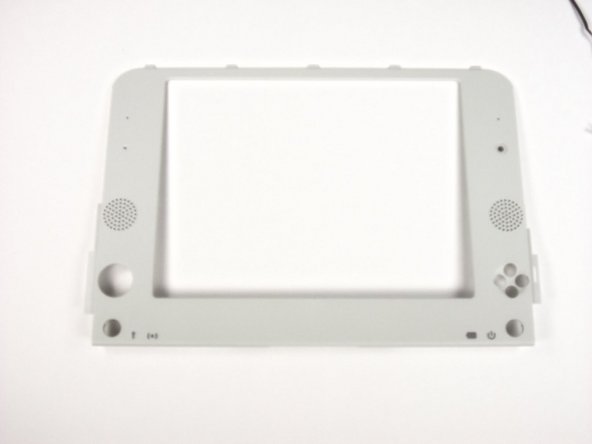

15. Remove the screen cover.

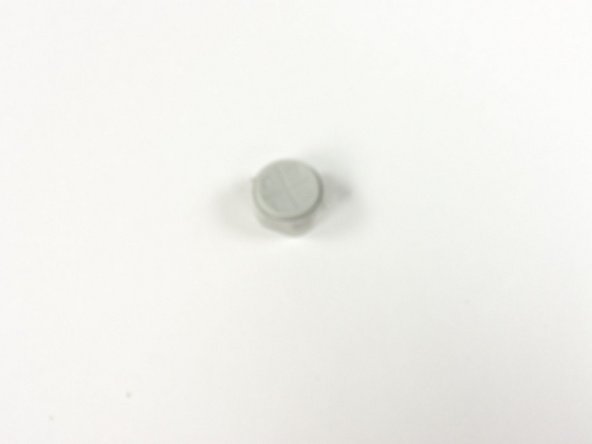

16. The game pad on the left sometimes falls during this step.

17. Unscrew the four 7.62mm Phillips #1 screws on either side of the screen.
18. The screen is still connected by ribbon cables. You can damage the cables if you remove the screen before disconnecting the cables.
19. Move the screen down a little to expose the ribbon cables.

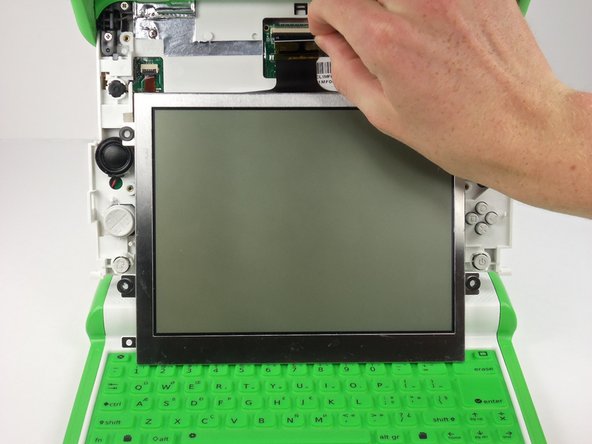

20. Flip up the tab right under the middle top of the screen.
21. Pull the black ribbon cable out of the socket.

22. Flip up the smaller tab under the left side of the screen.
23. Remove the small cable to separate the screen from the rest of the laptop.

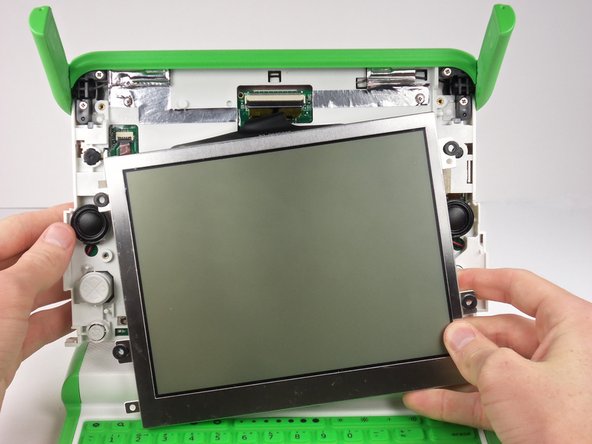

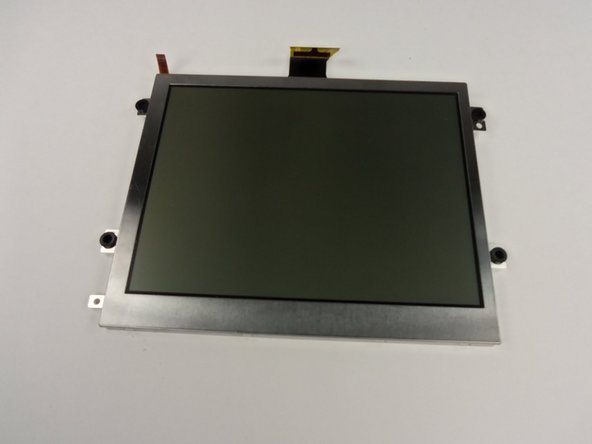

24. Gently remove the screen.
