Nokia 6200 Classic Vibrator Replacement

ID: 11673

Description: This guide requires that the front plate,...

Steps:

1. Pull up on both of the clips near the bottom of the phone as shown.
2. Lift off the front plate.

3. The keypad and LCD screen are revealed.

4. Separate the keypad from the phone and place aside.
5. Wipe off any excess dust from where the keypad was attached to the phone.

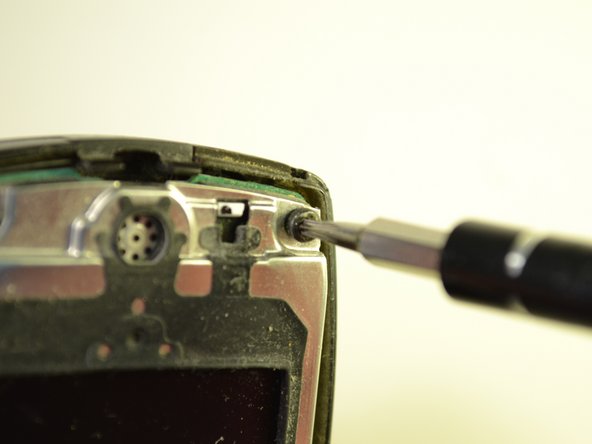

6. Remove the six screws highlighted by the markers using the screwdriver.

7. Separate the inside of the phone from the back of the phone.

8. Locate vibration device on the bottom of the back cover.

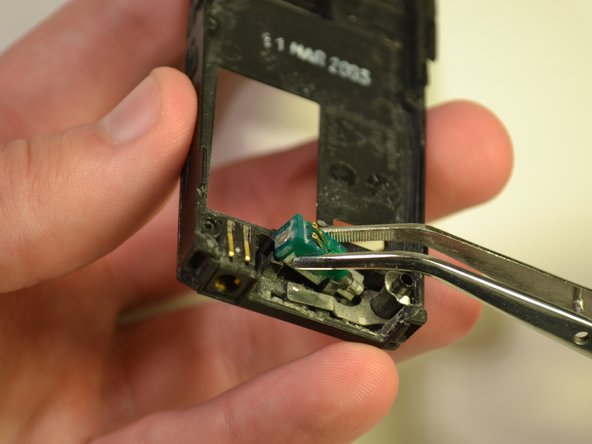

9. Pull up on the vibration device using tweezers.

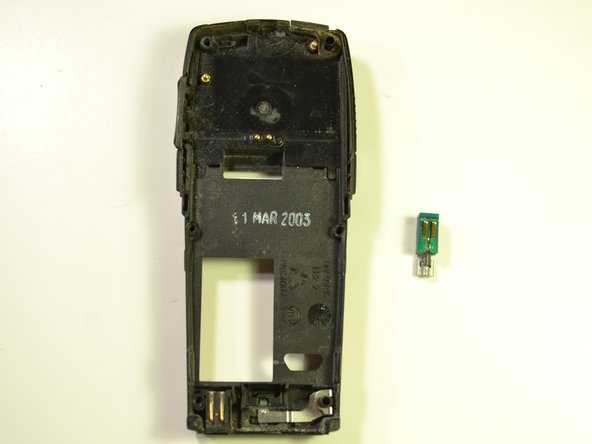

10. Remove the vibration device and place it aside.
