Motorola T720c Battery Replacement

ID: 11731

Description: Is your battery losing its charge faster than...

Steps:

1. On the back of the phone, locate the tab with the down arrow.
2. Using your finger, press the tab and slide the back cover down to release it from the phone.

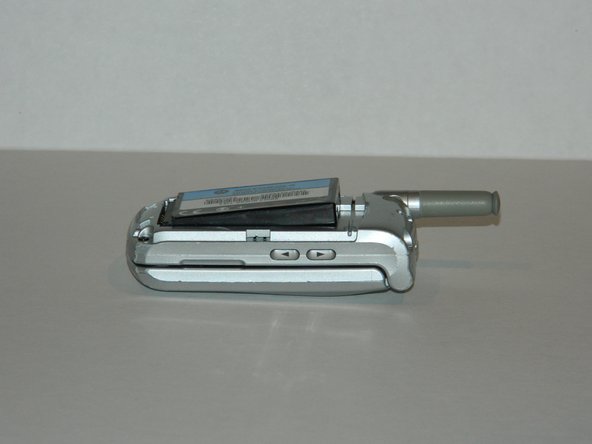

3. Inserting your finger in the recess at the top edge of the battery, pull the battery away from the housing to remove it.

4. Locate the stepped indentations on the front of the battery.
5. With the front of the battery facing outward, insert the bottom edge into the battery housing and press battery into the phone .
6. Replace the back cover (not shown).
