Google Pixel XL Loudspeaker Replacement

ID: 117498

Description: There currently aren't any widespread issues...

Steps:

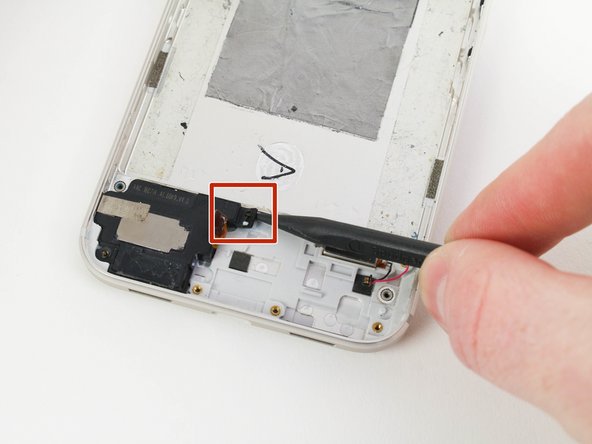

  1. Slide the flat end of a spudger underneath the ribbon cable and pry up to separate it from the device.
    2. Step image Step image

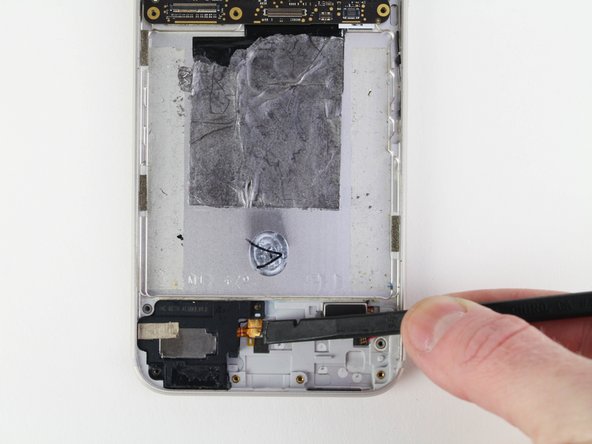

  2. Work the pointed end of a spudger underneath the loudspeaker anchor point and pry upwards.
    3. Step image Step image

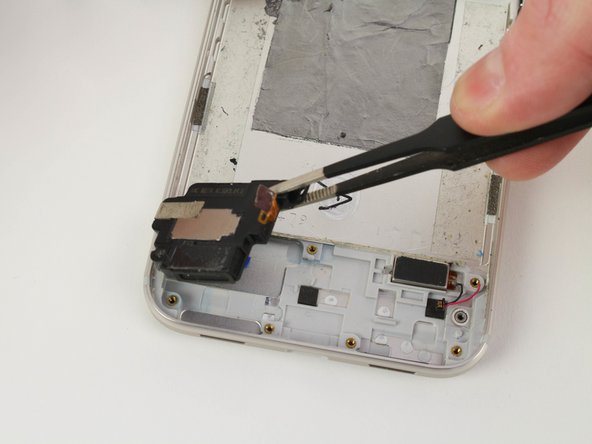

  3. Remove the loudspeaker.
    4. Step image
