Google Pixel XL Motherboard Replacement

ID: 117499

Description: If you're having issues with the overall...

Steps:

1. Remove the two remaining 3mm T5 screws which secure the motherboard in place.

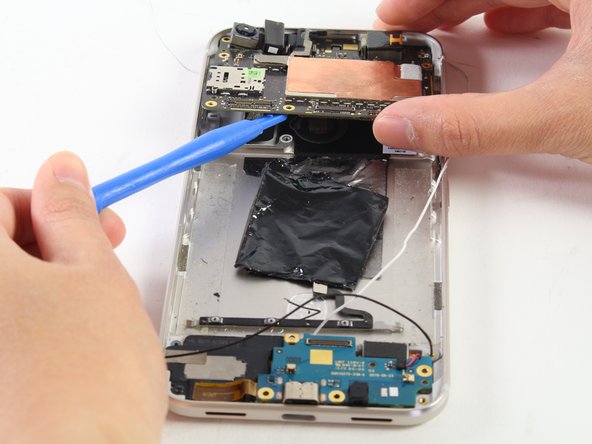

2. Slightly lift the motherboard using the plastic opening tool to access the connector which holds the motherboard from the bottom.

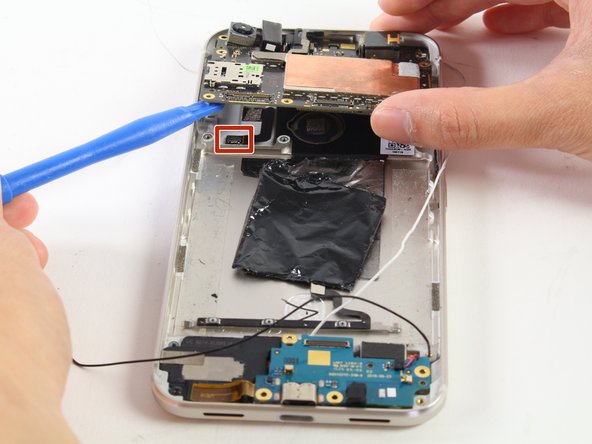

3. Disconnect the connector by pulling it away from the board.

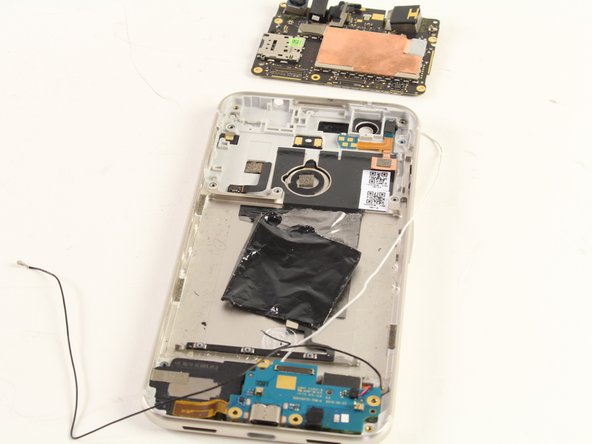

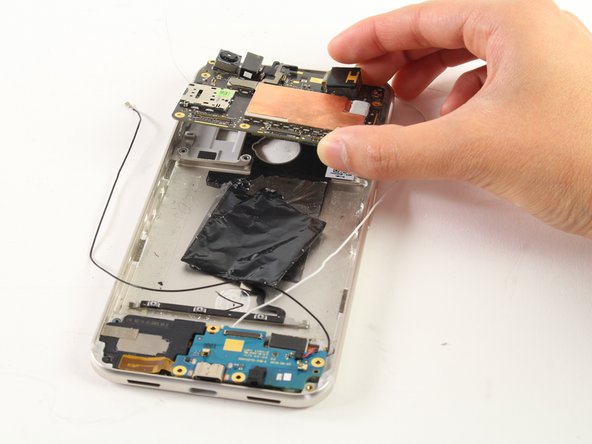

4. Using your fingers, lift the motherboard out of the phone.
