Rowenta silent force extreme RO5931 main brush Teardown

ID: 118985

Description: The push button did not lower the brush...

Steps:

1. Turn off the vacuum and unplug it from the outlet.
2. Unmount the main brush head from the cleaner pipe.

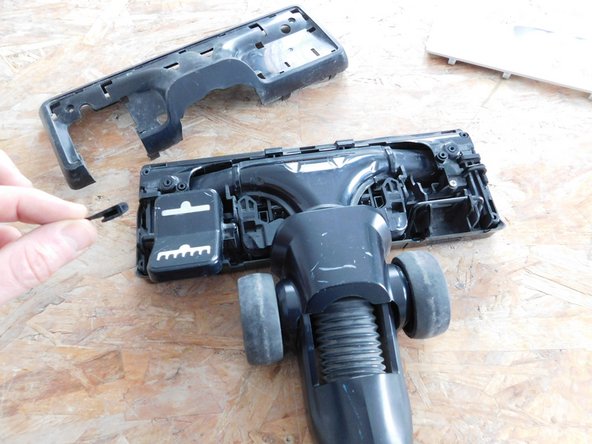

3. Unsnap the clips of the top cover with a small slot screwdriver.
4. Remove the top cover of the brush.

5. Unscrew both Philips screws from the top of the brush.

6. Unscrew both security torx screws.

7. Smoothly and carefully take out the top of the brush head.
8. Take some time to search for the defect.
9. Remove broken pieces and repair if you can.
10. Clean up the inner parts of the brush with a smooth cloth. Remove dust, grains that could damage the inner parts of the brush.

11. Push the retract button : the brush must be lowered.
