Hover-1 XLS Back Seat Light Replacement

ID: 119163

Description: A broken light on a Hover-1 XLS bike is a...

Steps:

  1. Remove the seat by removing the six 16mm screws with a Phillips #2 screwdriver.
  2. Remember that the seat is still connected by the wiring once you unscrew it. Pulling too hard can damage the connector.
    3. Step image Step image
  3. Disconnect the wires by pushing the levers on either side of the connector and on top.
  4. Remove the seat from the bike.
    5. Step image Step image Step image
  5. Use a Phillips #2 screwdriver to remove the four 10mm screws on the bottom of the back seat.
    6. Step image

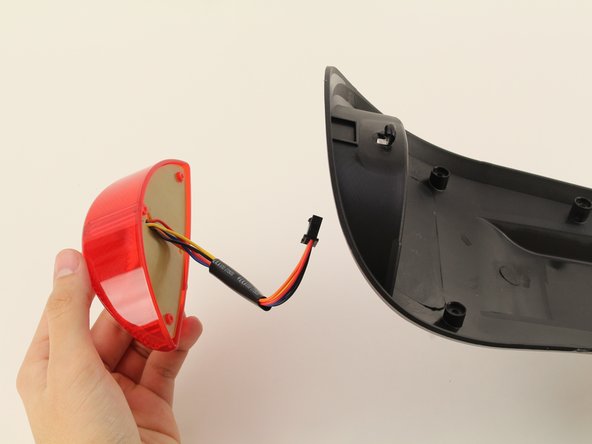

  6. Pull the light from behind the bottom of the seat frame. Pull the wiring all the way through.
    7. Step image Step image
