How to replace stripped REV-41 servos.

ID: 122068

Description: Replacing servos does not look easy. After...

Steps:

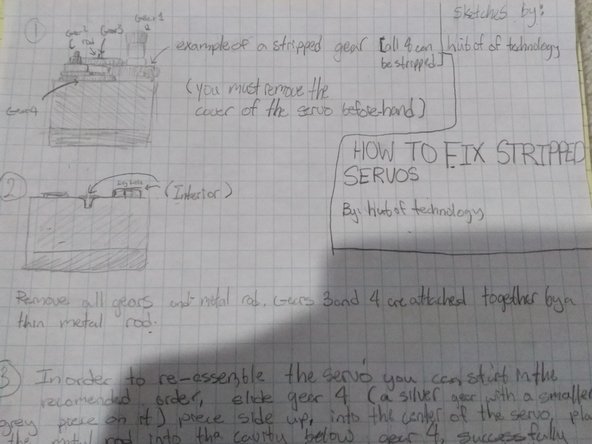

  1. This is half of a diagram that I drew to help beginners fix stripped servos. In order to fix them you must disassemble the servo, remove the stripped gear and prepare new gears for use. I suggest taking a image of the stripped servo as it will help with assembly and documentation. Use step 4's picture to help you re-assemble your servo.
    2. Step image

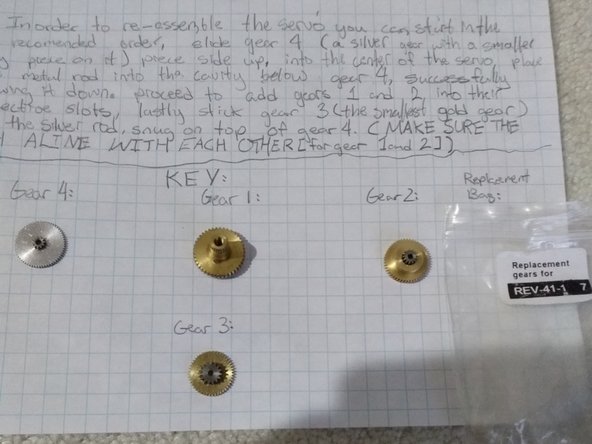

  2. This half of the picture contains instructions to fix the stripped REV servo and a key to help interpret my crude outlines.
    3. Step image

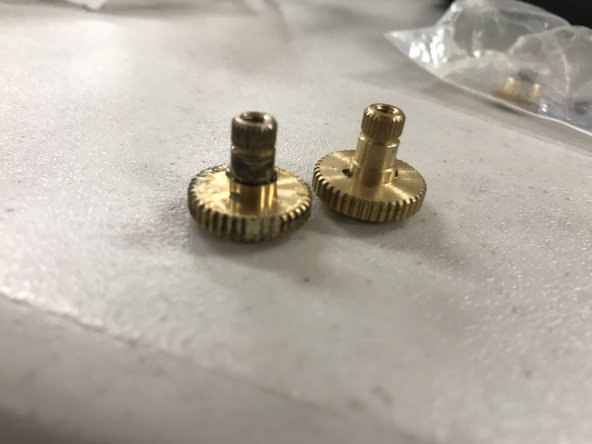

  3. This picture is a comparison between a stripped gear and a new gear. Stripped gears generally will be missing teeth or will be grinded/sanded down to the point there they are partially smooth.
    4. Step image

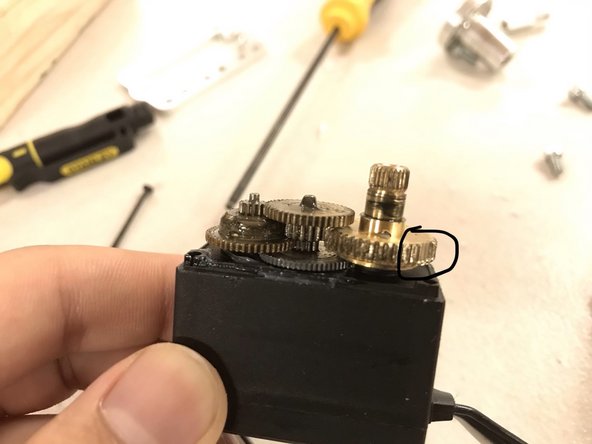

  4. As you can see from the picture the servo has the top already removed, the picture shows the stripped servo (Circled in black) To remove the servo we used a screwdriver(Specifics are listed in the details) You might need grease to help with the replacement gears as they are not greased beforehand.
    5. Step image
