X-Treme Tablet Generation 2 Volume Button Replacement

ID: 122236

Description: Use this guide to replace a malfunctioning...

Steps:

1. Remove the two screws using a Phillips #0 screwdriver.
2. Pry the back cover carefully and continue going around the device.

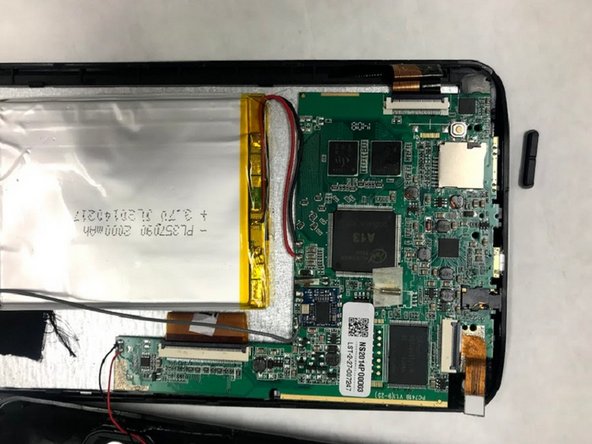

3. Remove three screws that are attached to the motherboard using the Phillips #0 screwdriver.
4. Carefully lift the motherboard to free up the faulty volume button and take it out.

5. Replace the volume button.
6. For easy installation, have the tablet placed vertically while inserting the volume button.
