The Pave Parisien Speaker: Battery replacement

ID: 122383

Description: This tutorial will help you replace the battery...

Steps:

1. Remove the protective grille by lifting one of the four corners.

2. Remove the four screws using a m4 allen wrench

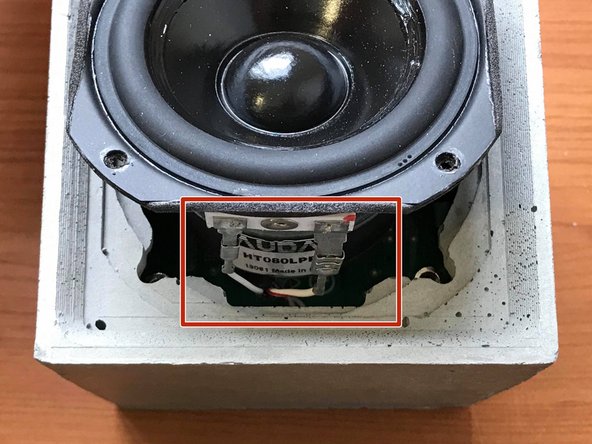

3. Pull the speaker out a bit to access the connectors

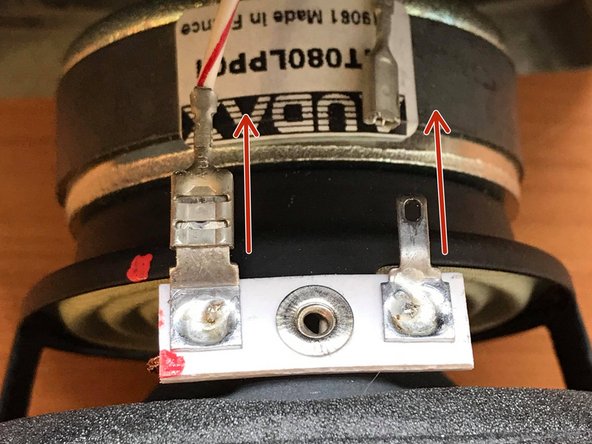

4. With light gentle movements, pull and disconnect the two cables from the connections

5. Pull the speaker completely out of the recessed compartment

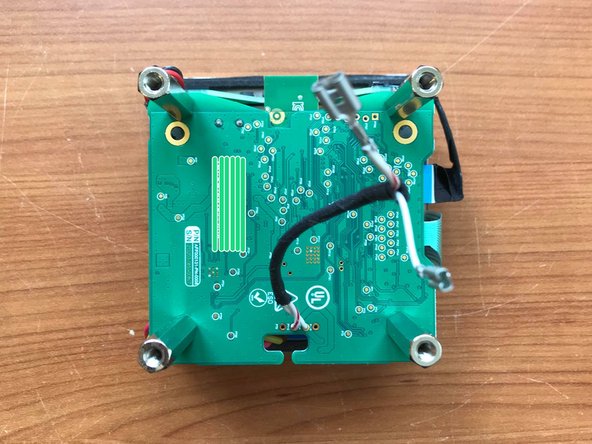

6. Gently pull the board behind the speaker out and place on a flat surface

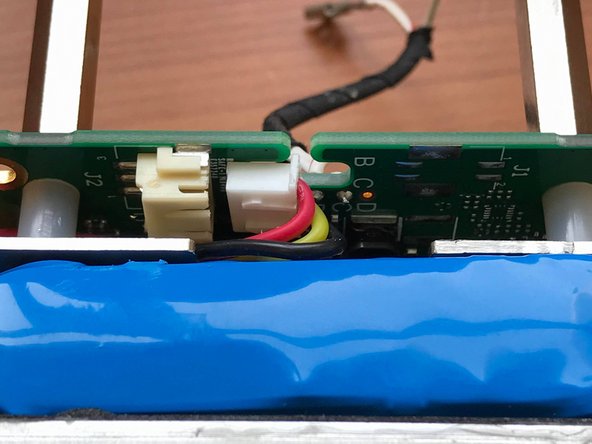

7. Disconnect the battery connector from the board

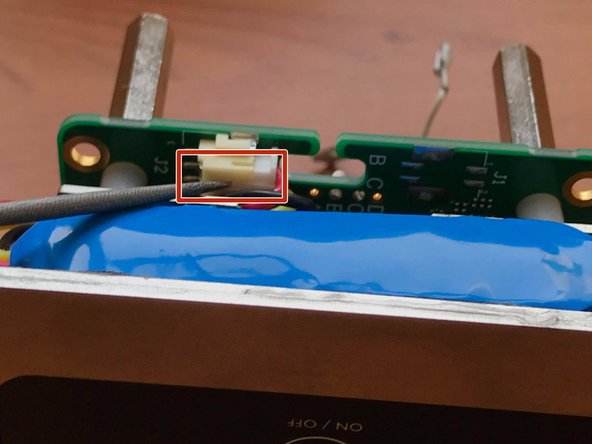

8. Be careful to pull gently using a small screwdriver to pry up the clip, then apply gentle pressure

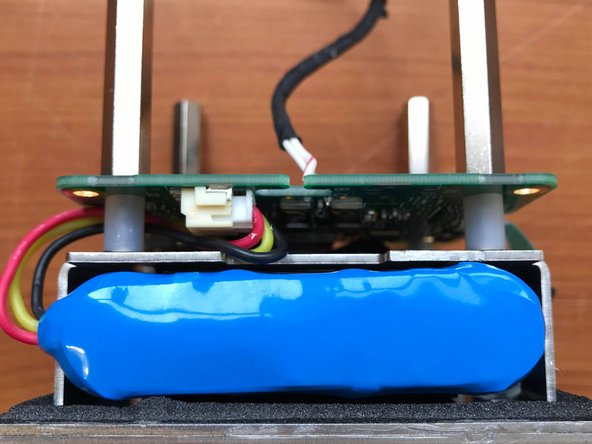

9. Push the battery from the rear towards the opening where the wires are

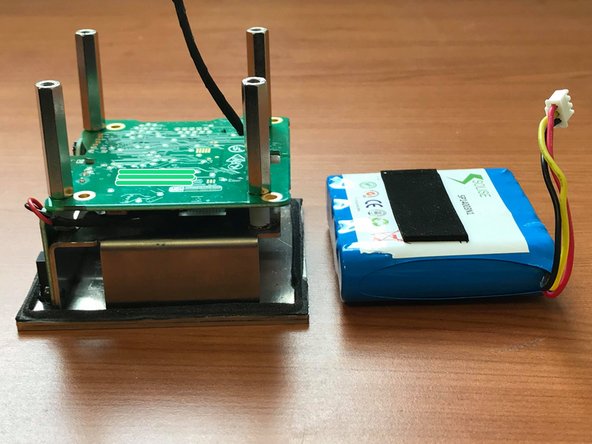

10. The battery is out and now it can be changed

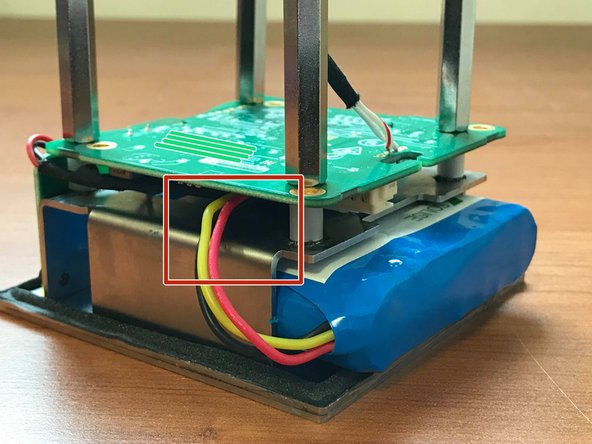

11. Pass the connector through the space that is indicated for it

12. The texture of this surface is different from the other three faces. Orient yourself to how it fits correctly.

13. First connect the positive and negative wires, then slide the speaker in the enclosure in the right orientation

14. Finally replace the speaker grill: your Pave Parisien is ready to use!
