Le Pavé Parisien V1: Replacing the loudspeaker

ID: 122461

Description: Follow this tutorial in order to easily replace...

Steps:

1. Remove the speaker protective grill by first lifting one corner.

2. Remove the 4 speaker retaining screws using an M4 allen wrench.

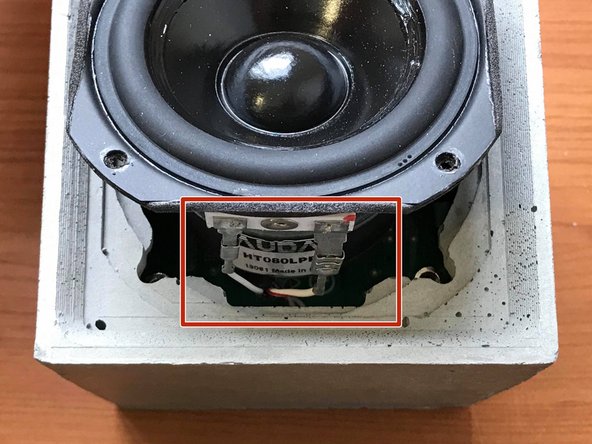

3. Lift the speaker out of the concrete shell in order to access the connections.

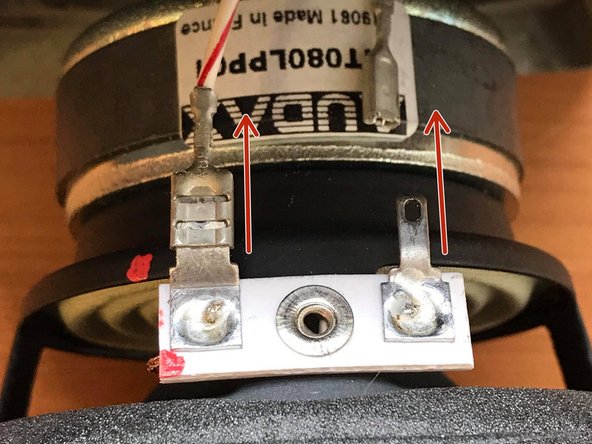

4. To disconnect the speker, pull each of the cables, gripping the connector and easing it from side to side.
5. You only have to connect the replacement speaker and follow the instructions in reverse in order to reassemble your Pavé Parisien.

6. Connect the speaker as in step 3. Take care to ensure the connectors are on the side where there is a notch in the concrete.

7. You only have to replace the screws and the protective grill and your Pavé Parisien is reassembled!
