Le Pavé Parisien: Replacement of the Concrete Shell

ID: 122462

Description:

Steps:

1. Remove the speaker protective grille by first lifting one of the 4 corners.

2. Remove the 4 screws of the speaker using a torque screwdriver for M4 screws.

3. Pull the speaker out of the concrete casing to make the connections accessible.

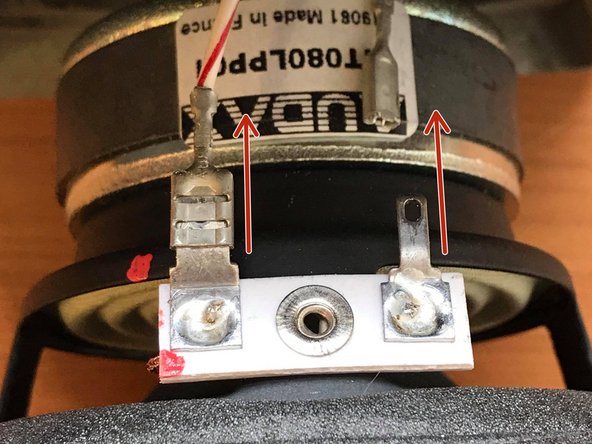

4. To disconnect the speaker, pull each of the 2 cables down by their connector, making small left-to-right movements.

5. Remove the speaker from the concrete casing.

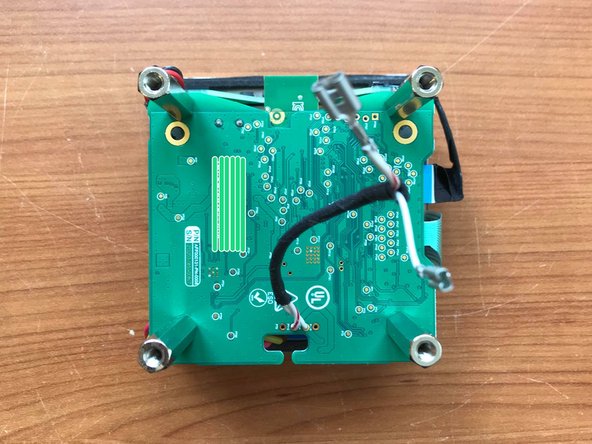

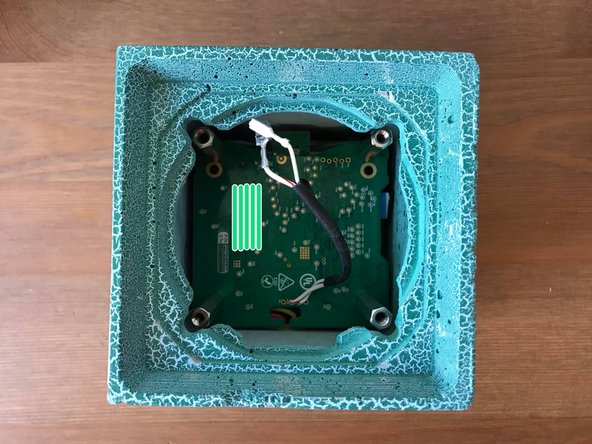

6. As the concrete casing and the electronic basket are separated, lift the concrete casing to separate it from the basket.

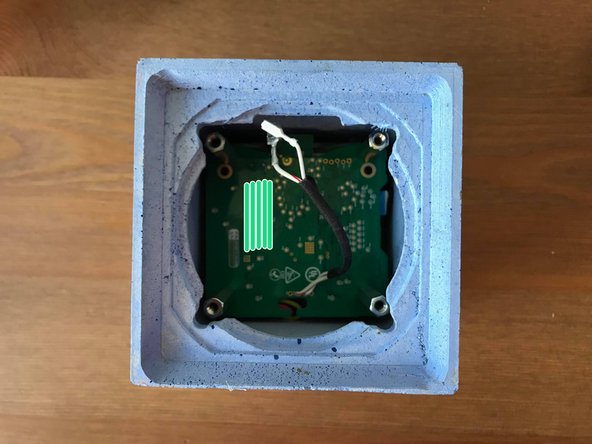

7. The underside of the concrete shell has a different texture from the others, so be careful to position it correctly.

8. Connect the speaker as in step 3. Be careful to place the speaker connectors on the side of the concrete shell that includes a notch.

9. All you have to do is screw it back on and place the protective grid: your Pavé Parisien is assembled!
