Dell Latitude E7470 Battery Removal

ID: 127666

Description: This guide introduces how to remove the battery...

Steps:

  1. Remove the eight 4 mm screws on the back cover using a Phillips #0 screwdriver.
    2. Step image
  2. Use the pull tab on the battery connector to lift the connector straight up off its socket on the motherboard, disconnecting it.
    3. Step image

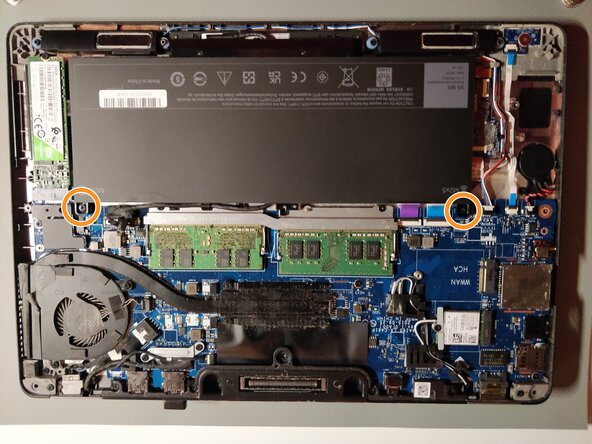

  3. Remove the single 4 mm Phillips screw securing the bottom left corner of the battery.
  4. If you are removing an extended capacity battery (see third photo), remove the Phillips screw securing the bottom right corner of the battery.
    5. Step image Step image Step image
  5. Remove the battery from the laptop.
    6. Step image
