Swann Wi-Fi Indoor Security Camera SD Card Replacement

ID: 127806

Description: This repair guide shows how to access the micro...

Steps:

1. Use the Phillips #0 to remove the screw located on the back of the camera above the mount.
2. Slide the mount out from the bottom of the device.

3. Remove the back of the case by placing a iFixit opening tool underneath the edge of the case and prying it up.

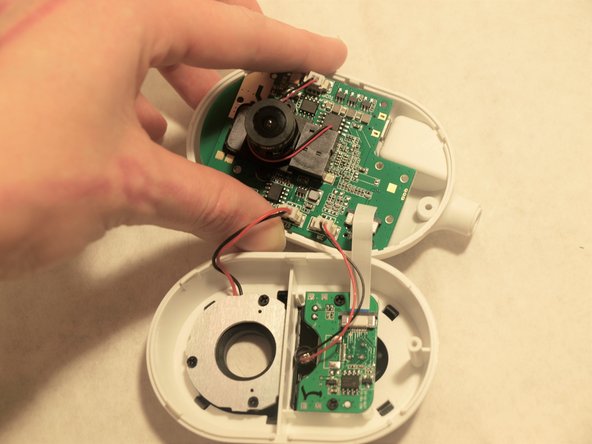

4. Carefully remove the back of the case without pulling the cables connected to the motherboard and the speaker on the back of the case.

5. Facing the front of the camera, remove the four 2.0 mm Phillips #0 black screws that hold the back of the motherboard to the case.

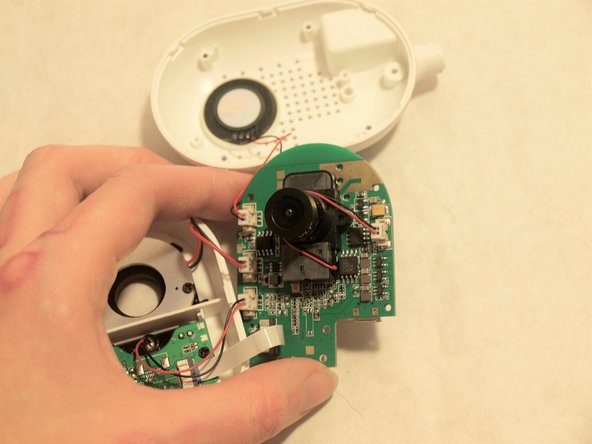

6. With the motherboard removed, flip it over and remove the SD card by pushing in the SD card, releasing it.
