Milwaukee Hackzall 2625-20 Trigger Replacement

ID: 127858

Description: If the trigger assembly on your Milwaukee...

Steps:

1. Use a T9 Torx screwdriver to remove the one 7.0 mm screw.
2. Use a T10 Torx screwdriver to remove the one 14.0 mm screw.
3. Use a T15 Torx screwdriver for the remaining eight 16.0 mm screws.
4. Remove the casing to reveal the internal components.

5. Use a soldering iron to desolder the connections on the back of the trigger assembly.
6. Practice caution while soldering. Ensure proper safety and soldering procedure is followed to avoid component damage and injury.
7. For more information on soldering, check out this guide.

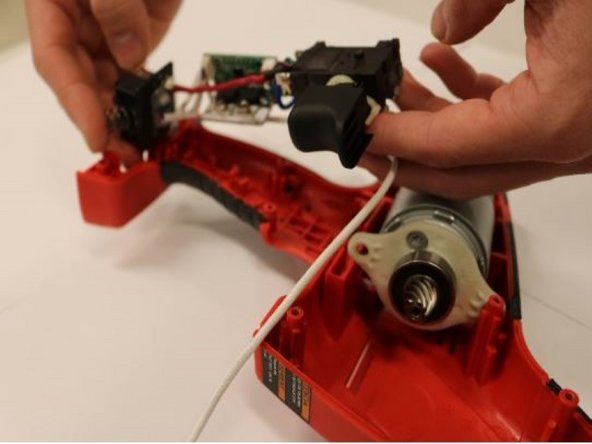

8. Remove the rest of the trigger assembly from the case.
