JBL SoundBoost Speaker Teardown

ID: 130252

Description:

Steps:

  1. Peel the sticker from the back
    2. Step image Step image
  2. Unscrew the 8 screws from the back
    3. Step image
  3. Extract the PCB from case
    4. Step image

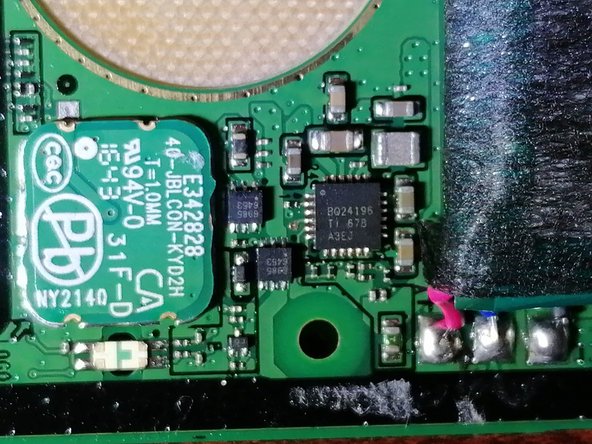

  4. BQ24196 - battery charger
  5. TFA9890A - speaker driver

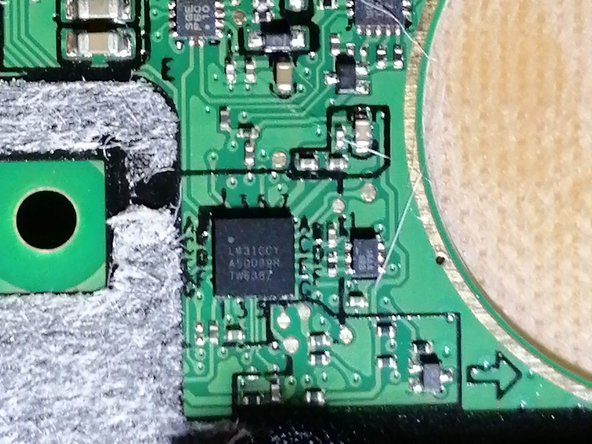

  6. STM32L431xx - ARM Cortex M4 (L431CCY mark on chip)
    7. Step image Step image Step image

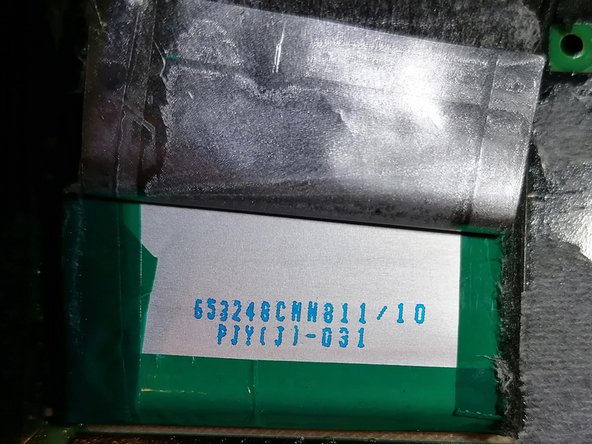

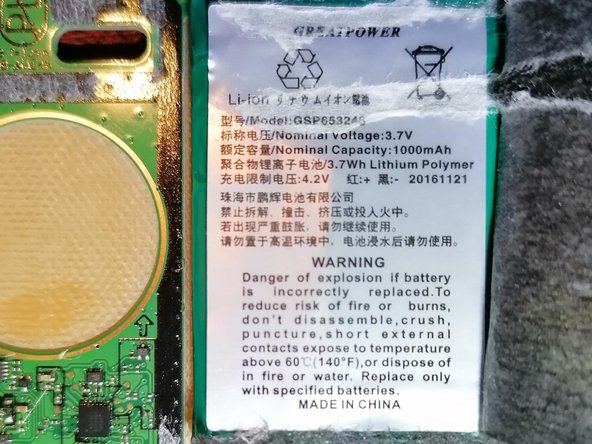

  7. 3.7V 1000mAh battery
    8. Step image Step image
  8. The PCB has exposed test pads for: I2S, JTAG, UART, Amp output, Power button and some pads named TM#
    9. Step image
