Motorola Moto X4 Battery Replacement

ID: 130531

Description: The official guide has been updated and can be...

Steps:

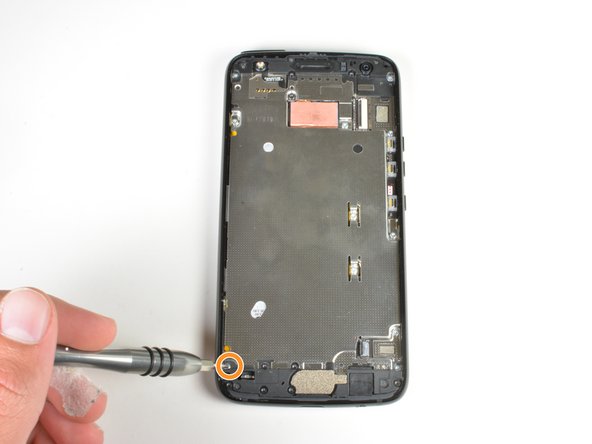

1. Remove the nine 3mm T4 Torx screws securing the silver plate to the device.

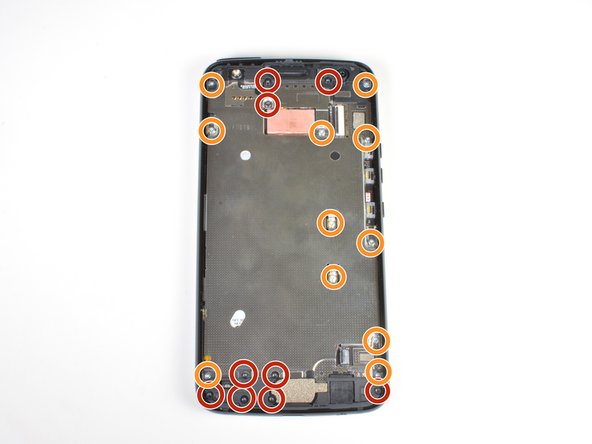

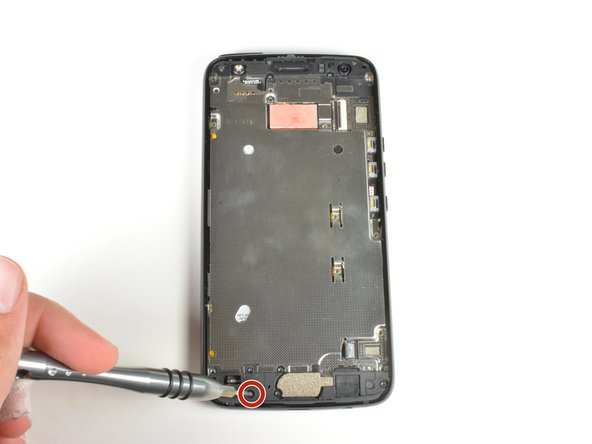

2. Remove the eleven 2mm T3 Torx screws securing the plate to the device.
3. Incorrect placement of these screws during reassembly will cause permanent damage to your device's motherboard.

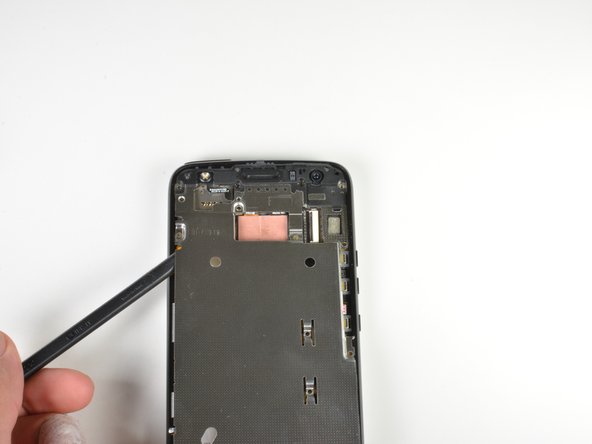

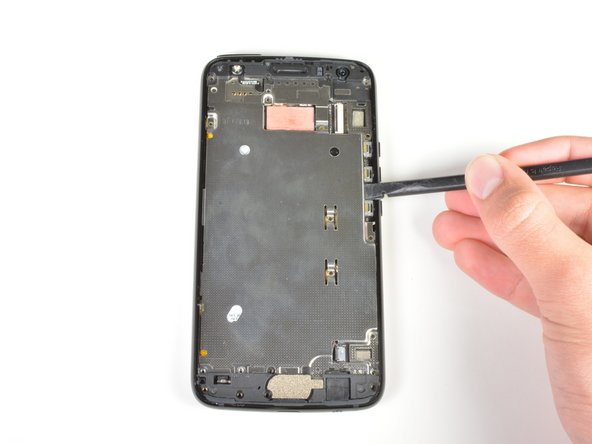

4. Use the flat end of a spudger to pry up the silver plate from both sides.

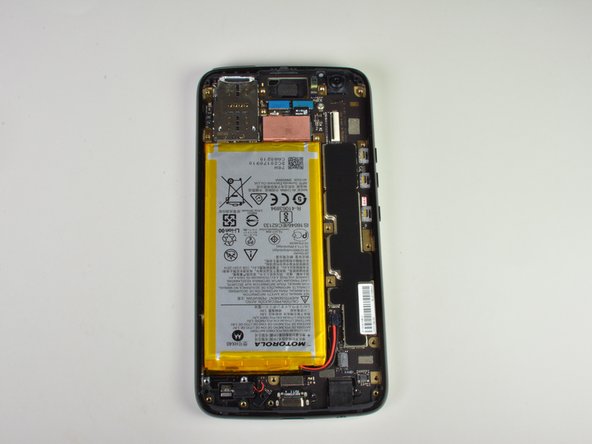

5. Remove the plate from the device.
6. Several clips hold the plate in place so there may be a clicking sound.

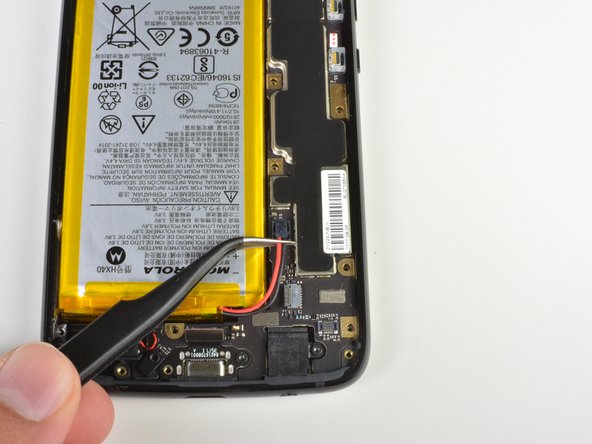

7. Use a pair of tweezers to gently lift the battery connector wire.

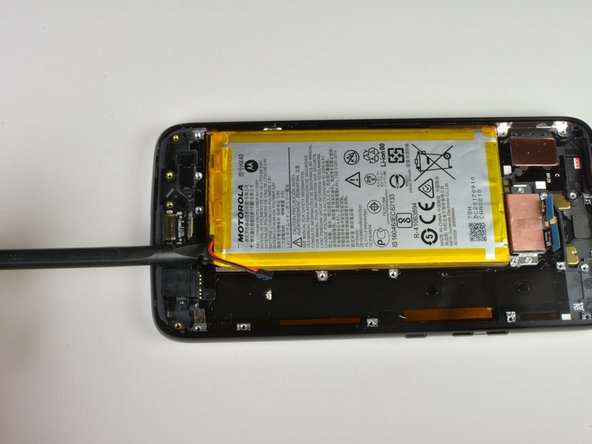

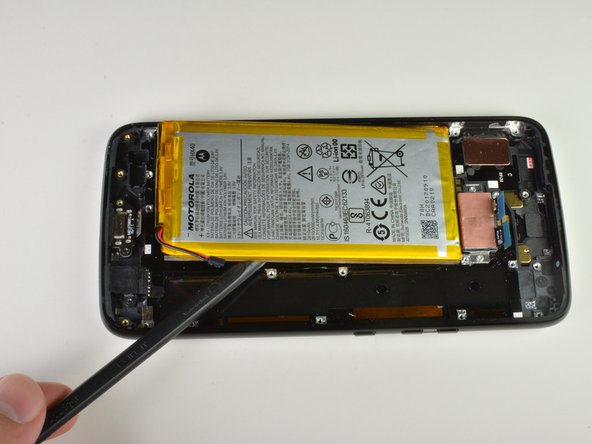

8. Use the flat end of the spudger to gently pry the battery from all sides from its casing.
9. The battery is secured to the motherboard with a mild adhesive. Peel slowly; be careful to not puncture or twist the battery.
