Maytag Atlantis W10219156 Hub and Seal Kit Replacement

ID: 132544

Description: Hello, The Atlantis MAV9750AWW is very good...

Steps:

1. https://www.youtube.com/watch?v=6qSiuTtr...

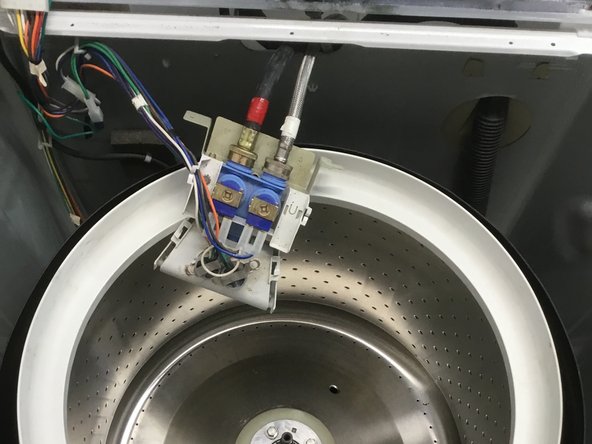

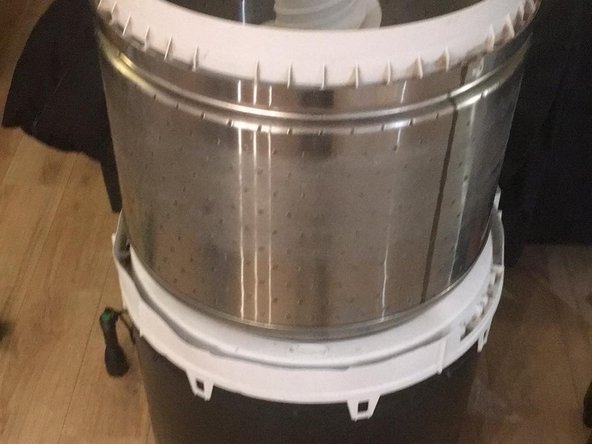

2. remove agitator, and thub

3. remove thub

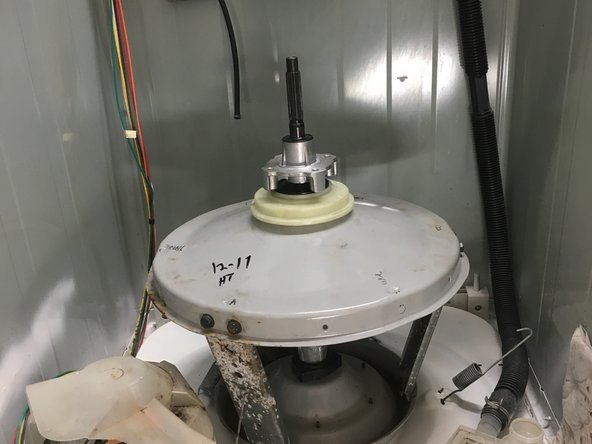

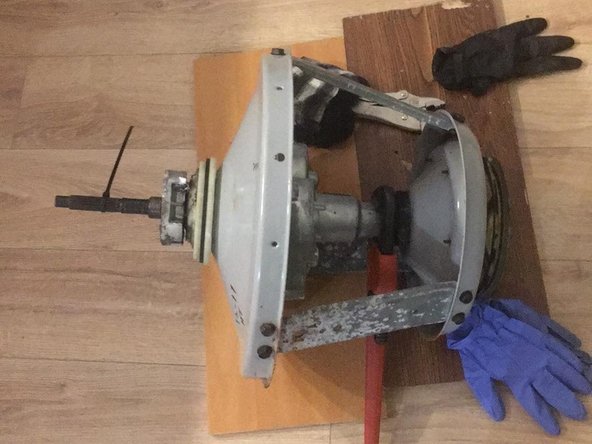

4. remove transmission out of the washer

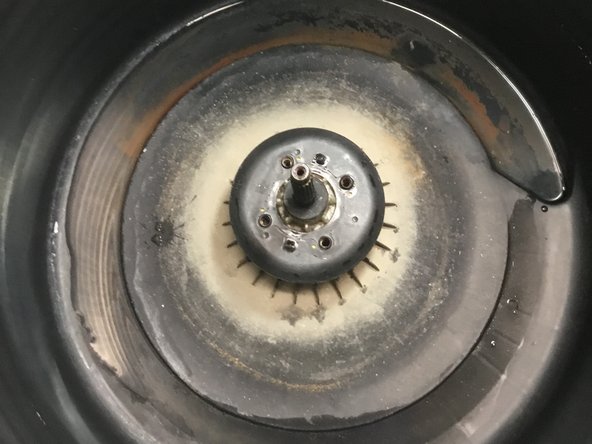

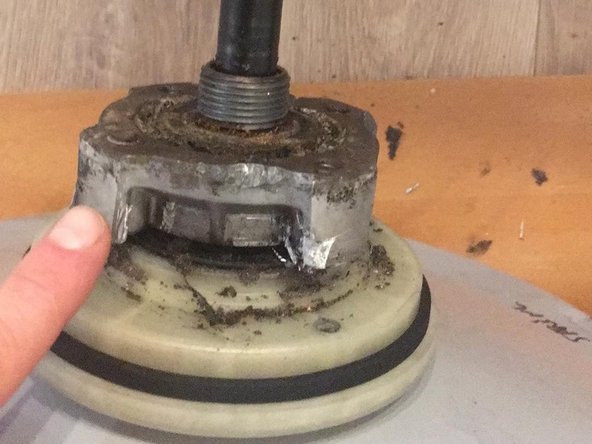

5. remove hub by unscrew it. use two pipe wrech or cut it.

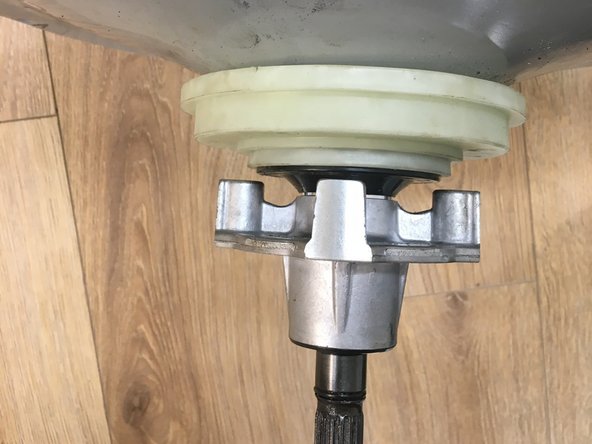

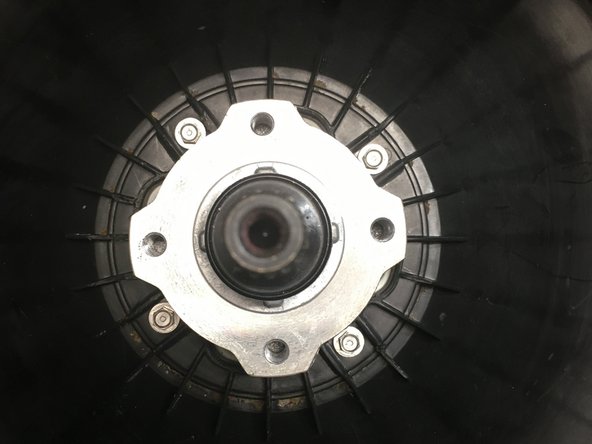

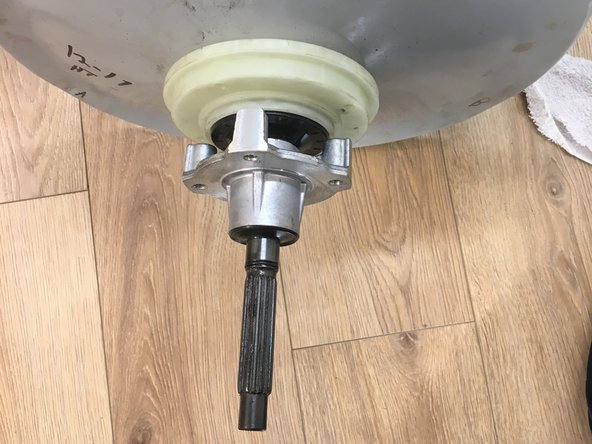

6. assemble new part on the transmission. The 4 srew

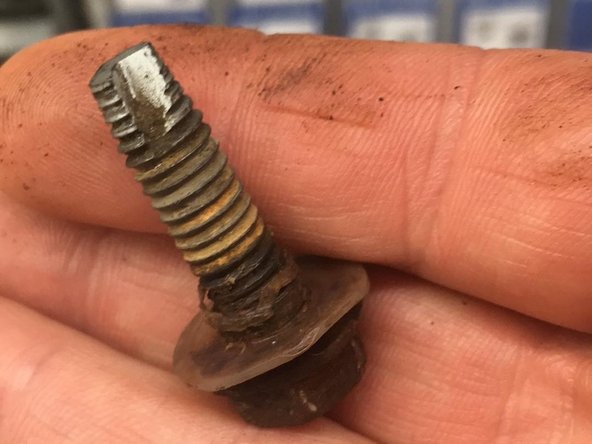

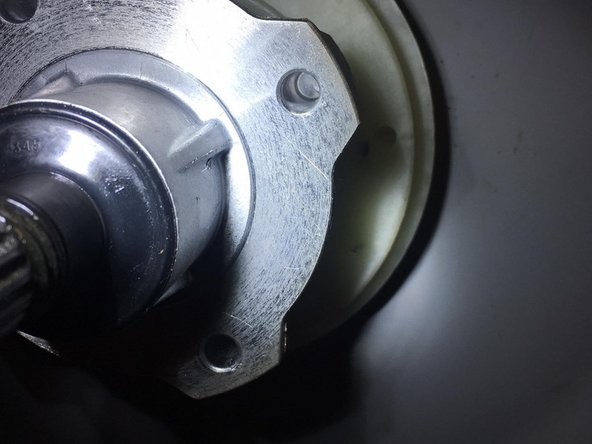

7. The original screw was 4 x 1" M8 - 1.5 self treaded, screw was damage and rusty, New from Maytag are 10$ each and are not so good. I change it for stainless stel screw. Could not find M8 on stainelss stel I use a equivalent 5/16-18.

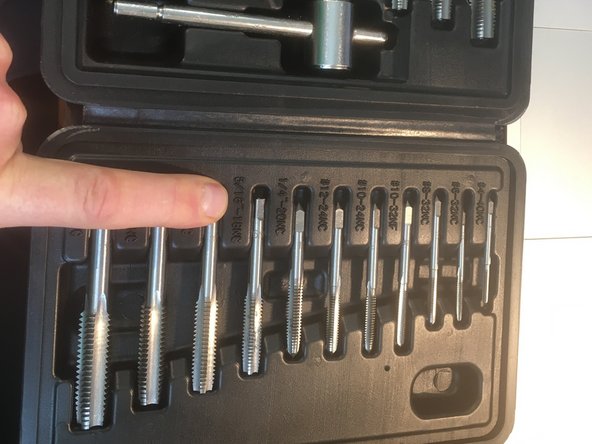

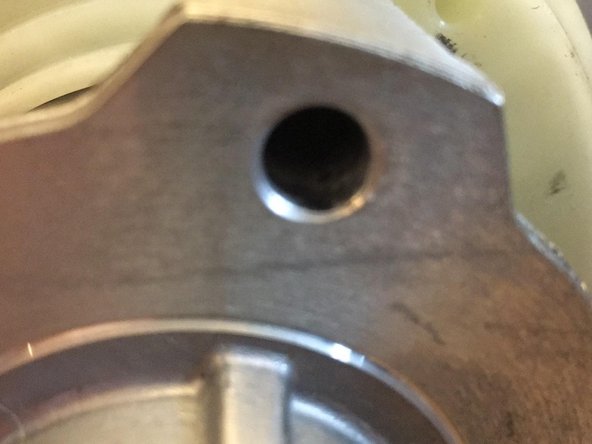

8. Use tap to tread the hub. Don't forget to remplace the nylon washer and I add a stainless stel washer also.

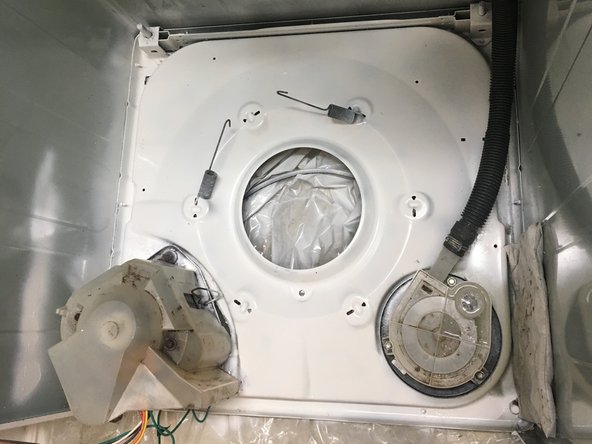

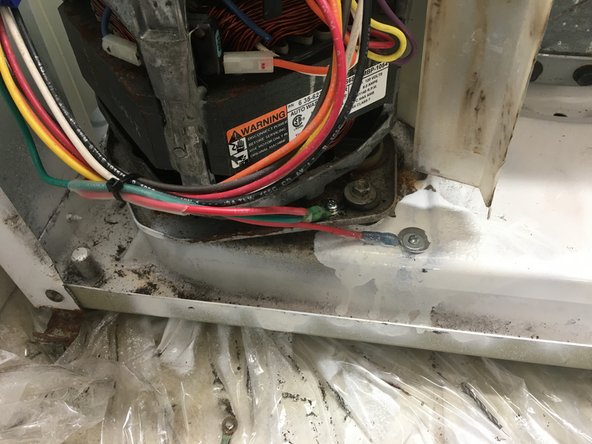

9. remove corrosion if required, check electrical connection. (I paint the botom and re-do ground connection.)

10. re-assemble thub and cuve
