Texas Insturments TI-84 Plus Color Silver Edition Teardown

ID: 132595

Description: A teardown of the Ti-84 Plus CSE calculator

Steps:

1. Wisdom

2. Unplug the battery.
3. Be careful not to fray cable while unplugging.

4. Remove the back cover by removing the 6 Pentalobe screws (P6)
5. The front cover can be taken off by prying it off from the front of the device

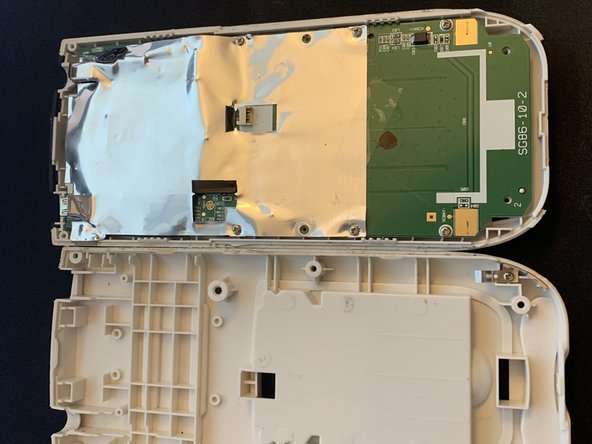

6. Then pry off the back cover it can be a little challenging but take your time

7. Remove the 6 Philips screws holding the mother board and if you want remove the foil just to see the full board itself
8. To change out the buttons take out the grey rubber sheet that separates them from the board (be careful with the buttons as they will fall out)
