Milwaukee Hole Hawg 1675-1 Switch Replacement

ID: 132701

Description: Has your Milwaukee Hole Hawg stopped responding...

Steps:

1. Ensure that the drill is unplugged.
2. Position the drill so that it is on its side.

3. Remove the four 19mm Torx T15 screws.
4. Remove the two 25mm Torx T27 screw.

5. Remove the top portion of the handle.

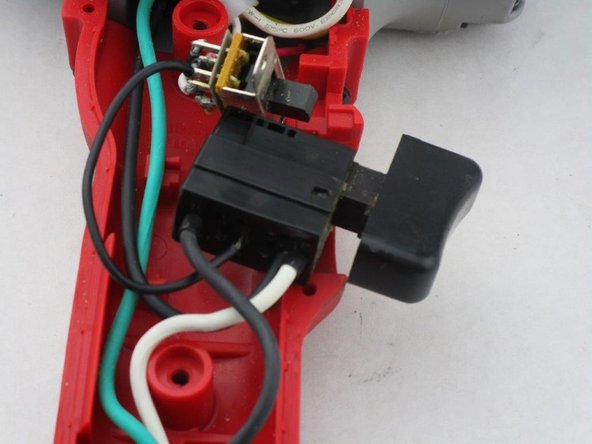

6. Pay special attention to where each wire connects.
7. Lift up on the switch and disconnect the wires.
8. Use a #0 flathead screwdriver to release tension on the wires.
