2007-2011 Toyota Camry Headlight Bulb Replacement

ID: 132705

Description: Headlight bulbs in all cars will eventually be...

Steps:

  1. Pop up the hood of the car.
  2. Step image Step image
  3. Locate the headlight bulb on the inside of the hood and hold onto the bulb.
  4. The other headlight bulb is in the same area on the other side of the car.
  5. Step image Step image
  6. Turn counterclockwise (1/4 of a turn) to remove the bulb and its attached plug from the socket.
  7. This step is applied for both headlight bulbs.
  8. Step image Step image

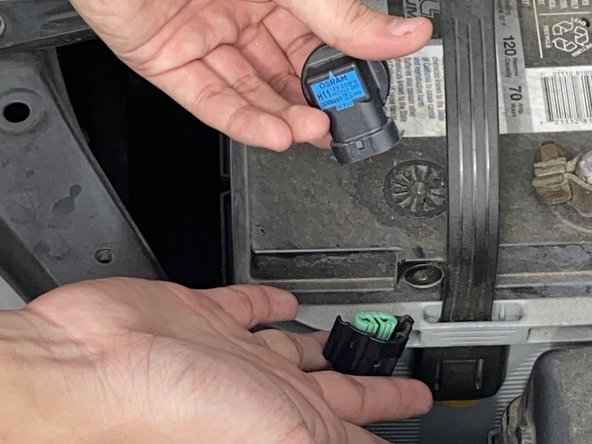

  9. Hold onto the bulb with one hand while holding down the clip at the bottom of the plug to remove the bulb.
  10. Step image Step image

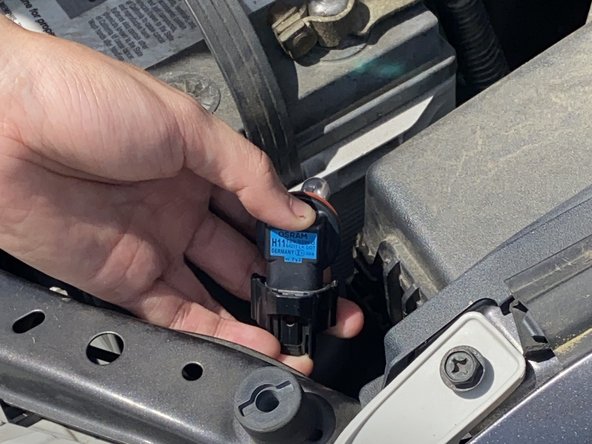

  11. Remove the new bulb from its package.
  12. Make sure to not touch the glass part with your hands. This can cause a hot spot on the bulb, making it burn out faster. Wipe the bulb with a paper towel if contact was made.
  13. Step image Step image

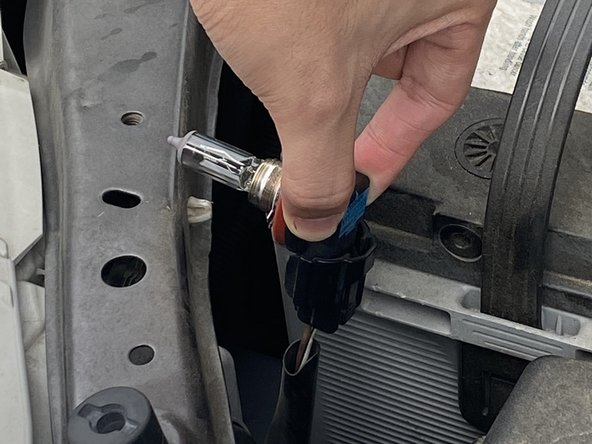

  14. Place the bulb back into the plug and press down until it click into place.
  15. The bulb only goes in one way. Make sure the plug and the bulb are facing the same direction.
  16. Step image Step image
