2004 Toyota 4Runner Rear Wiper Arm Replacement

ID: 132709

Description: A broken rear wiper arm is a very common issue...

Steps:

1. The plastic covering can be easily broken. Remove cautiously.

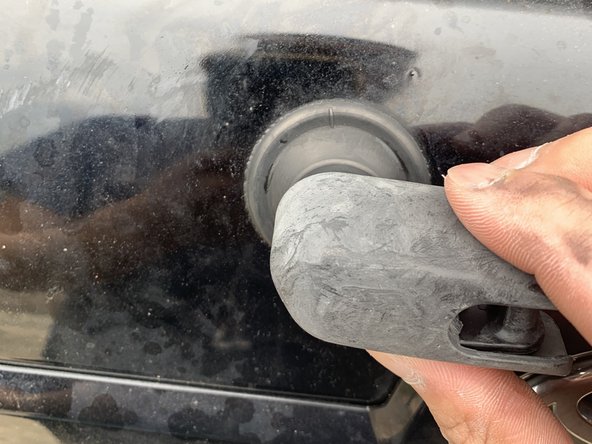

2. Remove the plastic covering that is hiding the screw.

3. Let the lubricant soak for a minimum of 5 minutes.

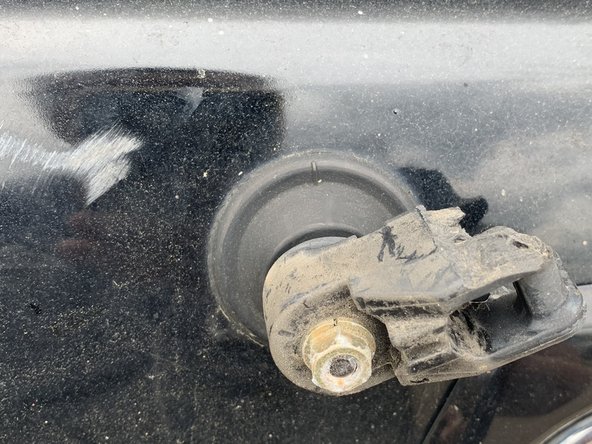

4. Spray/ drench the screw/ lug-nut using WD-40 to create an easy lug-nut removal.

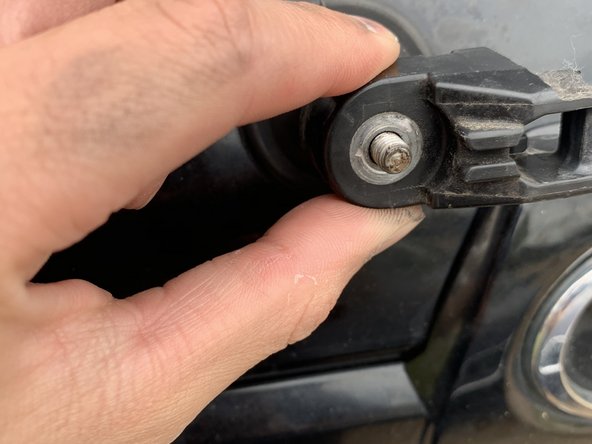

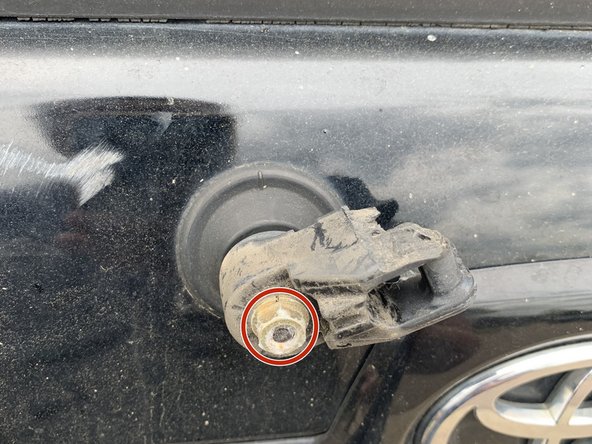

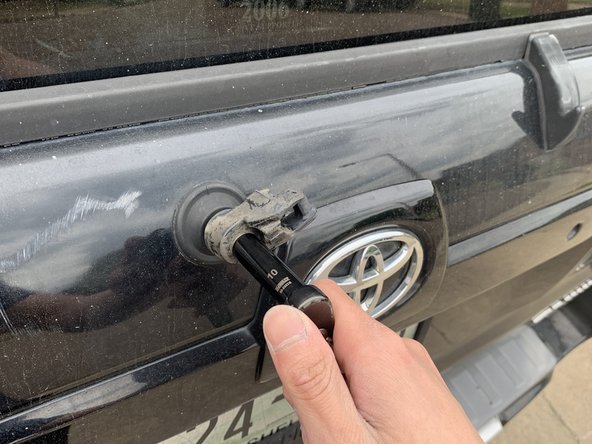

5. Using a 10mm socket, remove the lug-nut.

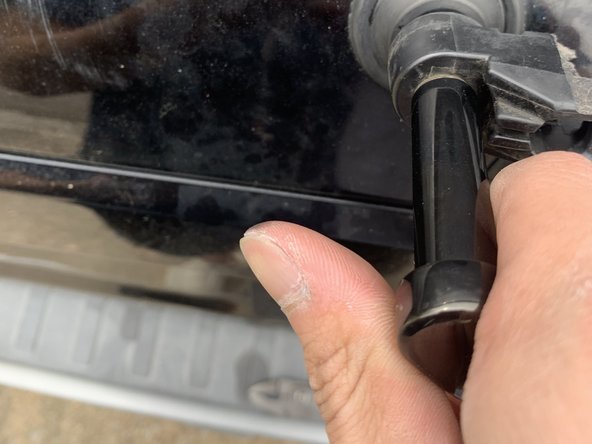

6. If the wiper arm is hard to remove, use a flat-head screwdriver for support.

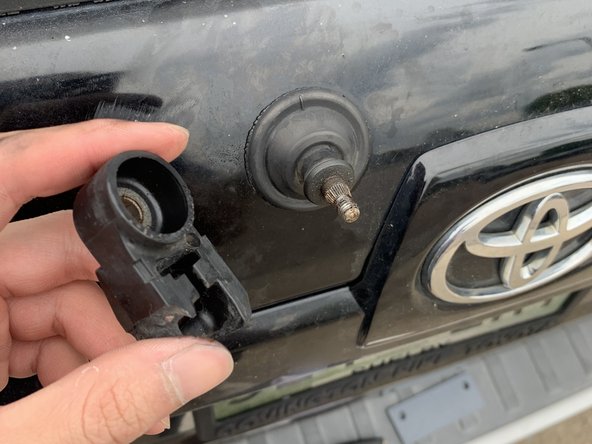

7. With the lug-nut removed, gently wiggle the arm out of the socket.

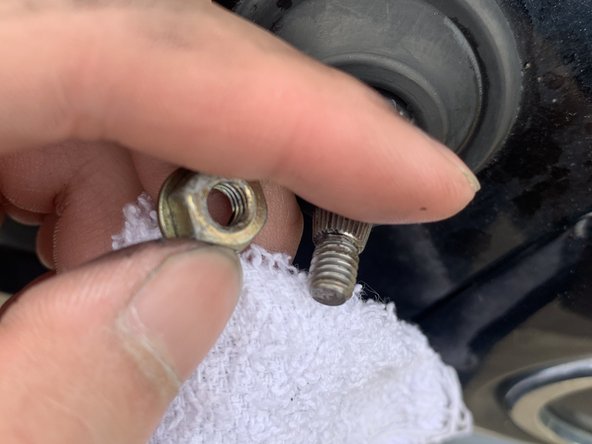

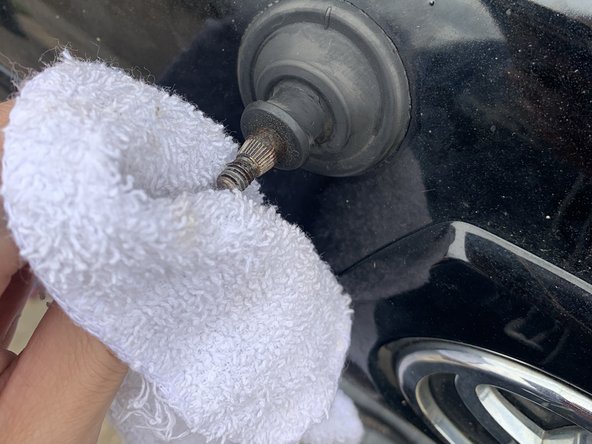

8. Once the wiper arm is pulled off, clean the thread and nut to ensure that both are clear of debris.

9. Place new wiper arm in socket.

10. Using the 10mm socket, tighten the nut in place.

11. Place plastic cover back on.
