Toyota Tundra 2nd generation (2007-2013) Tailgate Handle Replacement

ID: 132713

Description: In this guide you will be replacing the...

Steps:

1. Remove the Torx-head screws (23.2mm) on the inside panel of the tailgate, using the torx T25 screwdriver.

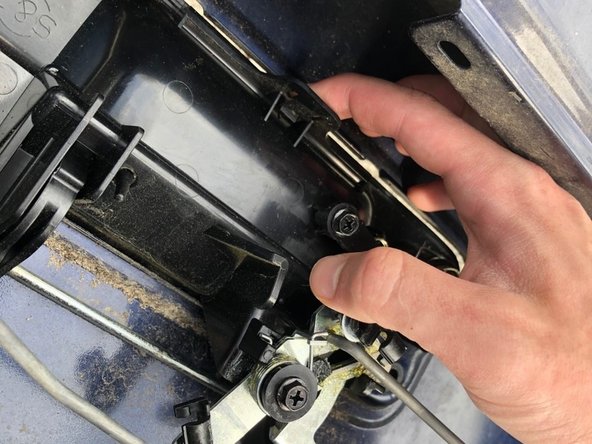

2. Pull off the panel and then pull cables inward, causing tailgate to release and go down.

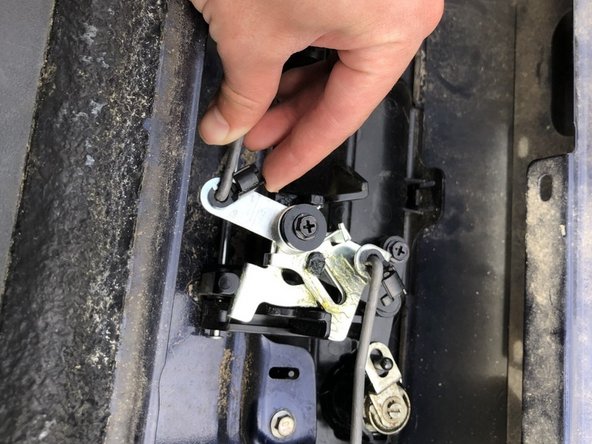

3. Remove rubber pieces from cable and pull cable from insert.

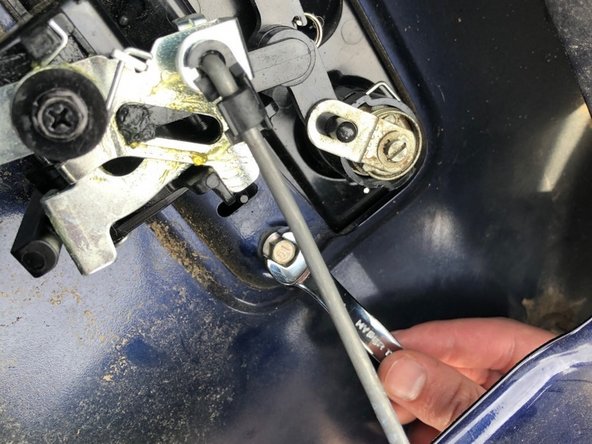

4. Use your 5/16th-in. wrench to turn bolt counter clockwise and remove the bolts (18.5mm).

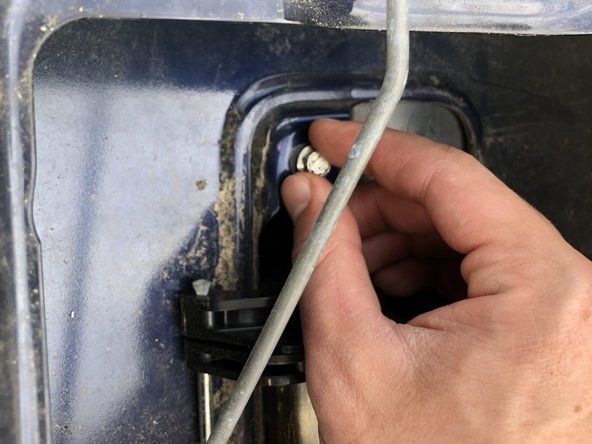

5. Push in black clip to let handle fall out.

6. Put new tailgate handle back in.

7. Hand twist in bolts; then tighten with wrench.

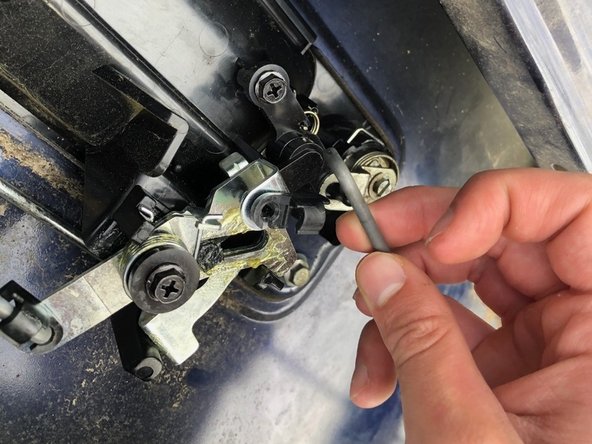

8. Insert cable back into socket and press rubber lock onto cable.

9. Put panel back into place and screw in using your torx -T25 screwdriver.
