How to Replace the GE Refrigerator Ice Dispenser Solenoid SN:GSL25IGXL LS

ID: 132846

Description: If you try to use the ice dispenser on a GE...

Steps:

  1. Turn off all power to the refrigerator before disassembling.
  2. Unplug the refrigerator to turn off the power. You can also turn off the power using the breaker panel.
    3. Step image
  3. First, remove the plastic trim. It is held in by six clips; you can use a pry tool or your hands.
    4. Step image

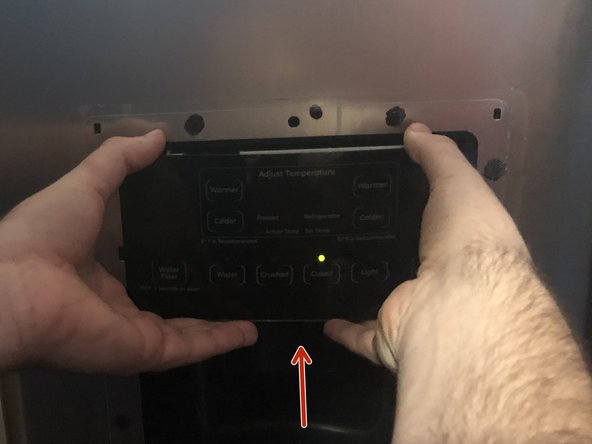

  4. Remove the dispenser interface by pushing up, then pulling the bottom out.
  5. This will reveal the wire harnesses that will be disconnected in the next step.
    6. Step image

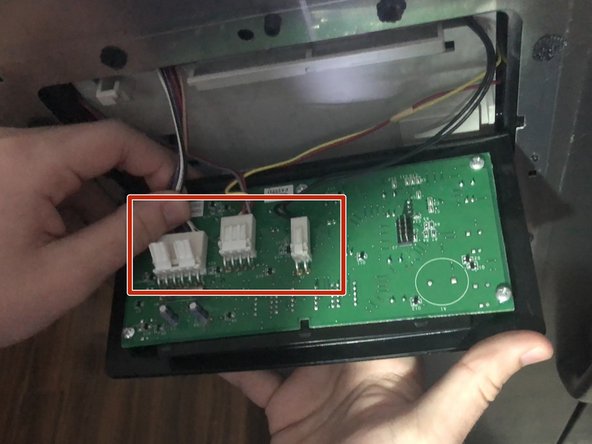

  6. Disconnect the three wire harnesses.
  7. They might be tight, so be careful when pulling on them.
  8. Once the wires are disconnected, set the interface aside.
    9. Step image

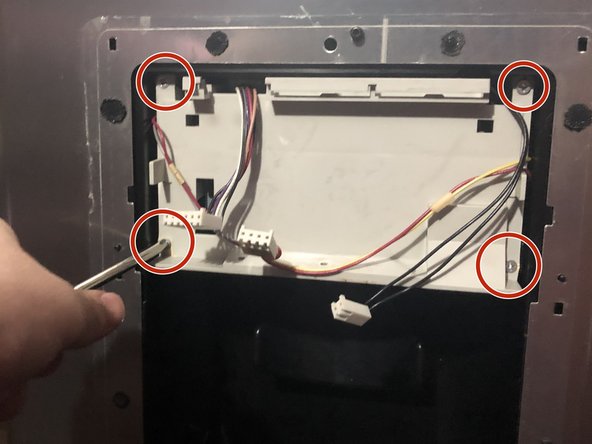

  9. Remove the four 3.8mm screws in each corner using a Phillips #0 screwdriver and remove the housing.
  10. Once it is removed, the solenoid will be exposed.
    11. Step image

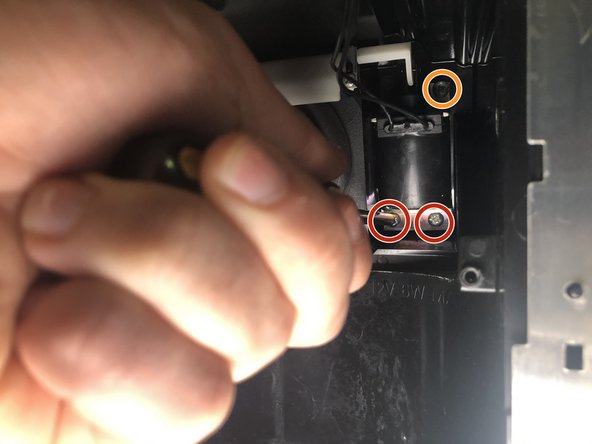

  11. Remove the bottom two 2.5mm Phillips screws first.
  12. Loosen the top Phillips screw and remove the solenoid.
  13. After this step is complete, replace the old solenoid and reassemble following the steps in reverse order.
    14. Step image
