Karcher Rotary Floor Cleaner 17833080 2017 Handle Removal

ID: 133047

Description: Follow this guide to remove the handle for the...

Steps:

1. Before you begin, make sure to power off and unplug the device.
2. Lift the tank by the handle and remove it from the device.

3. Press the yellow button near each wheel base to release the wheels.
4. Remove both wheels from their sockets.

5. Use a T20 driver to remove the three screws securing the pump cover.

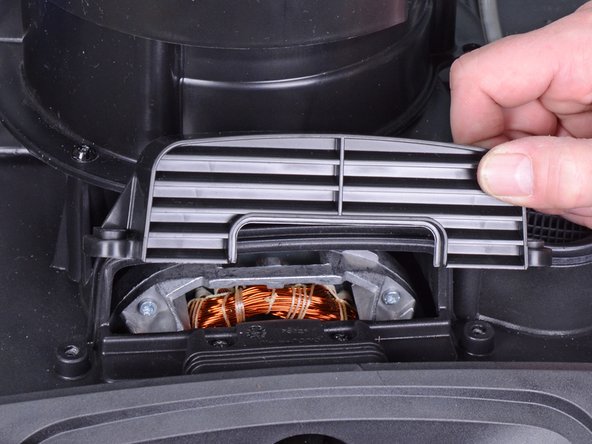

6. Remove the pump cover.

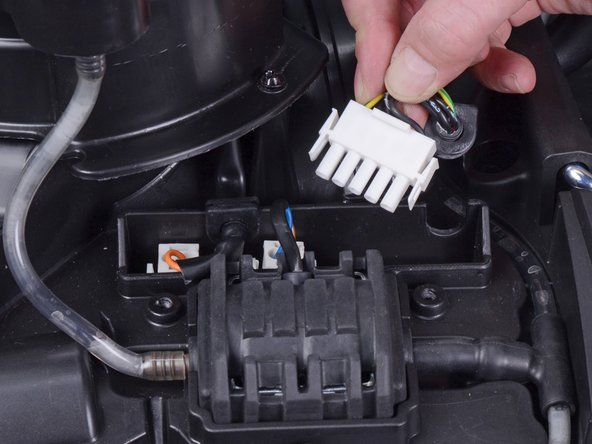

7. Squeeze the right plug by the edges and pull it out of its socket.
8. During reassembly, make sure that all plugs are firmly seated in their sockets.

9. Remove the following screws securing the left retaining bracket:
10. Four T40 screws
11. Two T20 screws

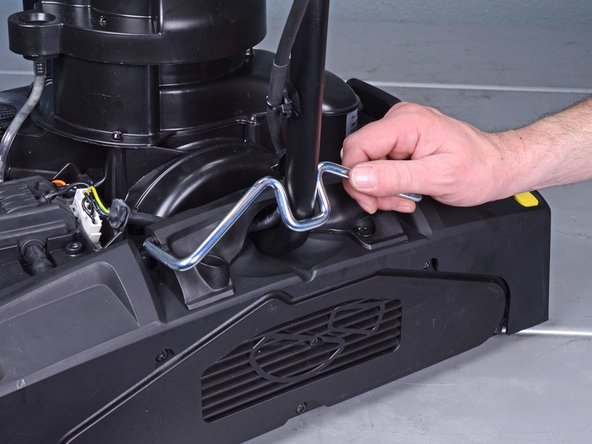

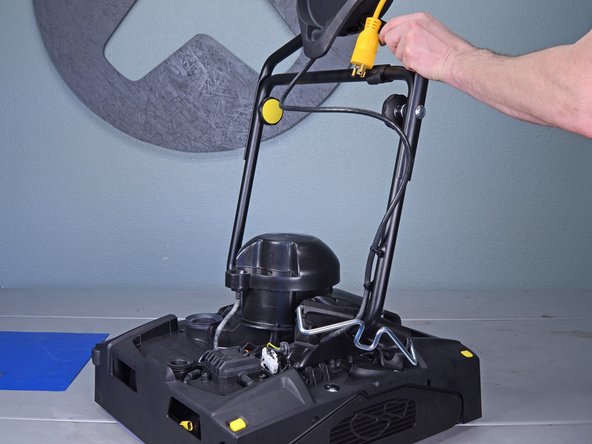

12. Raise the handle to the upright position.

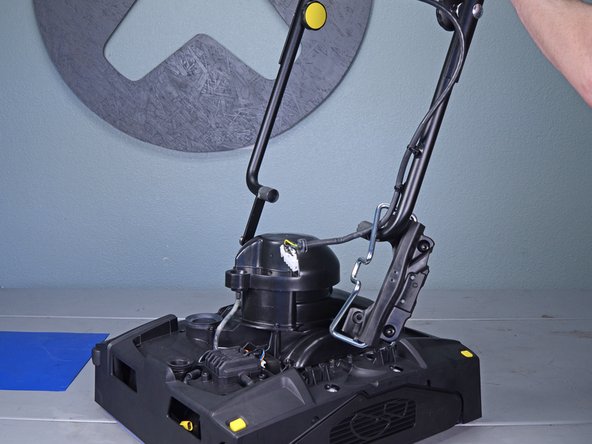

13. This will engage the carriage rollers and lift the device.

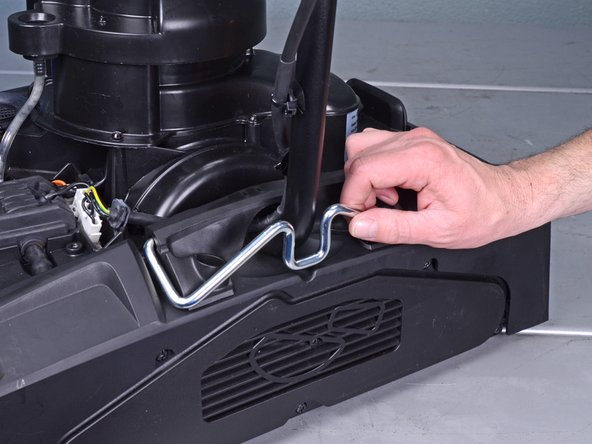

14. Engage the retaining bracket to lock the handle in place.

15. Use a T20 driver to remove the two screws securing the right splash guard.

16. Remove the right splash guard.

17. Use a T20 driver to remove the following screws securing the right retaining bracket:
18. Two 85 mm-long screws
19. Four 45 mm-long screws

20. Remove the right retaining bracket.

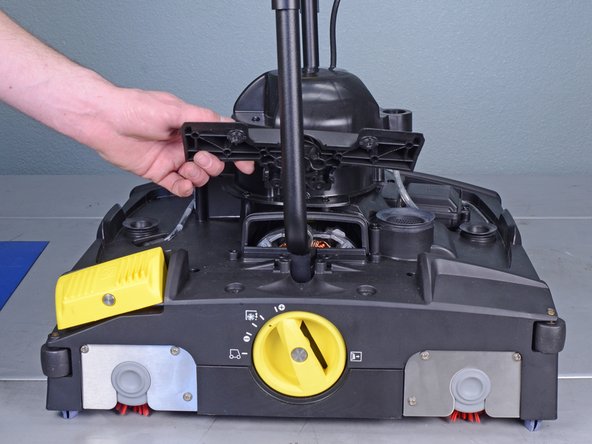

21. Lift the handle assembly away from the device and remove it.
