LG Electronics GSL 361 ICEZ Side by Side repair of the ice cube dispenser and control panel

ID: 133118

Description:

Steps:

1. Disconnect/unplug the refrigerator from the power supply!

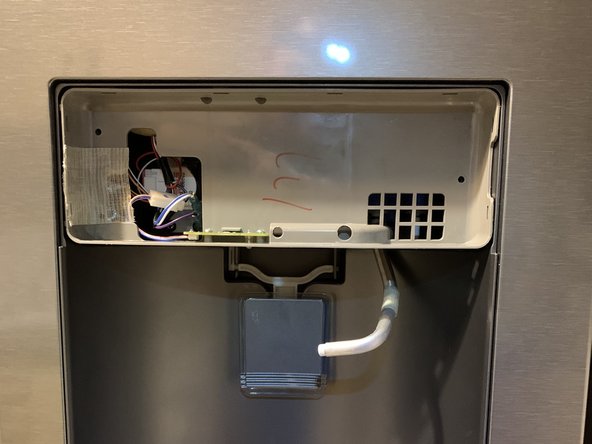

2. Use a spatula, knife, or other thin object to carefully apply to the underside of the control panel.
3. Remove the control panel with some force
4. A plug is attached to the back of the control panel, which must be removed.

5. Carefully open the marked lugs (break easily)
6. The cover can then be pulled off downwards/forwards. Carefully remove the water hose.

7. Remove the marked screws
8. Gently pull the shell forward. First unplug the connector (marked blue) on the back of the shell, then loosen the screw of the click button (marked red) and pull it off.

9. Open the brackets marked in red.
10. Open the ice lid.
11. Now turn the cover backwards over the horizontal axis and open the clip marked in blue.
12. Carefully pull the cover off the two springs.
