2011-2017 Honda Odyssey Key Fob Battery Replacement

ID: 136057

Description: The Smart FOB remote key design is identical...

Steps:

  1. Remove the mechanical key by moving the tab on back of key & pulling out the key.
    2. Step image

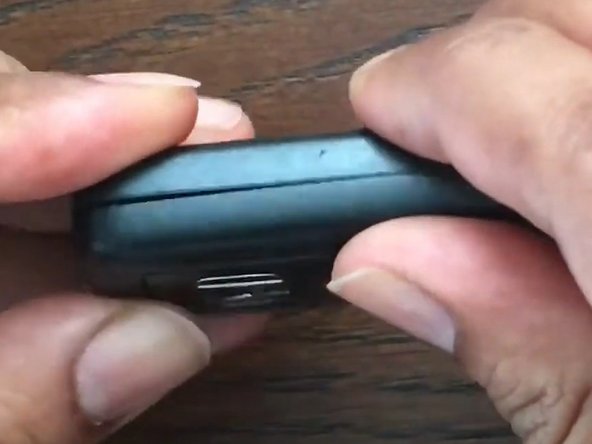

  2. Separate the shell using a large screw driver or by using the mechanical key. The shells have a separating tab in the middle. Pry open the shell by gently twisting the screwdriver or the mechanical key into the separating tab.
    3. Step image

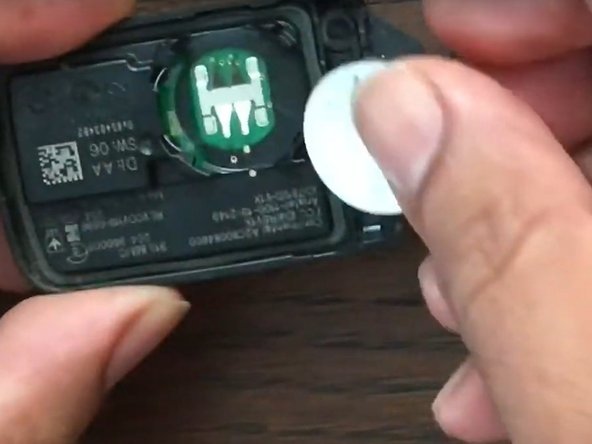

  3. Remove the battery carefully using a small screw driver.
    4. Step image
  4. Replace the battery. Make sure not to damage the 2 tabs holding the battery. Do not press or force the battery into its place, slide it underneath the tabs.
  5. Battery : Lithium Coin Battery CR2032 3V
    6. Step image
  6. Put the outer shell together and gently press and snap the two half's in place
    7. Step image
  7. Put the mechanical key back
    8. Step image
