How to Loosen the Main Cover for the Honda 3000 Watt Inverter Generator EU3000IS1AWK

ID: 136212

Description: This guide shows how to loosen the main cover...

Steps:

1. Use a 10 mm socket to remove the four capped nuts securing the rear cover.

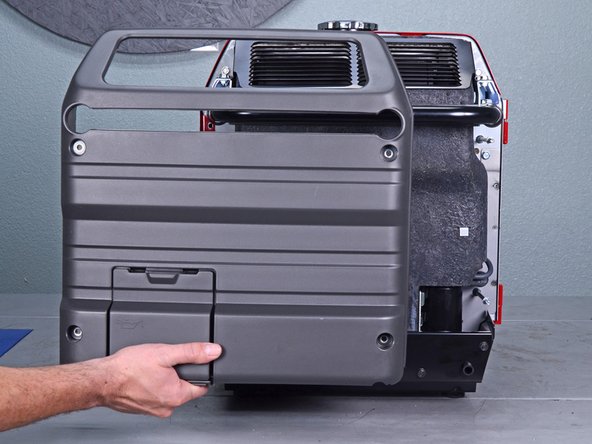

2. Remove the rear cover.

3. Use a 10 mm socket to remove the four bolts securing the muffler protector.

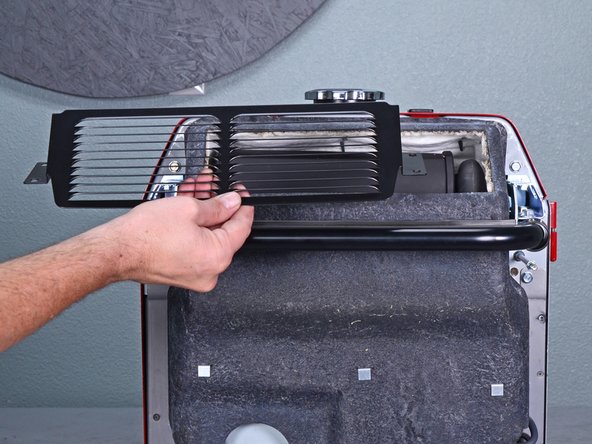

4. Remove the muffler protector.

5. Pull the muffler shroud slightly away from the frame to access the top frame bolts.

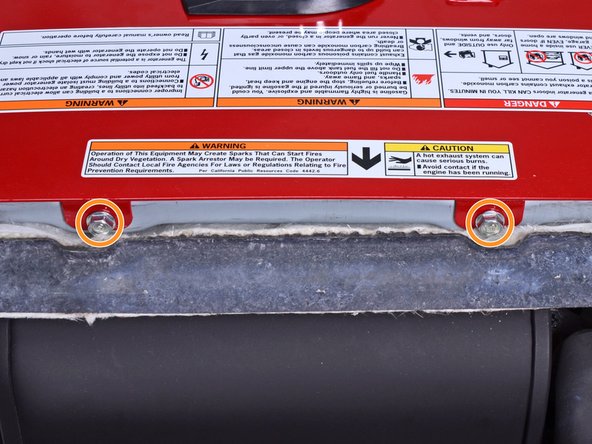

6. Use a 10 mm socket to remove the two bolts securing the top edge of the cover.

7. Use a 10 mm socket to remove the three bolts securing the front edge of the cover.

8. Use a 10 mm socket to remove the four bolts from the maintenance cover side.

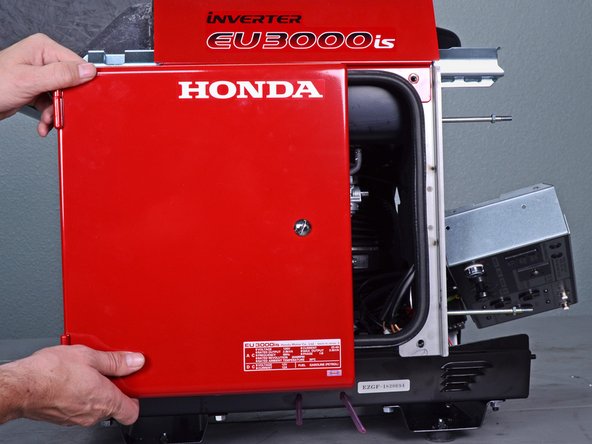

9. Remove the maintenance cover.

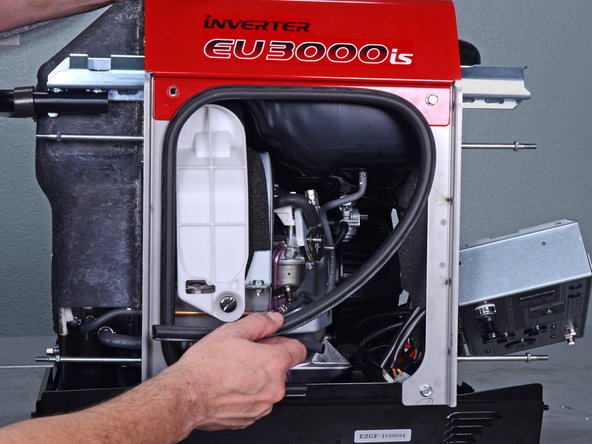

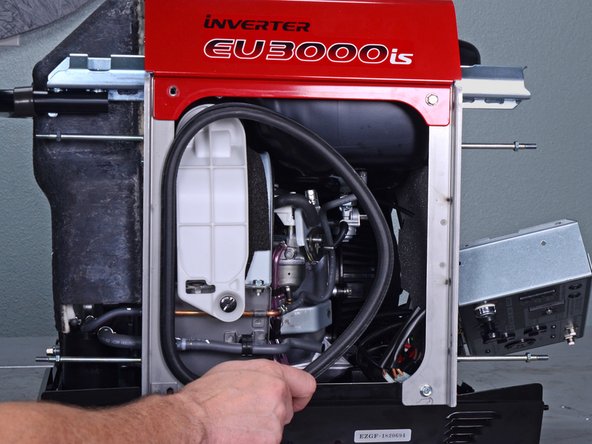

10. Carefully peel the maintenance cover seal from the frame.

11. Use an 8 mm socket to remove the two bolts securing the non-access side of the cover.

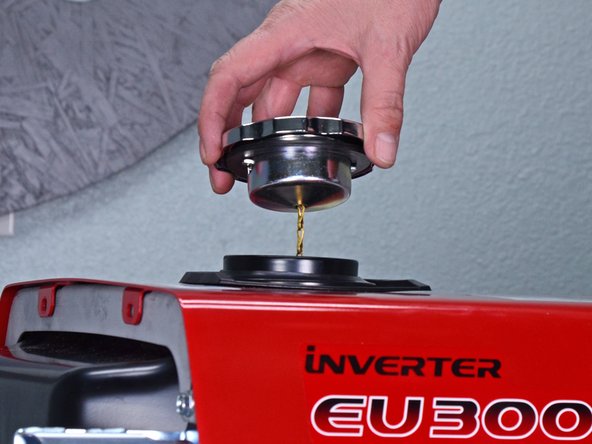

12. Unscrew the gas cap.

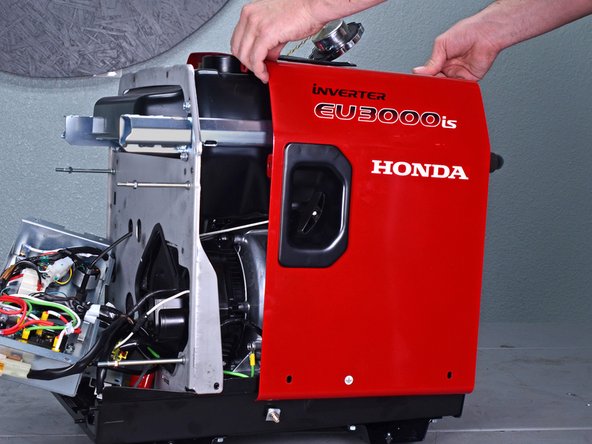

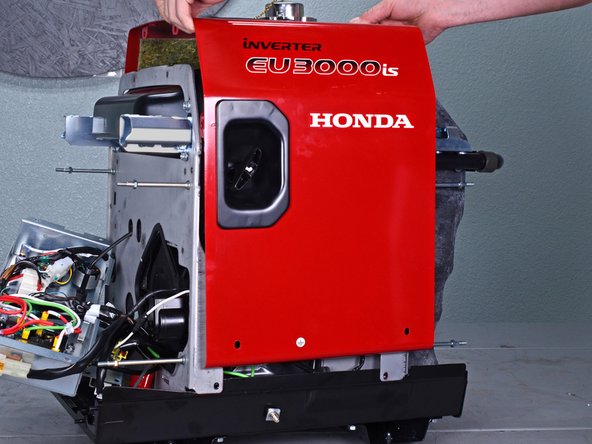

13. Lift the cover up slightly to free it from the frame and slide it back by a few inches.
