General Wire Drain Cleaner RSVD 2014 Front Assembly Replacement

ID: 136684

Description: Use this guide to remove or replace the front...

Steps:

1. Turn off the drain cleaner and disconnect it from power before beginning any maintenance.
2. Slide the rubber cable cover off of the end of the cable.

3. Use a flathead screwdriver to loosen the three screws around the edge of the front assembly.

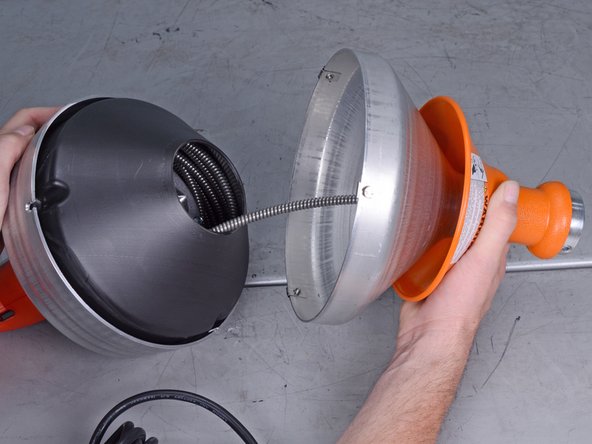

4. Pull the front assembly off of the drain cleaner and slide it over the cable to remove it.

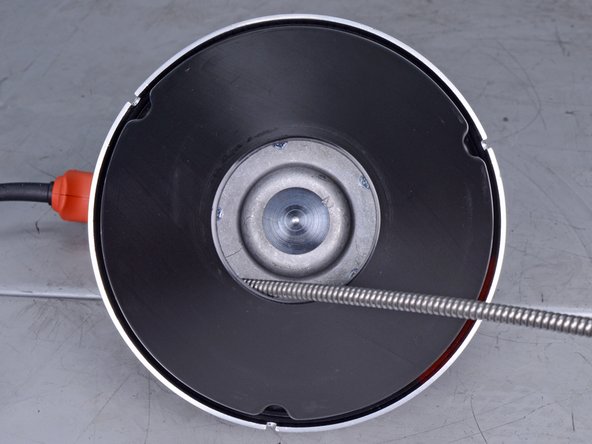

5. During reassembly, make sure the three screws on the front assembly line up with the slots on both the metal cable container back and the plastic cable container.
