Simoniz 3-in-1 Wand XE27-021-0090 Teardown

ID: 139702

Description: Simoniz told me to pound sand when I asked them...

Steps:

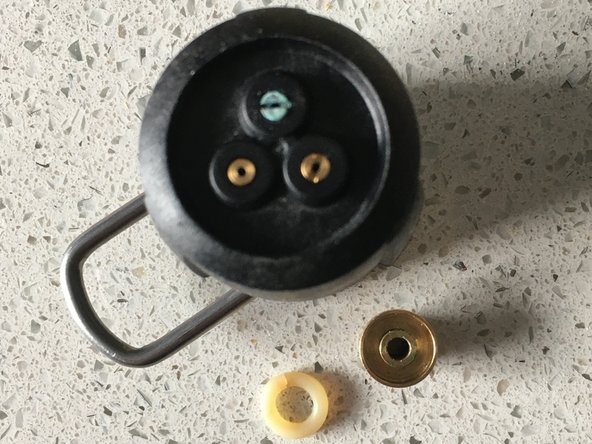

1. Pictured all labelled parts in exploded view and tools used.

2. Use punch and hammer to back out metal pins seen here.

3. Once this pin has been backed out far enough, remove it with channellock pliers. Careful, all internal parts tend to fall out once this pin has been pulled out.

4. Replace required part and reassemble. Use channellocks to pinch metal pin to fit it back in the holes. To properlly remove an o-ring, view the following video. For tough to remove o-rings, also pinch it with a cloth. https://www.youtube.com/watch?v=EDiDoJCf...
