Xiaomi Mi Curved Gaming Monitor 34" Disassembly

ID: 139834

Description:

Steps:

1. Lay the monitor down on a soft surface.
2. Remove the 6 philips size 1 screws along the bottom.

3. Pry off the bezel by carefully pulling away from the screen and down.

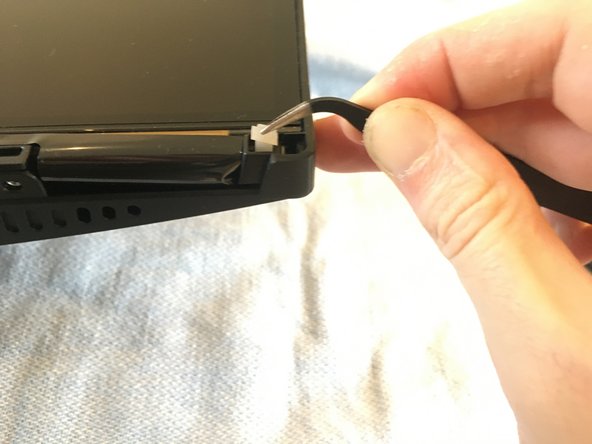

4. Take out the small plastic status led light conductor, so you won't lose it later.

5. Take out the six philps size 2 screws on the back.

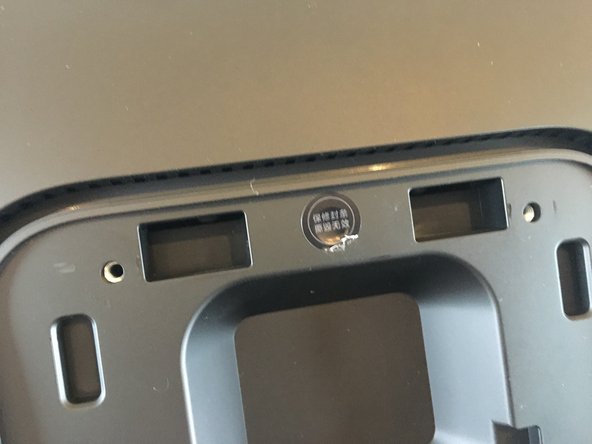

6. One is behind a warrenty sticker. Your warrenty will be void after removing this.

7. Insert your prying tool between the border piece and back shell. Pry the border outward, and slightly pull up on the back shell to disconnect the clips.

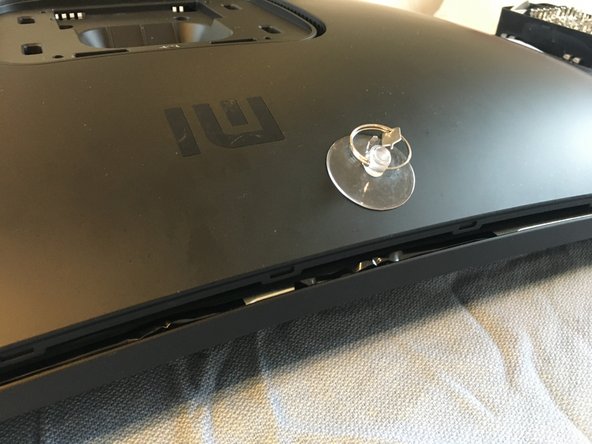

8. If you have a suction cup, that makes removing the top easier.

9. Set the panel up straight.

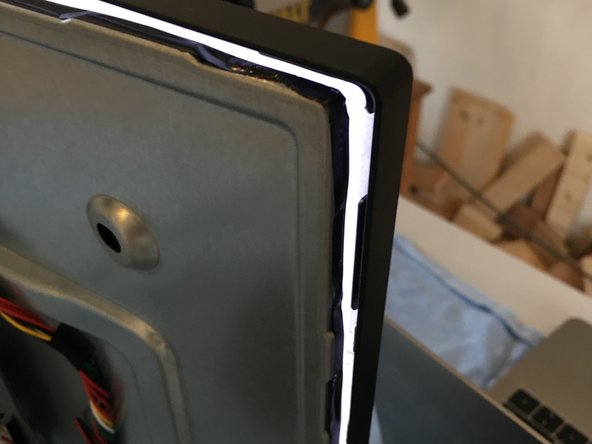

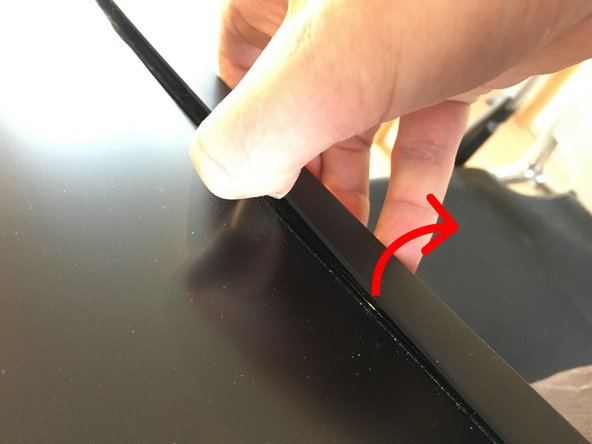

10. Pull the border slightly out and push it forward to release the plastic clips all around the edge.
11. It's easiest to start at the bottom right or left. You may need the prying tool again for the corner clips.
12. Be careful not to separate the layers too far as they are still connected at the bottom with fragile ribbon cables.
13. You'll be able to peek inbetween the layers to blow out dust or insects that got stuck there.

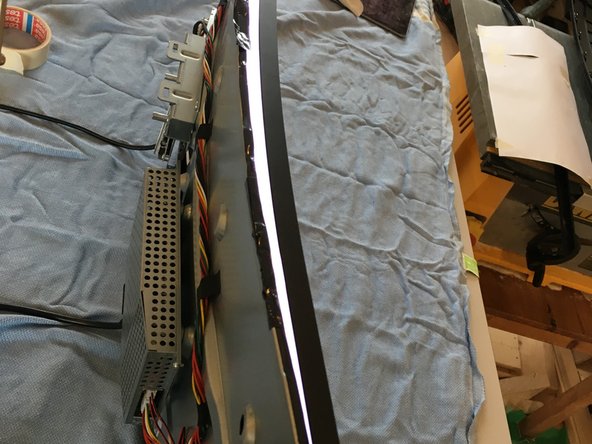

14. As you can see I had to turn on the monitor in this state to see the dust, but obviously this is not recommended.
