Nintendo Switch Rear Panel Replacement

ID: 139957

Description: Follow this guide to remove the rear panel from...

Steps:

1. Remove the four 6.3 mm Tri-point Y00 screws from the rear panel.

2. Remove the single 6.1 mm Phillips #000 screw from underneath the kickstand.

3. Remove the two 2.7 mm Phillips #000 screws from the bottom of the device.

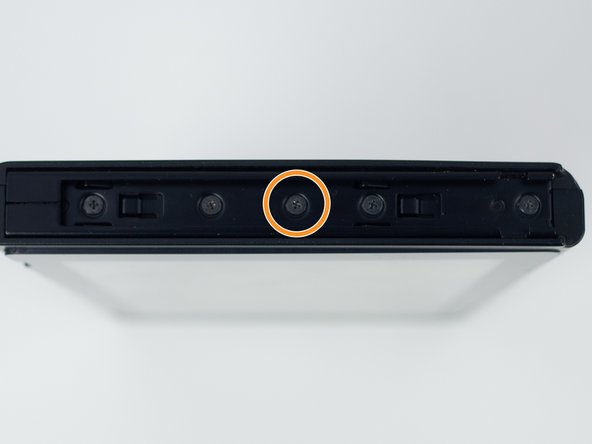

4. Remove the single 2.7 mm Phillips #000 screw from the top of the device.

5. Remove the single 3.8 mm Phillips #000 screw from the right Joy-Con rail.
6. Remove the single 3.8 mm Phillips #000 screw from the left Joy-Con rail.

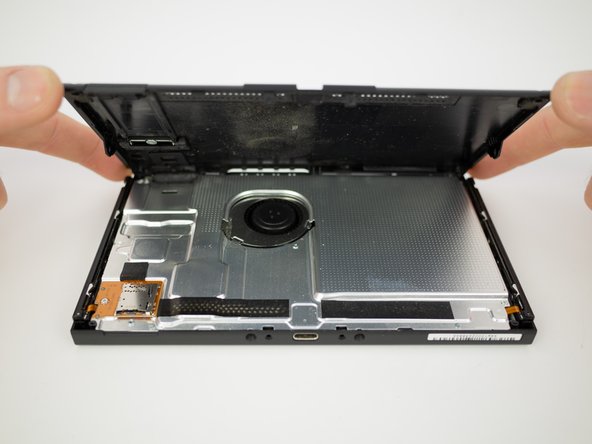

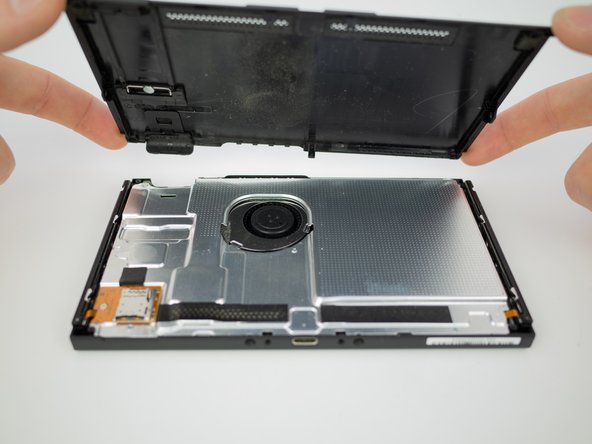

7. Pull the rear panel up and off of the device.
