How to Repair a Cracked Windshield

ID: 140069

Description: If you have a crack or dent on your vehicle’s...

Steps:

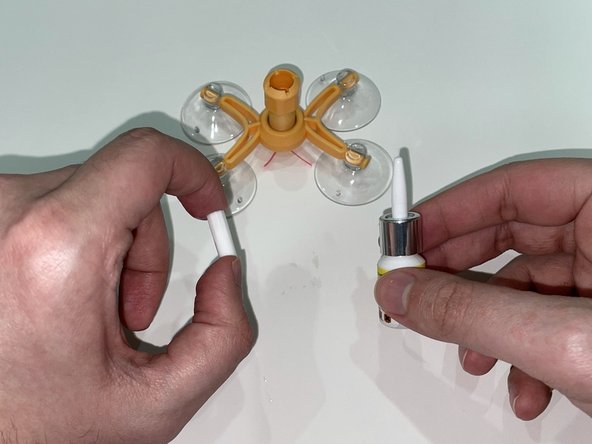

  1. Place the repair device so it is centered over the impact point.
  2. Step image

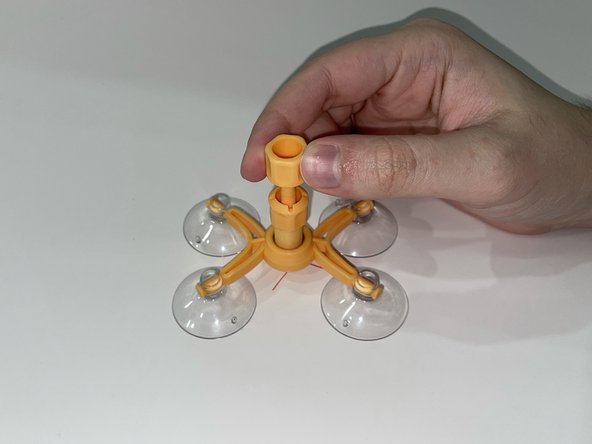

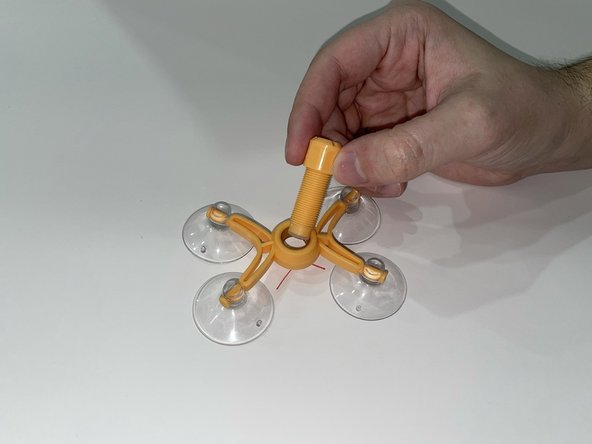

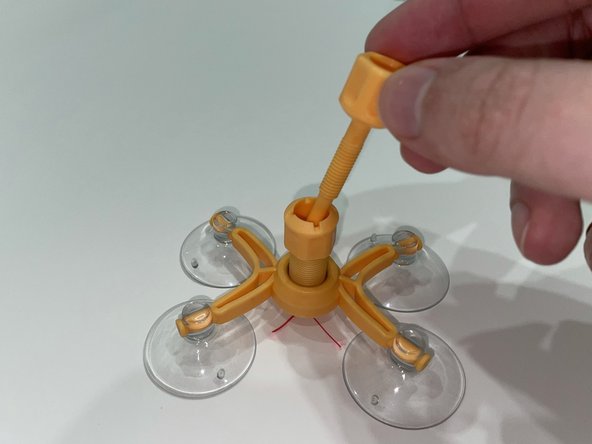

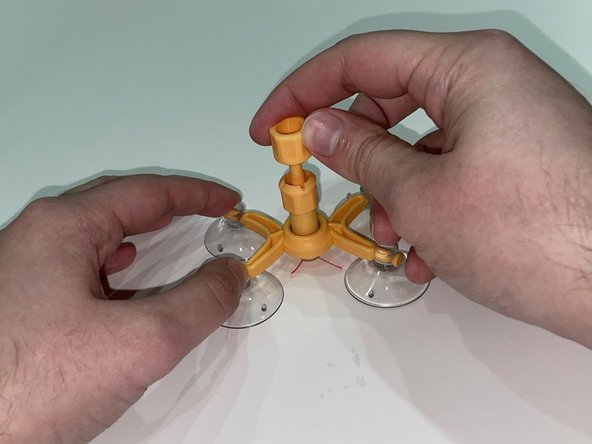

  3. Screw the resin chamber piece into the center ring until it makes contact with the impact point.
  4. Step image Step image Step image

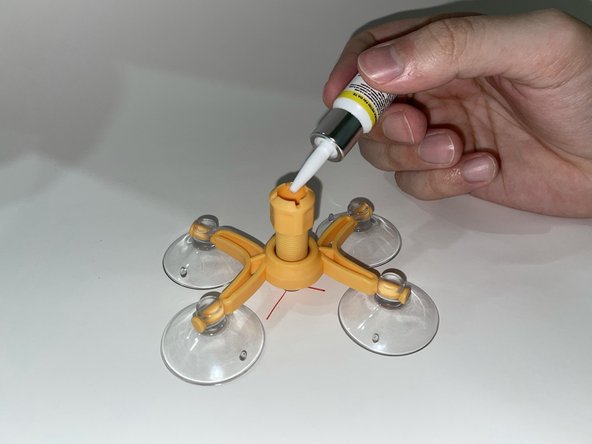

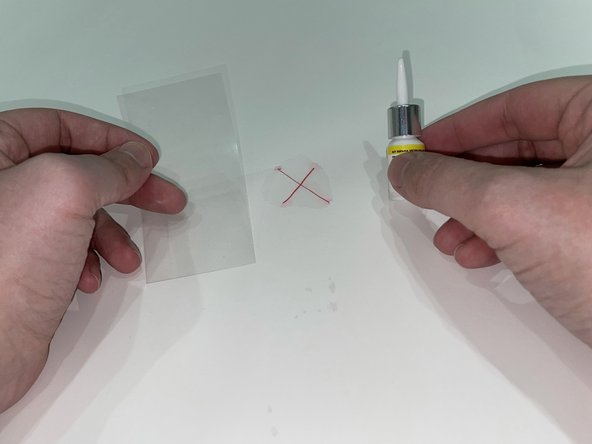

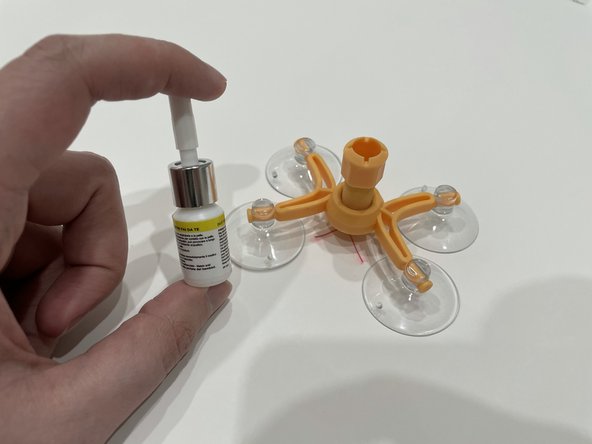

  5. Squeeze 3-6 drops of the repair resin into the resin chamber.
  6. Step image Step image Step image

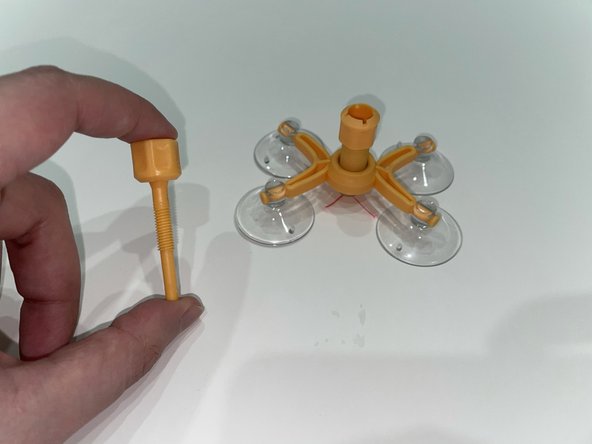

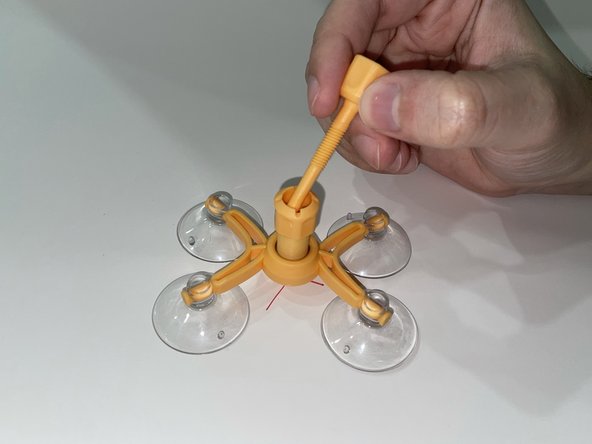

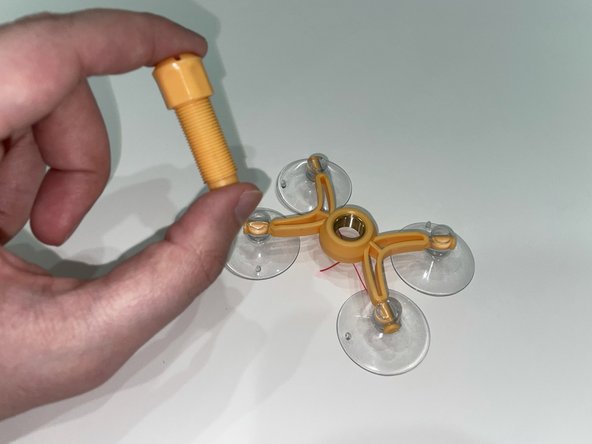

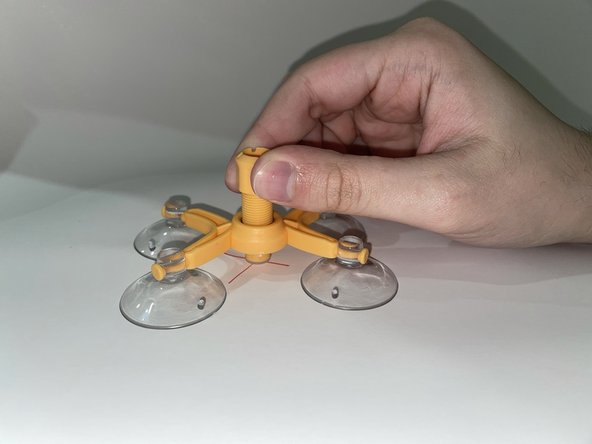

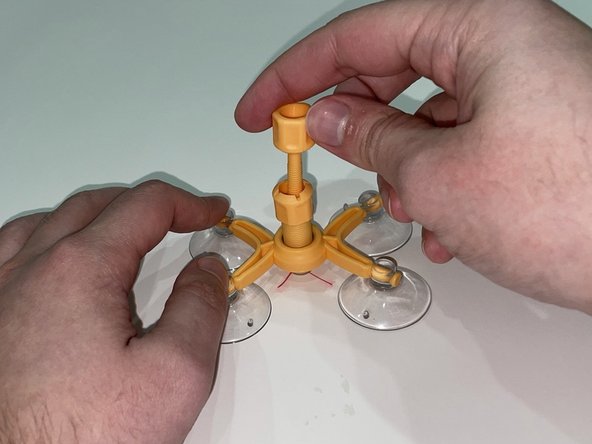

  7. Screw the pressure driver piece into the resin chamber to push the resin into the impact point.
  8. Wait 4-6 minutes.
  9. Step image Step image Step image
  10. Unscrew the pressure driver piece and remove it from the repair device.
  11. Verify that the repair resin has been absorbed by observing the impact point from the inside of the vehicle. If not repeat steps 4-5.
  12. Step image Step image Step image

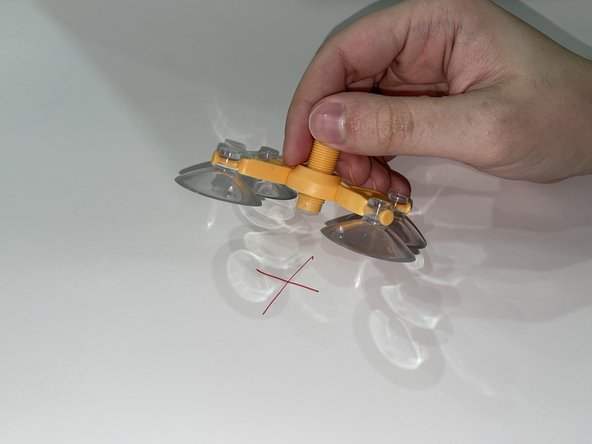

  13. Remove the entire repair device.

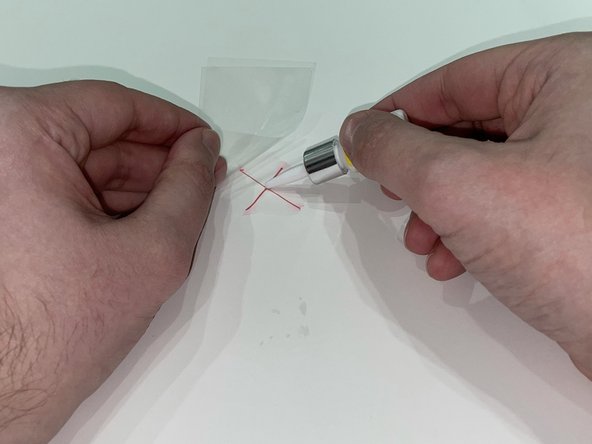

  14. Apply an additional drop or two of repair resin directly onto the impact point.
  15. Cover it with a curing strip.
  16. Wait 5-10 minutes to let it dry.
  17. Step image Step image Step image

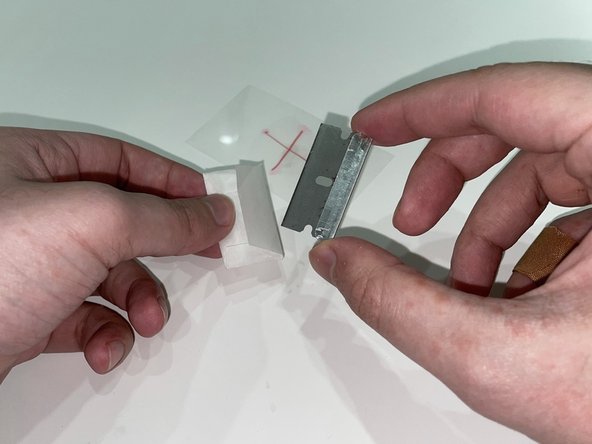

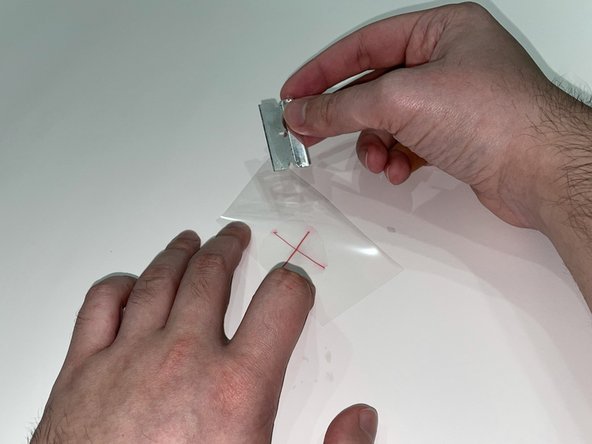

  18. Remove the curing strip by carefully scraping it off with the razor blade.
  19. Handle the razor blade carefully to prevent any injuries.
  20. Step image Step image
