How to Restring a Floyd Rose Bridge Guitar

ID: 140133

Description: Use this guide to restring any guitar with a...

Steps:

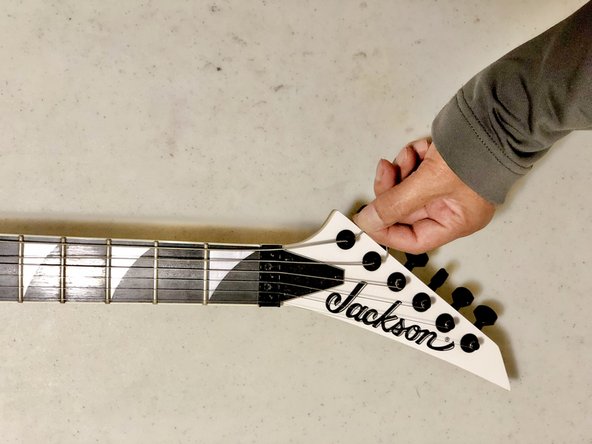

1. Unlock the double locking screws under the headstock using the hex key.

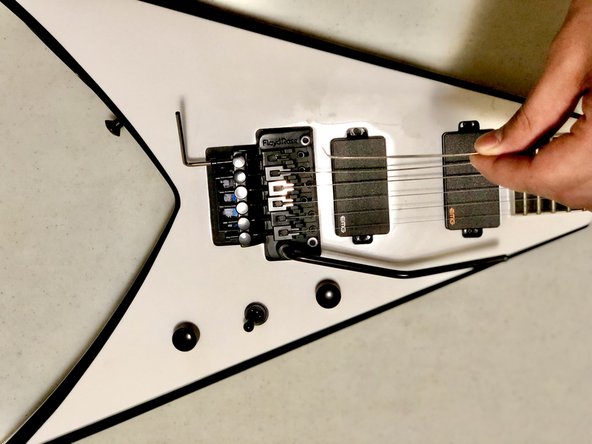

2. Tip the Floyd Rose Bridge forward by pushing down on the tremolo (whammy bar).

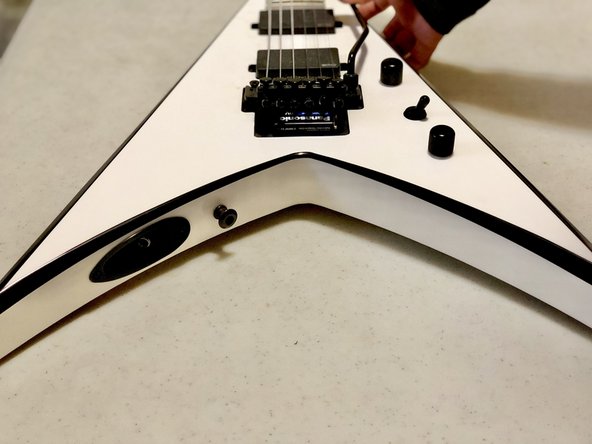

3. Place a 9V battery (or similarly shaped object) in to the cut-out space under the bridge to hold the bridge steady.
4. When the 9V battery is in its place, you can now let go of the tremolo (whammy bar) and the bridge will stay steady for the process.

5. Unwind the old strings using the string winder.

6. Loosen up the pegs that are below the fine tuners using the hex key, rotating counter-clockwise.
7. Gently pull the strings out of the block openings.

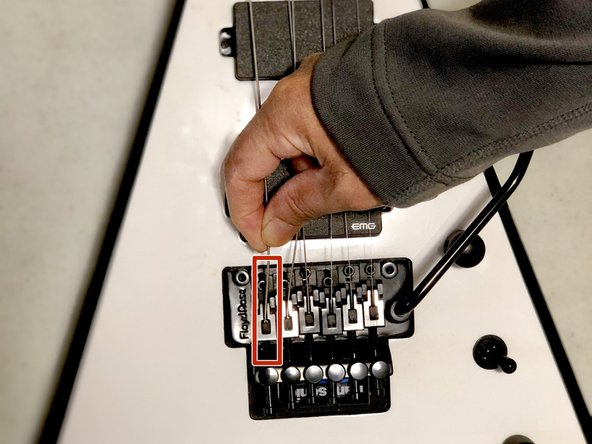

8. Insert the strings one by one in to their respected block openings on the bridge.

9. Tighten up the pegs below the fine tuners using the hex key, rotating clockwise this time.

10. Feed each string in through the tuners on the headstock.

11. Tune each string one at a time.

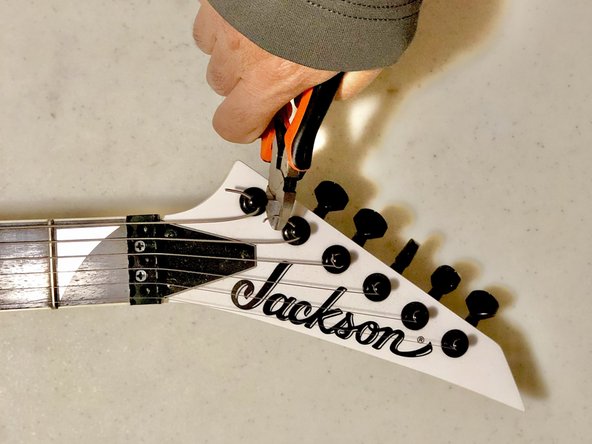

12. Cut the extra end of the strings after tuning using the wire cutter.
13. Finally, lock the double locking screws back using the hex key.
