How to Replace Hot and Cold Water Pipes for a Washer

ID: 140159

Description: The only thing you can't do is buy a washing...

Steps:

  1. Before starting this guide, shut off your water to the washer and dryer. In this guide, valves are used. Some newer setups may use levers.
  2. Mark the hot and cold water pipelines with a marker for proper visuals.
  3. Hot water
  4. Cold water
    5. Step image

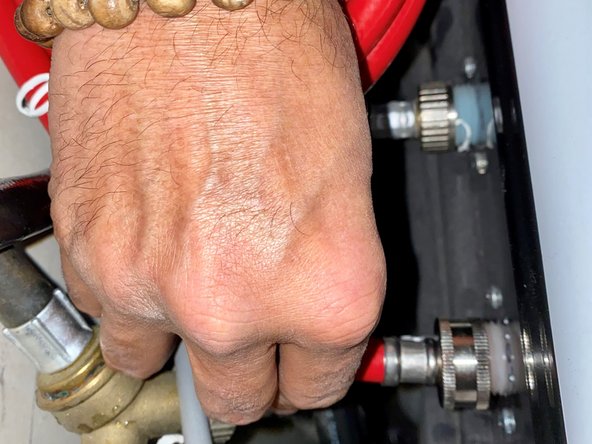

  5. Using an adjustable wrench, disconnect the pipes carefully from the water supply side and the washer side.
  6. After the pipes are disconnected, re-check the leakage and rust in the washer installation.
    7. Step image Step image Step image
  7. Rotate the adjustable wrench in a counter-clockwise direction to loosen the pipe connection.
  8. Make sure to remove the old white Teflon tape. Use a bucket and a piece of cloth for water damps from the connection.
    9. Step image
  9. Set up the new pipes to be installed.
  10. Check for blockage or any cracks in the valve.
    11. Step image

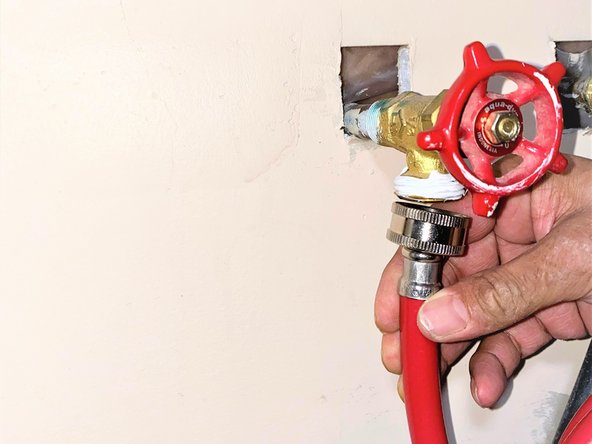

  11. Wrap the new piece of Teflon tape around the shut-off valve connection.
    12. Step image
  12. Install and connect the new pipes using an adjustable wrench.
    13. Step image Step image Step image
  13. Rotate the pipes in a clockwise direction to tighten up.
  14. Turn on the water supply. Perform a quick wash and check the connection.
    15. Step image Step image
